Southbend (Middleby) 4604CC-5R Ultimate Gas Ranges
Description
Southbend Ultimate 60" Gas Restaurant Range – 9-Burner / Dual-Cabinet Base

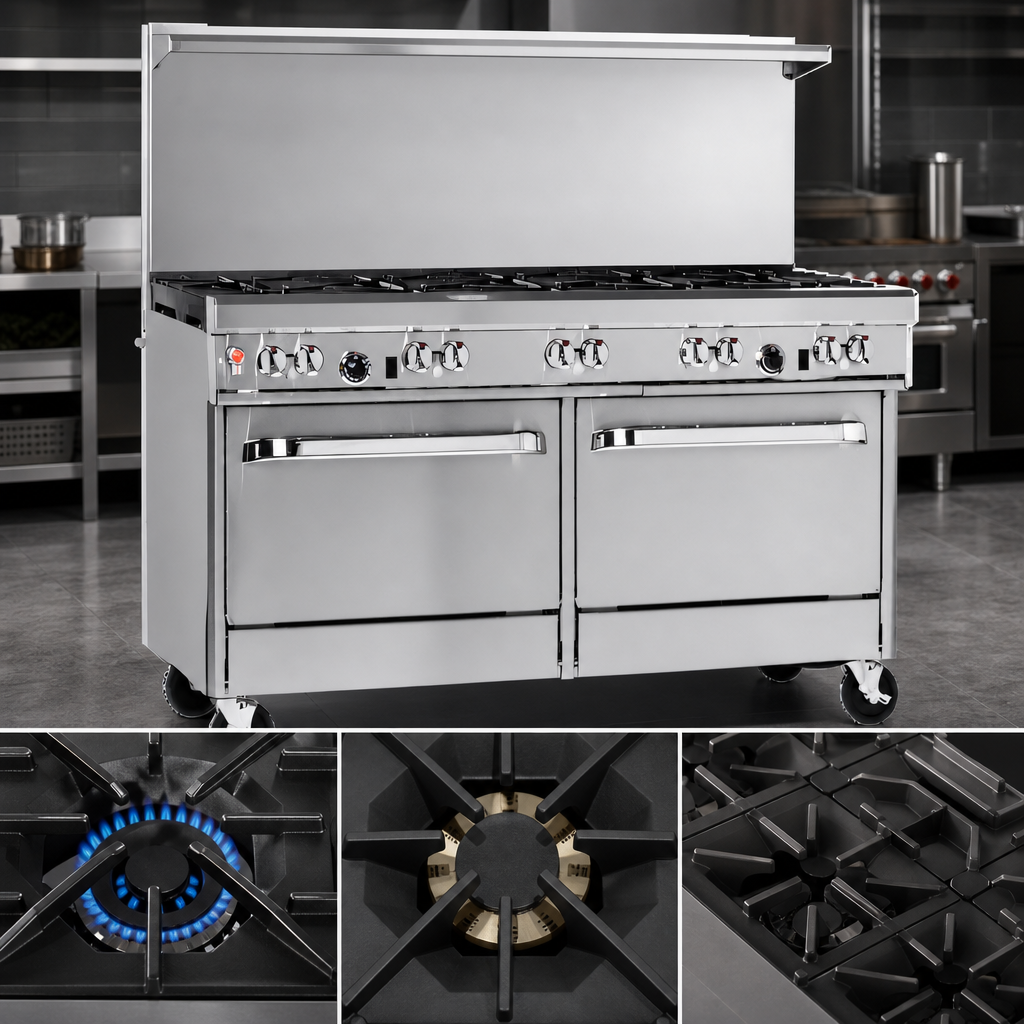

311,000 total BTU • CSA & NSF Listed • Model 460-CC (Custom Burner Mix)Engineered for kitchens that refuse to compromise, the Southbend Ultimate Series puts 311,000 BTU of precise, fast-acting heat at your command. A smart split top pairs high-output Pyromax burners with clog-free non-clog and even-heat star/ sauté burners, giving chefs the perfect tool for everything from rapid stock-pot boils to delicate pan work.
Why You’ll Love It
- Custom 9-burner layout – (3) 33 k BTU non-clog, (2) 40 k BTU Pyromax, (2) 33 k BTU star/ sauté, (2) 33 k BTU non-clog rear for balanced firepower and flexibility.
- Clog-free performance – Patented, one-piece cast-iron heads stay clear of debris for consistent flames and less downtime.
- Pyromax power zone – Two rear burners hit 40 k BTU each—ideal for woks, stockpots and lightning-fast recovery.
- Cool, durable front rail – 4" deep stainless rail keeps plating areas comfortable while resisting dents and scratches.
- 22½" flue riser with integrated shelf – Adds convenient pan storage without sacrificing ventilation.
- All-stainless exterior – Front, sides, shelf and 6" adjustable legs built to withstand daily commercial abuse.
- Dual stainless cabinets – Keep sheet pans, smallwares or dry goods within arm’s reach (doors available at no extra charge).
- Front-mounted manual gas shut-off plus factory-installed regulator for simple, code-compliant installation.

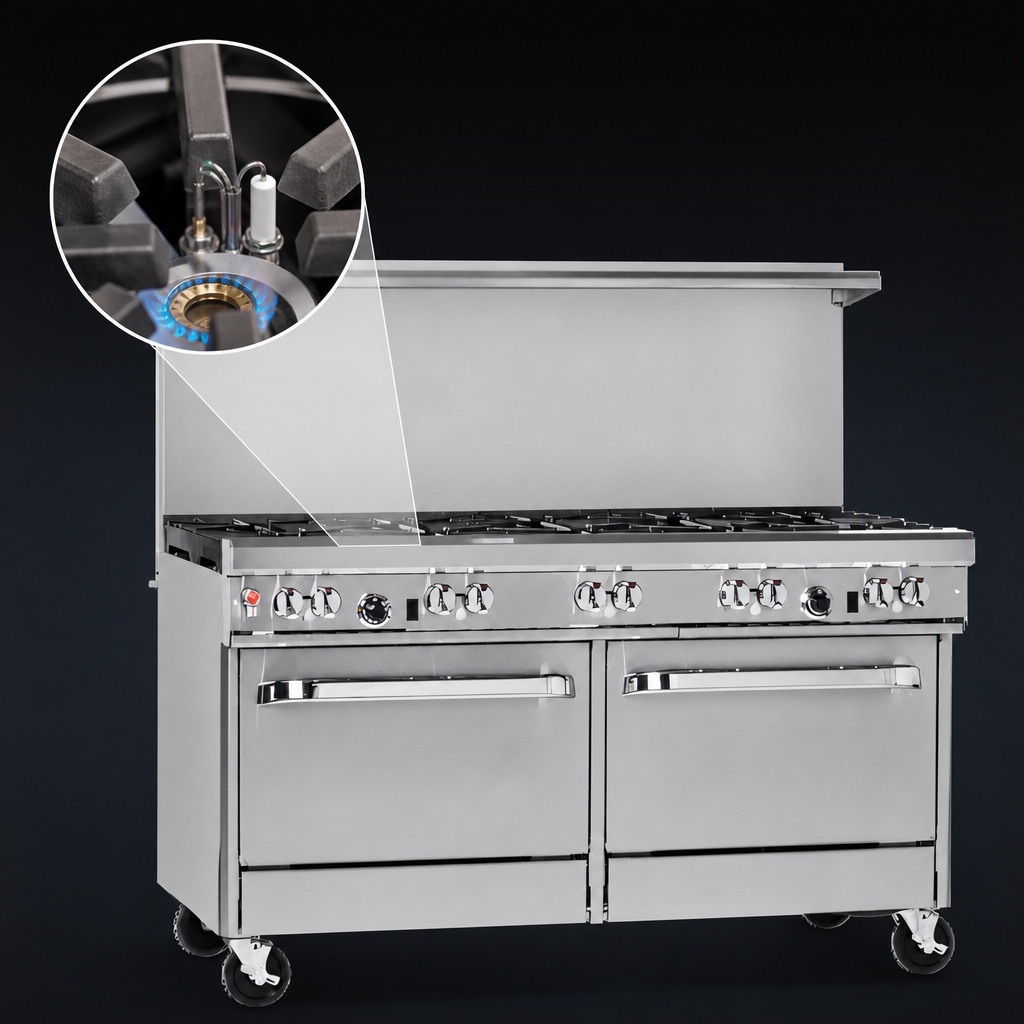

- Standing pilots for instant burner lighting; battery-spark ignition available for open tops if desired.
- 1-year parts & labor warranty backed by Southbend’s nationwide authorized service network.
At-a-Glance Specs
| Overall Width | 60 3/4" (1543 mm) |
|---|---|
| Overall Depth | 34" (864 mm) |
| Cooking Height | 37" (940 mm) to cooktop |
| Total BTU (Natural Gas) | 311,000 BTU/hr |
| Burner Configuration |
• 3 × 33 k BTU non-clog (front right) • 2 × 40 k BTU Pyromax (rear right) • 2 × 33 k BTU star/ sauté (front left) • 2 × 33 k BTU non-clog (rear left) |
| Gas Connection | 3/4" NPT (left or right side, factory positioned) |
| Minimum Inlet Pressure | 7" W.C. Natural • 11" W.C. Propane |
| Base | (2) open stainless cabinets |
| Flue Riser | 22 1/2" with heavy-duty storage shelf |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see warranty tab for details) |
Included With Your Range
- Factory pressure regulator
- Removable cast-iron top grates (rear grates accept up to 14" stockpots)
- (2) removable drip trays
- 6" stainless steel adjustable legs
Need casters, cabinet doors, or battery-spark ignition? Ask our team for factory-installed options.
Oversized cookware (12" +) should be used on rear burners to avoid excess heat on the front rail.
Installation on non-quarry tile floors may require additional steps; consult local codes and Southbend’s installation manual.
