Southbend (Middleby) 4604CC-5L Ultimate Gas Ranges
Description
Southbend Ultimate 60" Gas Restaurant Range – Custom 9-Burner Top & Dual Cabinets
Model 460 Series | 311,000 BTU | CSA & NSF Listed
Give your line cooks the firepower they crave without giving up the rugged reliability Southbend is famous for. This Ultimate Series 60" range combines three separate burner technologies, a built-in flue-shelf, and spacious cabinet storage in one stainless-steel workhorse.
Why It Belongs on Your Line

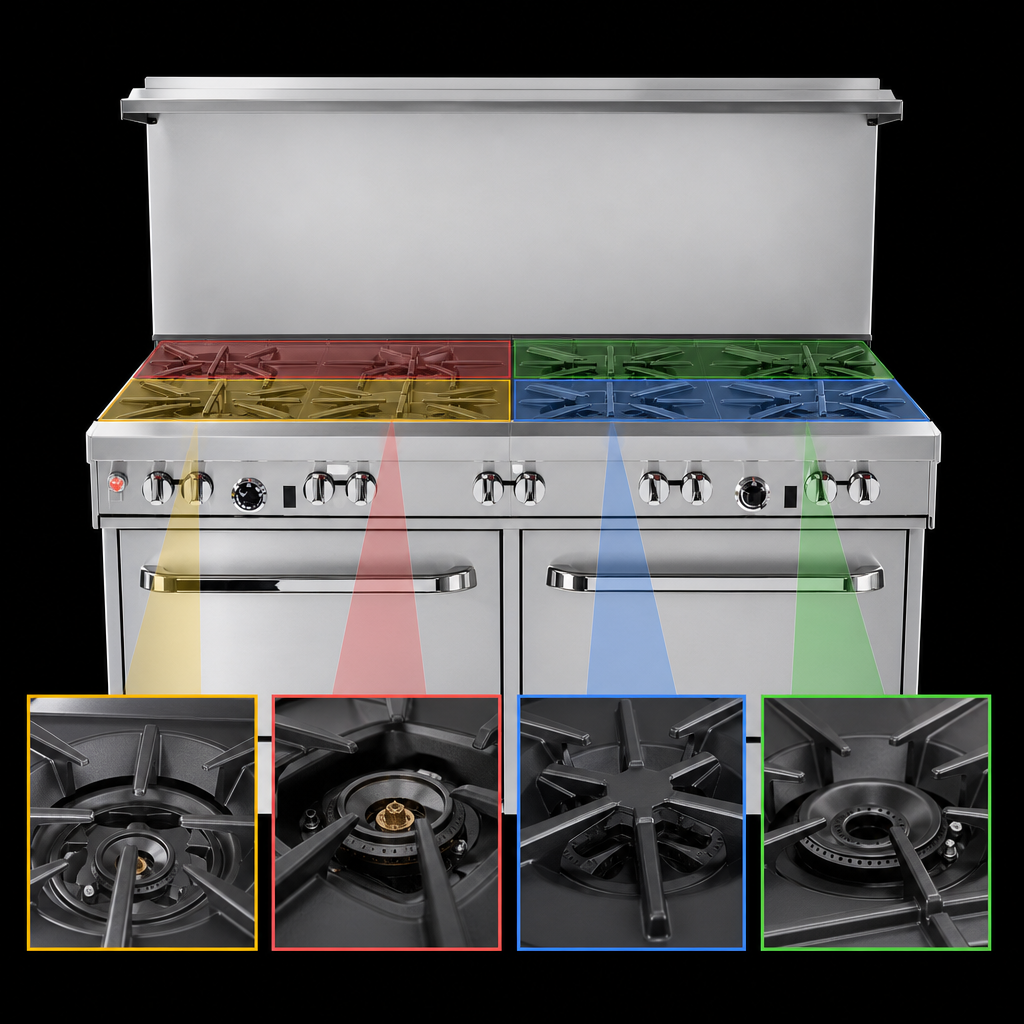

- Custom burner mix: 3× non-clog burners (front L), 2× 40 k BTU Pyromax power burners (rear L), 2× star/sauté burners (front R), and 2× non-clog burners (rear R) for a total of 9 open positions.
- Massive heat output: 311,000 BTU/hr handles everything from rapid boils to low-simmer sauces.
- Lifetime clog-free cast iron grates: each removable section accepts stock pots up to 14".

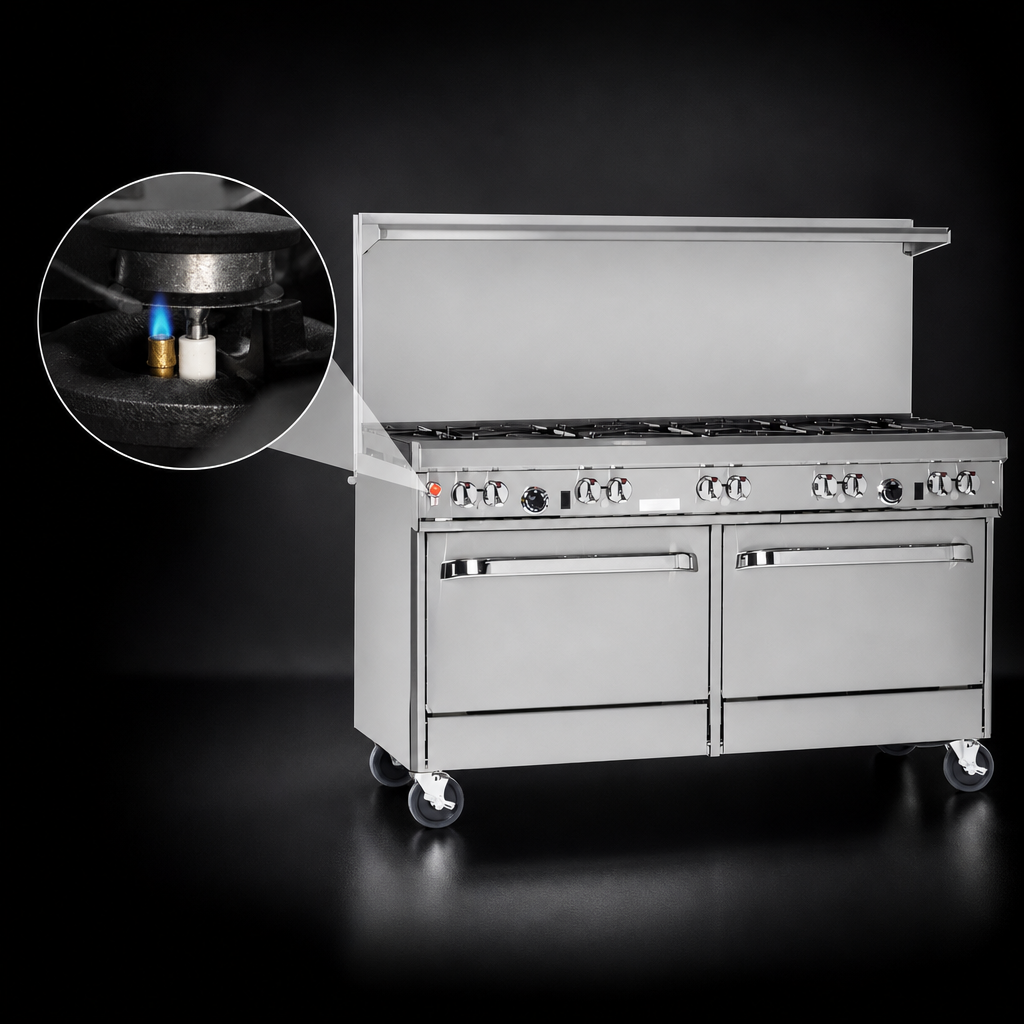

- Front-mounted gas shut-off plus standing pilots for instant ignition.
- 22-½" flue riser with heavy-duty shelf keeps pans hot and spices within arm’s reach.
- Two full-width stainless cabinets below (factory-installed doors available at no charge).
- All stainless exterior & 6" adjustable legs for quick cleanup and easy leveling.
- Factory regulator & ¾" gas connection simplify installation.
Performance Burner Line-Up
| Location | Burner Type | BTU (Natural Gas) |
|---|---|---|
| Front Left (3) | 33 k Non-Clog Cast Iron | 99,000 |
| Rear Left (2) | 40 k Pyromax High-Output | 80,000 |
| Front Right (2) | 33 k Star/Sauté | 66,000 |
| Rear Right (2) | 33 k Non-Clog Cast Iron | 66,000 |
| Total | 311,000 BTU |
Built for the Rush
- 37" high, 27"-deep cooking surface puts pans at an ergonomic height.
- 4" stainless front rail stays cool and doubles as a plating ledge.
- Double-sided, full-porcelain drip trays slide out for fast cleaning.
- Optional all-swivel locking casters available for mobile kitchens.
Technical Specifications
| Cooktop Width | 60.75" |
|---|---|
| Depth | 34" |
| Cook Surface Height | 37" |
| Overall Height (with flue) | 59.5" |
| Open Burners | 9 total (see lineup above) |
| Total BTU | 311,000 BTU/hr |
| Gas Inlet | ¾" NPT, natural gas (7" W.C. min) |
| Base Configuration | (2) stainless open cabinets |
| Construction | Stainless front, sides, shelf & 6" adjustable legs |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (commercial use) |
For commercial installation only. Doors for cabinet base are available upon request at no additional charge. Installing on non-quarry tile floors or using oversized cookware on the front row may void warranty—see Southbend policy for details.
