Southbend (Middleby) 4604CC-3GR Ultimate Gas Ranges
$12,100.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) 4604CC-3GR Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4604CC-3GR Ultimate Gas Ranges
$12,100.00
Unit price
/
Unavailable
Description
Southbend “Ultimate” 60" Gas Restaurant Range
2 Star/Sauté Burners • 2 Non-Clog Burners • 36" Right-Side Griddle • Dual Cabinet Base • 196,000 BTUBuilt for kitchens that demand maximum versatility in a single footprint, the Southbend Ultimate Range delivers open-top firepower, a full-size griddle, and extra-large storage—wrapped in the legendary durability operators have trusted since 1898.
Why You’ll Love It

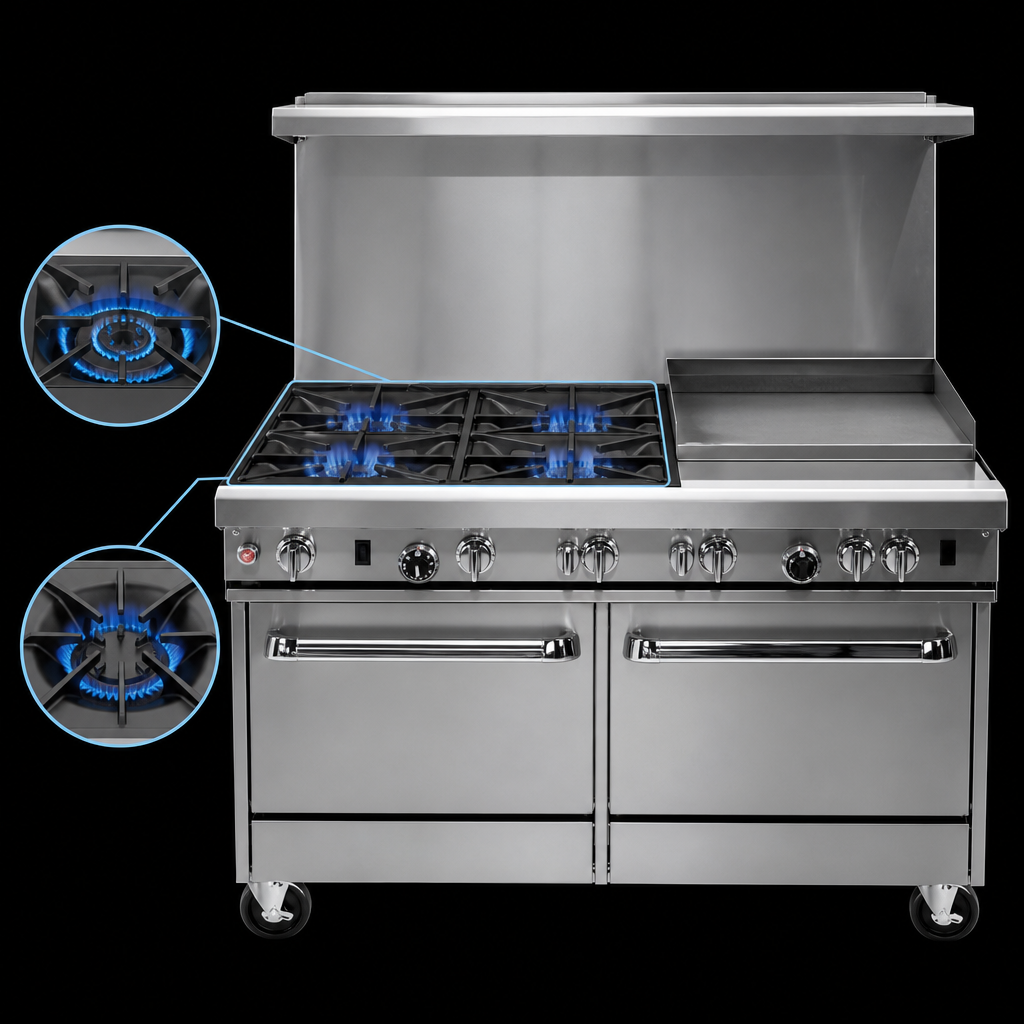

- 4 Heavy-Duty Open Burners – front (2) 33 K BTU star/sauté burners for rapid pan work; rear (2) 33 K BTU non-clog burners sized for stock pots up to 14".
- 36" Polished Steel Griddle (Right-Side) – ½" thick plate, 64 K BTU total input, raised sides to contain splatter, and a full-width grease trough for easy cleanup.
- Dual Stainless Cabinet Base – keep sheet pans, lids, and smallwares tucked away yet close at hand; doors available at no extra charge.
- Integrated 22½" Flue Riser & Shelf – perfect for holding spices, squeeze bottles, or resting pans.
- 4" Deep Front Rail – sturdy landing ledge for plating or utensil staging.
- Removable Cast-Iron Grates & Two Full-Width Drip Trays – speed nightly cleaning and reduce downtime.
- Front-Mounted Gas Shut-Off & Factory Regulator – fast, safe service access.
- All Stainless Exterior – front, sides, shelf & 6" adjustable legs resist corrosion and wipe down in seconds.
- Certified & Backed by Southbend – cCSAus, CSA Flame, CSA Star & NSF listed; includes a 1-year parts & labor warranty.
At-A-Glance Specs
| Overall width | 60 3⁄4" |
|---|---|
| Cooking surface depth | 27" |
| Work height | 37" |
| Open burners | (2) 33 K BTU star/sauté (front) | (2) 33 K BTU non-clog (rear) |
| Griddle plate | 36" W × ½" thick polished steel, 64 K BTU |
| Total input | 196,000 BTU/hr (natural gas or LP) |
| Gas connection | ¾" NPT (opposite the griddle side) |
| Minimum inlet pressure | 7" W.C. NG | 11" W.C. LP |
| Flue riser | 22½" with heavy-duty shelf |
| Base | Two stainless storage cabinets |
| Legs | 6" stainless, adjustable (casters optional) |
| Approx. shipping weight | ≈ 1,075 lb |
| Warranty | 1-year parts & labor (see full terms) |
Full warranty details and service network information available at southbendnc.com.
For Commercial Use Only: Install under a properly sized vent hood. 6" legs or casters are required on
combustible floors. If installing on non-quarry tile flooring, contact the factory for approved options.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, cCSAus, CSA Star, CSA Flame
Height
59.5in
Width
60.75in
Depth
34.0in
Shipping Weight
1075.0lbs
Vent
backriser with hi-shelf
Top
(4) open burners, (1) 36" griddle
Base
(2) cabinets
Exterior Finish
stainless steel front & sides
Plate Thickness
.500" = 1/2"
Specifications
Ultimate Restaurant Range, gas, 60", (2) star/sauté burners front, (2) non-clog burners rear, standard grates, (1) 36" griddle right, (2) cabinets, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 196,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
