Southbend (Middleby)  |  Ultimate  |  SKU: 4604CC-3CR

Southbend (Middleby) 4604CC-3CR Ultimate Gas Ranges

$14,789.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

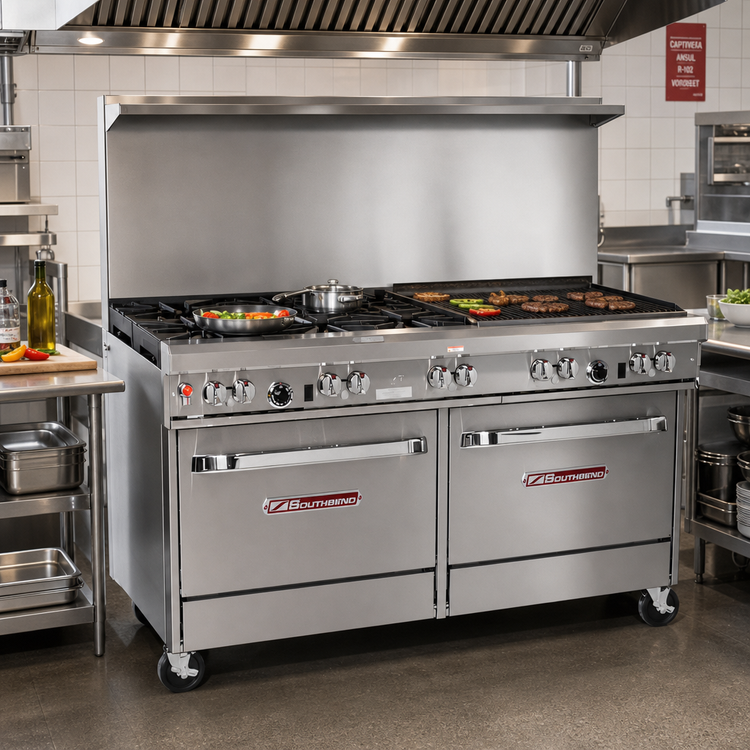

Southbend Ultimate 60″ Gas Restaurant Range | 36″ Right-Side Charbroiler

2 Star/Sauté + 2 Non-Clog Burners • Storage Base • 228,000 BTU

Built for kitchens that never slow down, the Southbend Ultimate 60″ range combines lightning-fast open-top cooking, a powerful 36″ charbroiler, and generous under-counter storage — all in one rugged, stainless steel workstation.

Highlights

  • 60-3/4″ wide restaurant range with 37″ high cooking surface
  • (2) 33,000 BTU cast-iron Star/Sauté burners (front row) for rapid, even heat
  • (2) 33,000 BTU lifetime Non-Clog burners (rear row) — perfect for stock pots up to 14″
  • 36″ charbroiler (right) – 96,000 BTU with heavy-duty cast-iron grates for steak-house sear marks
  • Dual stainless steel cabinet bases keep sheet pans, utensils, or dry goods within reach
  • 22-1/2″ flue riser with integrated plate shelf for holding and finishing
  • 4″ deep stainless front rail plus two full-width drip trays for easy clean-up
  • Front-mounted manual gas shut-off and factory-installed regulator
  • 6″ stainless steel adjustable legs (casters optional)
  • Fully welded stainless front, sides, and shelf; CSA & NSF listed

At-a-Glance Specs

Total BTU Input 228,000 BTU/h (Natural or LP)
Open Burners 2 × 33 k (Star/Sauté) + 2 × 33 k (Non-Clog)
Charbroiler 36″ right side, 96,000 BTU, cast-iron grates
Cooking Surface 60-3/4″ W × 27″ D
Overall Dimensions 60-3/4″ W × 34″ D × 59-1/2″ H (with riser)
Cooking-Top Height 37″
Base 2 stainless steel storage cabinets
Gas Connection 3/4″ NPT (rear); 7″ W.C. NAT / 11″ W.C. LP inlet pressure
Warranty 1-year parts & labor, factory-installed regulator included
Certifications CSA, NSF

Why Operators Love It

  • Split burner configuration lets sauté cooks work the front while stocks simmer safely in back.
  • High-output charbroiler replaces a separate countertop unit, freeing up valuable line space.
  • All-stainless exterior stands up to harsh chemicals and daily power washing.
  • Open-burner pilots and easily removable cast-iron tops keep service downtime to a minimum.
Important: Install under a properly vented hood and maintain 10″ side/rear clearance to combustible materials (charbroiler units require non-combustible installation). Never cover charbroiler grates with sheet pans while burners are lit.

Need ovens or a different top configuration? Ask us about the full Ultimate Series line-up.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

60.75in

Depth

34.0in

Shipping Weight

1075.0lbs

Top

(4) open burners, (1) 36" charbroiler

Base

(2) cabinets

Exterior Finish

stainless steel front & sides

Vent

backriser with hi-shelf

Specifications

Ultimate Restaurant Range, gas, 60", (2) star/sauté burners front, (2) non-clog burners rear, standard grates, (1) 36" charbroiler right, (2) cabinets, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 228,000 BTU, CSA, NSF
