Southbend (Middleby) 4604CC-2TR Ultimate Gas Ranges
$13,135.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) 4604CC-2TR Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4604CC-2TR Ultimate Gas Ranges
$13,135.00
Unit price
/
Unavailable
Description
Southbend Ultimate 60" Restaurant Range – 3 Star/3 Non-Clog Burners & 24" Thermostatic Griddle (Right)
Model 460 Series | Dual-Cabinet BaseBring powerhouse performance to your cookline with Southbend’s Ultimate Range. Six open burners, a precision-controlled 24" griddle and rugged all-stainless construction deliver the speed, versatility and durability today’s high-volume kitchens demand.
Why You’ll Love It
- 246,000 BTU/h total input keeps recovery times razor-fast during peak service.
- Split burner layout for maximum flexibility: 3 × 33,000 BTU star/saute burners (front) + 3 × 33,000 BTU lifetime non-clog burners (rear).
- 24" right-side griddle with ½" polished steel plate & thermostatic control (175 – 550 °F).
- 22 ½" flue riser with integrated heavy-duty shelf—ideal for warming plates or staging pans.
- All-stainless front, sides, 4" front rail & 6" adjustable legs stand up to daily abuse.
- Front-mounted main gas shut-off and factory-installed ¾" regulator simplify installation.
- Standing pilots for instant burner ignition (battery-spark upgrade available).
- cCSAus, CSA Flame, CSA Star & NSF listed—meets the strictest local codes.
At-a-Glance Specs
| Overall width | 60 ¾" / 1543 mm |
|---|---|
| Overall depth | 34" / 864 mm (incl. 4" rail) |
| Cooking surface height | 37" / 940 mm |
| Open burners | 3 star/saute + 3 non-clog, 33,000 BTU each |
| Griddle section | 24" W × 27" D, 64,000 BTU, thermostatic |
| Total input | 246,000 BTU/h |
| Base | (2) stainless steel storage cabinets with center-opening doors |
| Flue riser | 22 ½" with heavy-duty plate shelf |
| Gas connection | ¾" NPT (rear), NAT or LP, 7" WC (NAT) / 11" WC (LP) |
| Construction | Stainless front, sides & shelf; cast-iron grates & drip trays |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (see limited warranty) |
Perfect For
- Full-service & fine-dining restaurants
- Hotels, resorts & institutional kitchens
- High-volume bars & brewpubs
- Ghost kitchens & commissaries
What’s in the Box
- Southbend Ultimate 60" range (as configured above)
- Factory-installed pressure regulator
- (4) removable cast-iron grate tops
- (2) full-width grease drawers under burner section
- User/installation manual & warranty documentation
Commercial use only: Install under a properly vented hood.
For best performance, keep cookware larger than 12" to the rear burners
and never allow pans to overhang the front rail.
Ask about Middleby Equipment Financing to turn this purchase into affordable monthly payments.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, cCSAus, CSA Star, CSA Flame
Height
59.5in
Width
60.75in
Depth
34.0in
Shipping Weight
1075.0lbs
Exterior Finish
stainless steel front & sides
Control Type
thermostatic controls
Plate Thickness
.500" = 1/2"
Base
(2) cabinets
Vent
backriser with hi-shelf
Top

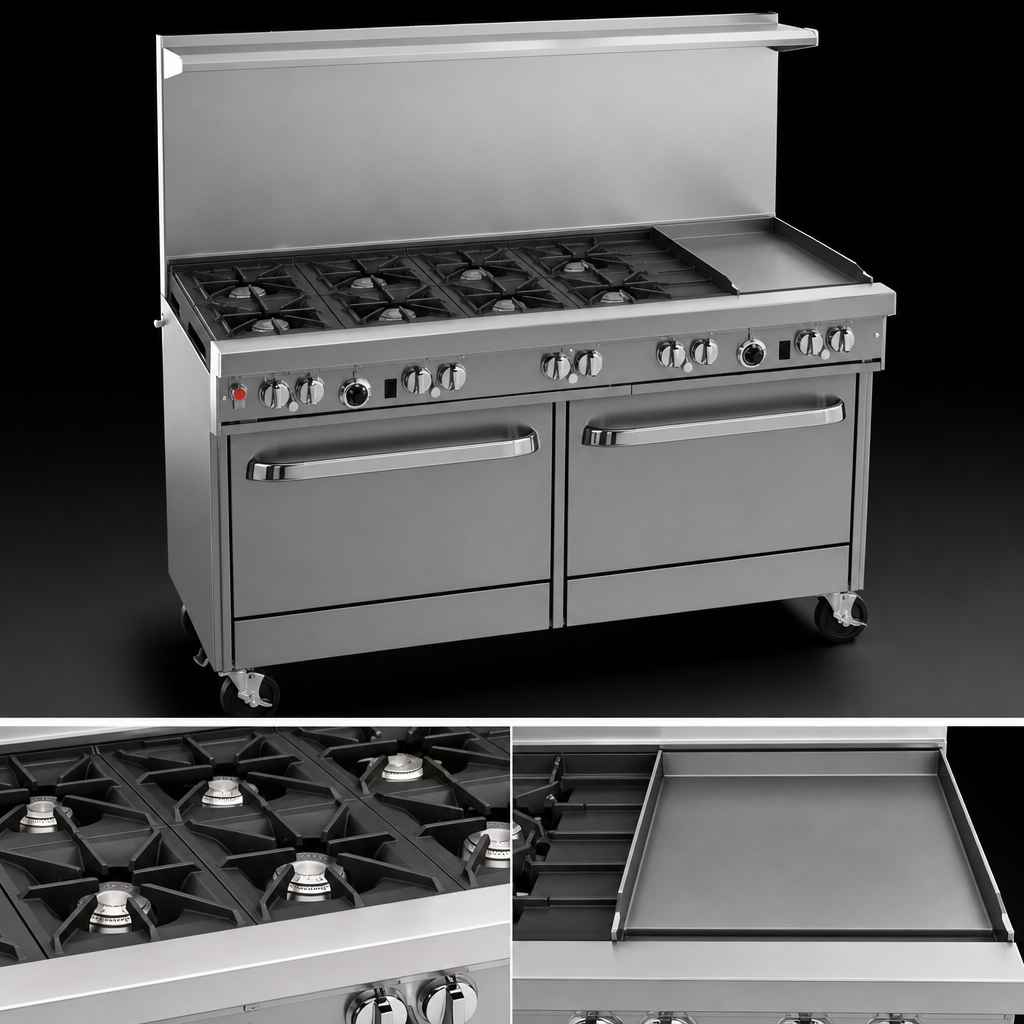

(6) open burners, (1) 24" griddle with thermostat
Specifications
Ultimate Restaurant Range, gas, 60", (3) star/sauté burners front, (3) non-clog burners rear, (1) 24" griddle right, thermostatic controls, (2) cabinets, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 246,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
