Southbend (Middleby) 4604CC-2GR Ultimate Gas Ranges
Description

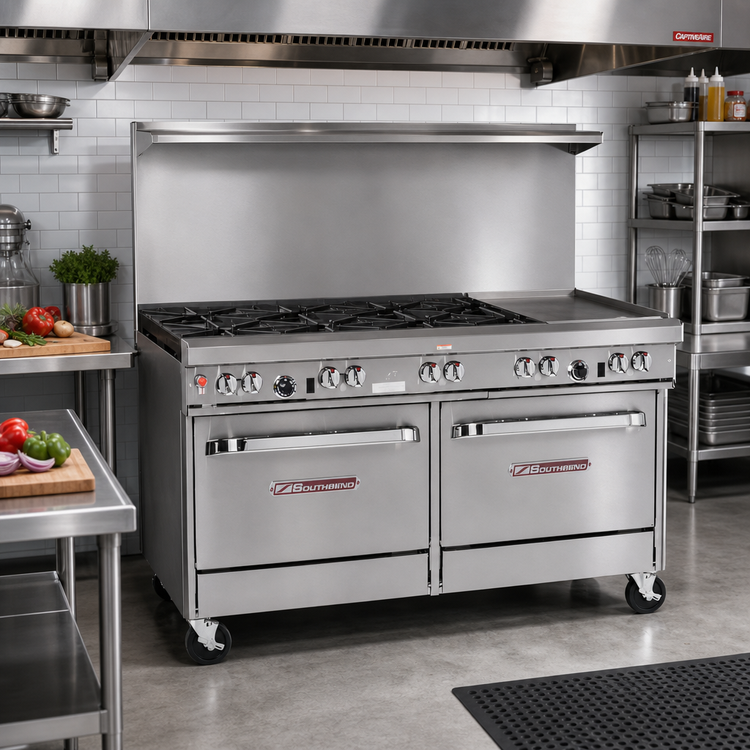

Southbend Ultimate 60″ Gas Restaurant Range
3 Star Burners • 3 Non-Clog Burners • 24″ Right-Side Griddle • Cabinet Base • 246,000 BTUBuilt for chefs who refuse to compromise, the Southbend Ultimate Series 60″ range packs high-output burners, a full-size griddle and generous dry storage into one rock-solid, stainless-steel platform—ready to power through the busiest meal periods with ease.
Key Advantages

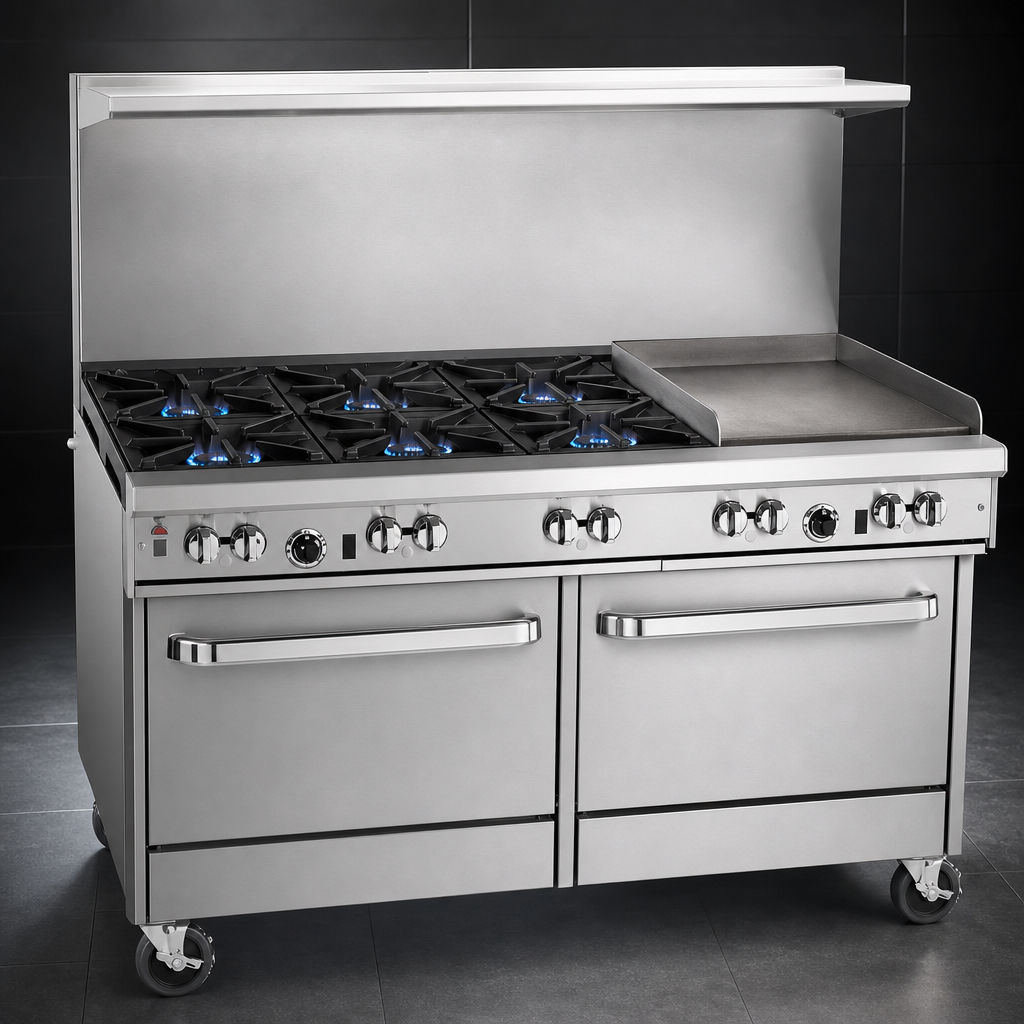

- Split Power Top – 3 × 33,000 BTU cast-iron star/sauté burners up front for lightning-fast heat response, plus 3 × 33,000 BTU lifetime non-clog burners in back for stock pots up to 14″.
- 24″ Polished Steel Griddle – ½″ thick, right-hand plate (64,000 BTU) delivers even caramelization for breakfast staples, smash burgers and more.

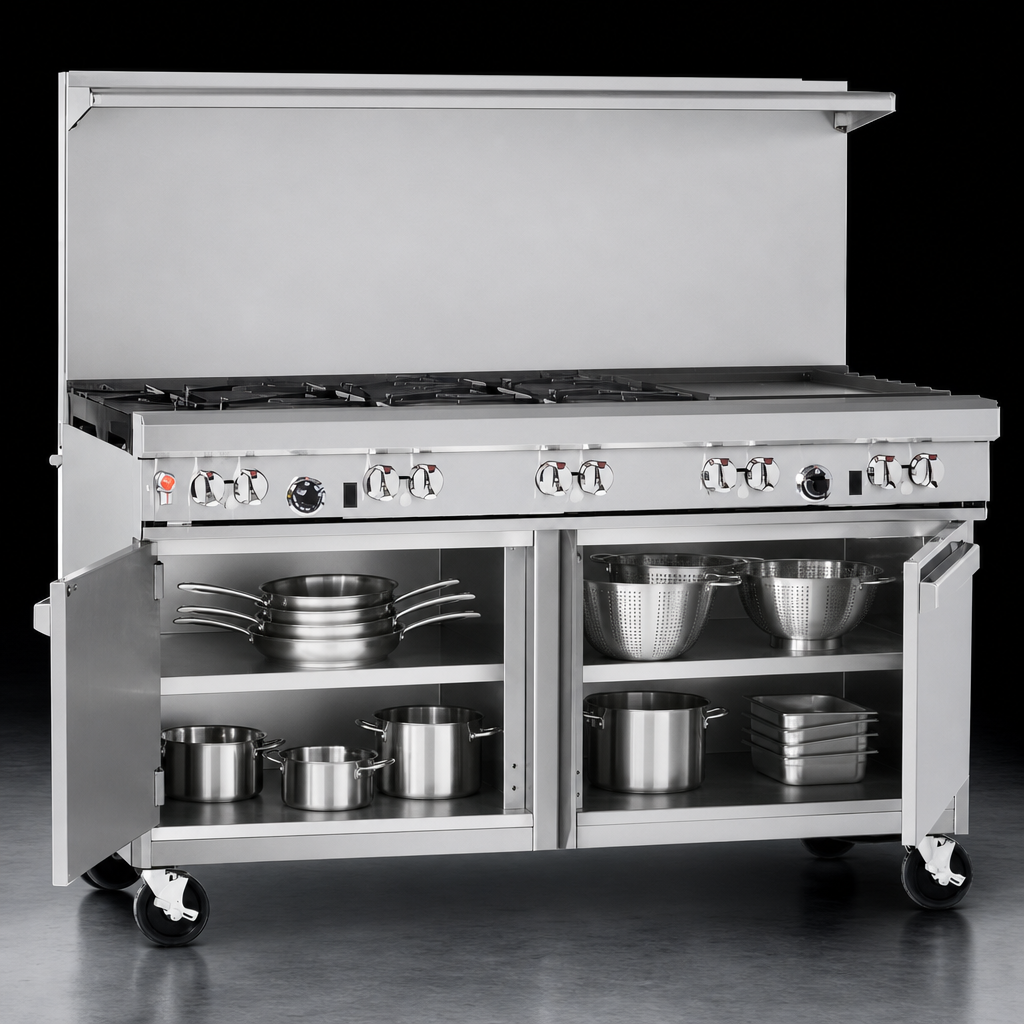

- Dual Stainless Cabinets – Keep sheet pans, utensils and dry ingredients within arm’s reach; optional center-opening doors available at no cost.
- Heavy-Duty Construction – All-stainless front, sides, shelf and 4″ rail stand up to daily scrubbing and abuse.
- Operator-Centric Design – Front gas shut-off, standing pilots for open burners, removable cast-iron grates and full-width drip trays cut set-up and clean-up time.
- 22 ½″ Flue Riser w/ Shelf – Vents combustion gases while doubling as a convenient plate-warming or staging area.
- Code-Ready & Reliable – Factory regulator, 6″ adjustable stainless legs, and cCSAus/CSA Flame/CSA Star/NSF certifications for worry-free installation.
At-a-Glance Specifications
| Overall width | 60 ¾″ / 1543 mm |
|---|---|
| Overall depth | 34″ / 864 mm |
| Cooking height | 37″ / 940 mm |
| Flue riser height | 22 ½″ (with storage shelf) |
| Total input (Natural) | 246,000 BTU/hr |
| Open burners | 3 star (front) + 3 non-clog (rear) @ 33,000 BTU each |
| Griddle plate | 24″ W × 27″ D × ½″ thick, right side, manual control |
| Base | Stainless storage cabinets (2) |
| Gas connection | ¾″ NPT (opposite the griddle) |
| Min. inlet pressure | 7″ W.C. Natural • 11″ W.C. LP |
| Certifications | NSF, cCSAus, CSA Flame, CSA Star |
| Warranty | 1-year parts & labor, factory-authorized service |
Perfect For
- Full-service restaurants consolidating sauté, stock and griddle work
- Hotels & resorts requiring round-the-clock durability
- Catering commissaries where every linear inch of cook-line counts
Looking for a different burner or oven layout? The Ultimate Series is fully customizable—contact us for a tailored quote.
