Southbend (Middleby) 4604AD-7L Ultimate Gas Ranges
$12,787.00
Unit price
/
Unavailable
Description

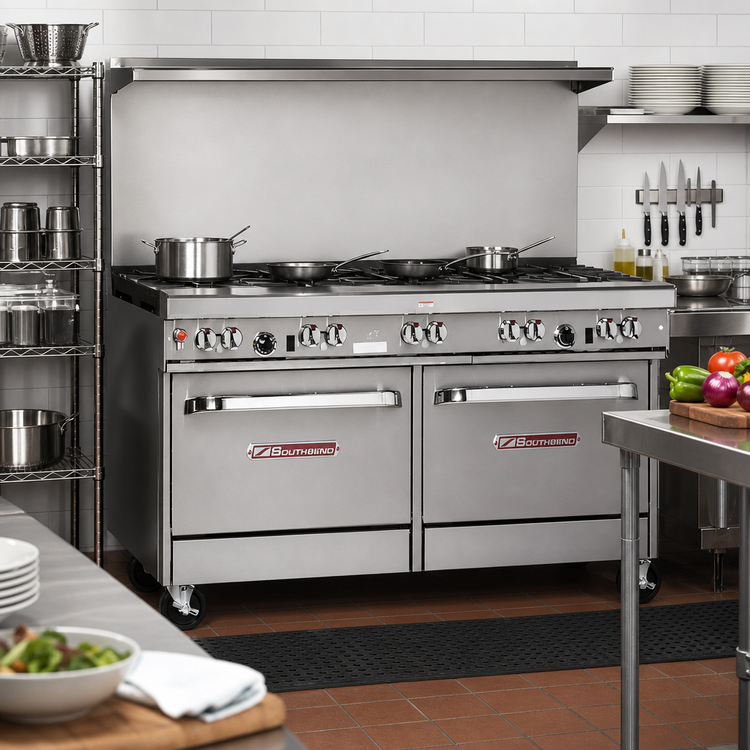

Southbend Ultimate 60" Gas Restaurant Range
Split-Top • Pyromax™ Package • Standard & Convection Ovens • 369,000 BTUPut the power of three burner technologies and two full-size ovens into a single 60-inch footprint. Engineered for high-volume kitchens, the Ultimate Series delivers unrivaled output, rugged construction, and the cleanability chefs count on every day.
Key Cooking Features
- 27" deep cooking surface capped by a 22 ½" flue riser with heavy-duty utensil shelf

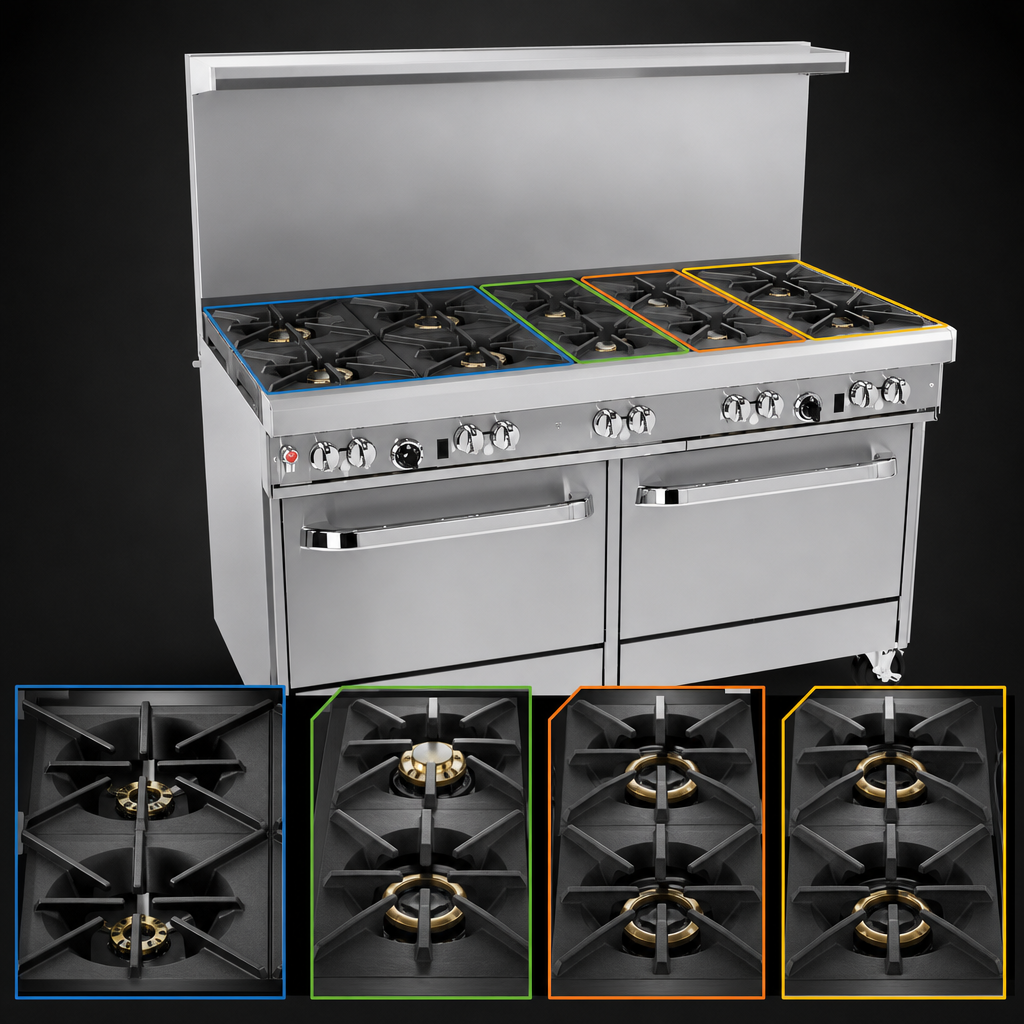

- Custom burner layout:
- (2) 33,000 BTU cast-iron star/saute burners (front)
- (2) 33,000 BTU non-clog burners (rear)
- (4) 40,000 BTU patented Pyromax™ burners (left side)
- Four removable cast-iron grate tops – rear sections handle 14" stock pots
- Standing pilots on open tops; factory-installed regulator & front gas shut-off valve
- All-stainless front, sides, shelf & 4" rail on 6" adjustable stainless legs

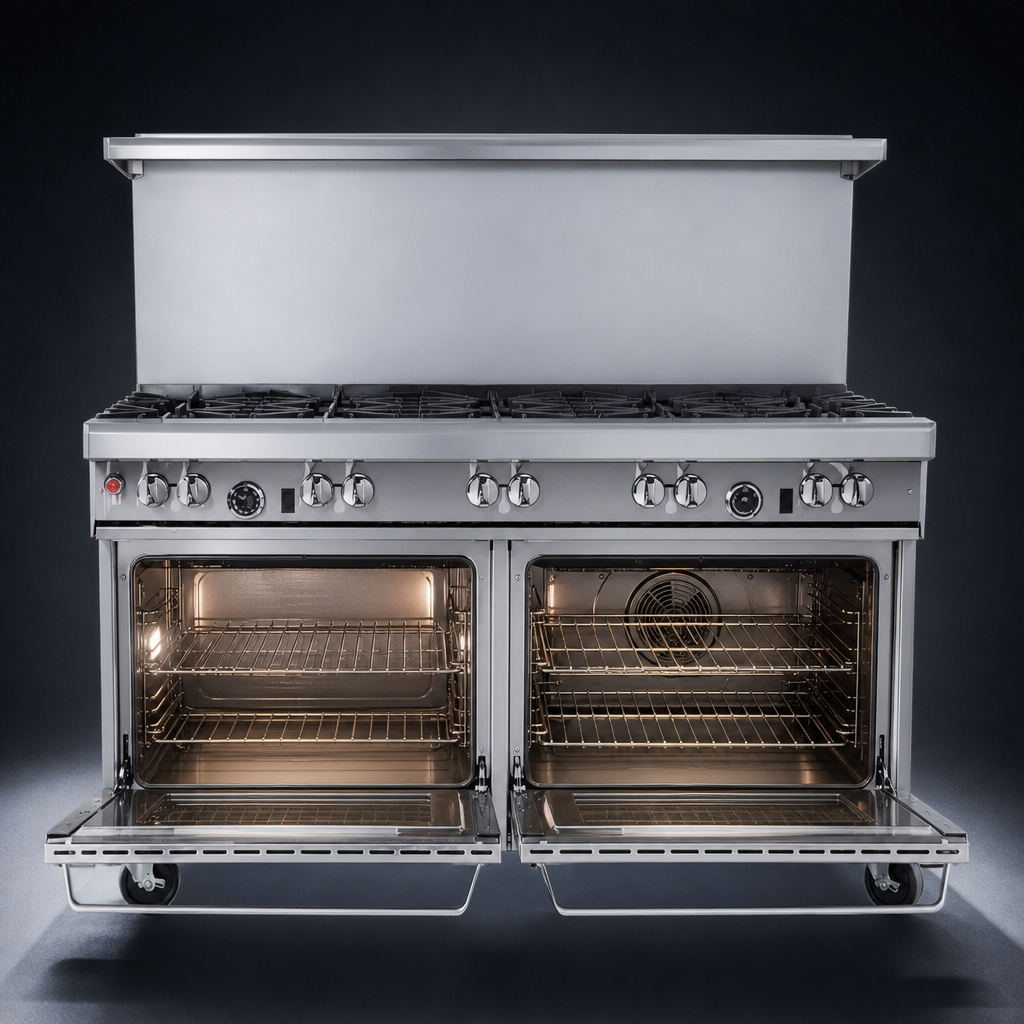

Dual-Oven Productivity
- Standard oven – 45,000 BTU, 14"H × 26"W × 26.5"D cavity, 1 rack/2 positions
- Convection oven – 32,000 BTU, 14"H × 26"W × 24"D cavity, ½ HP fan, 3 racks/5 positions
- Snap-action thermostats 175 – 550 °F (79 – 288 °C) with battery-spark ignition
- Porcelain-enameled, coved-corner interiors for easy wipe-down
- Spring-assisted, counter-weighted doors for smooth one-hand operation
Performance & Utilities
| Overall width | 60 ¾" (1543 mm) |
|---|---|
| Overall depth | 42 ⅛" (1070 mm) with convection base |
| Cooking height | 37" (940 mm) |
| Total BTU | 369,000 BTU/hr |
| Open-top BTU | 292,000 BTU/hr |
| Oven BTU | 45,000 + 32,000 BTU/hr |
| Gas connection | ¾" NPT female (rear, left or right per burner layout) |
| Electrical | 115 V / 60 Hz / 1 ph – 5.9 A (convection fan) |
| Construction | Stainless steel front, sides & shelf; cast-iron grates & burners |
| Certifications | CSA • NSF |
| Warranty | 1-year parts & labor (see Southbend terms) |
Need casters, salamander mounts, or extra oven racks? Factory-installed accessories are available—ask your rep for details.
Commercial use only. Install under a properly vented hood and keep cookware >12" in diameter on the rear grates to prevent damage to the front rail.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, CSA
Height
59.5in
Width
60.75in
Depth
44.5in
Shipping Weight
1075.0lbs
Vent
backriser with hi-shelf
Top
(8) open burners
Exterior Finish
stainless steel front & sides
Base
(1) standard oven, (1) convection oven
Specifications
Ultimate Restaurant Range, gas, 60", (2) star/sauté burners front, (2) non-clog burners rear, (4) pyromax burners left, standing pilot, (1) standard oven with battery spark ignition, (1) convection oven with battery spark ignition, includes (4) racks total, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 369,000 BTU, CSA, NSF
