Southbend (Middleby) 4604AD-5R Ultimate Gas Ranges
Description

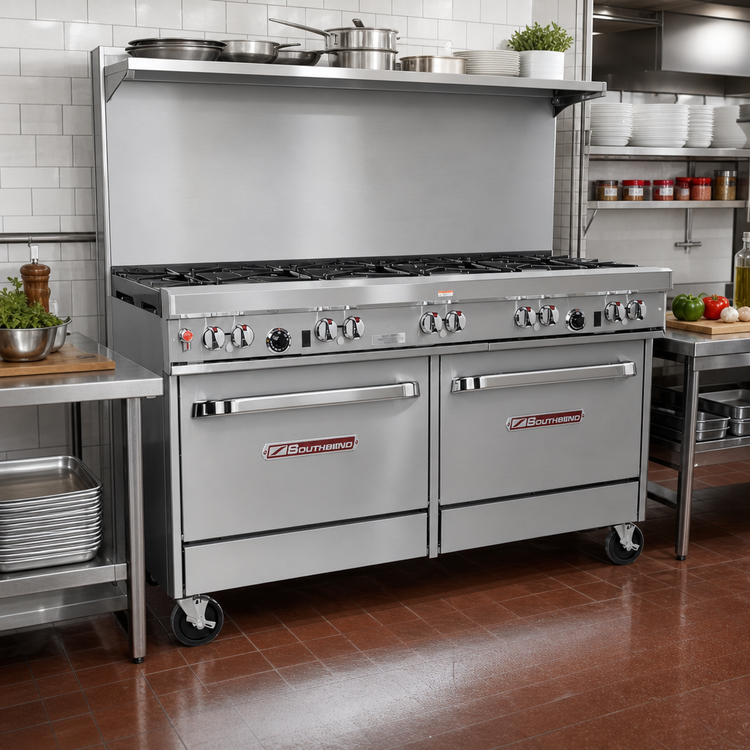

Southbend “Ultimate” 60" Gas Restaurant Range
Split 9-Burner Top • Standard + Convection Ovens • 388,000 BTUEngineered for kitchens that run full-tilt from breakfast rush to last call, the Southbend Ultimate Range delivers unstoppable heat, rock-solid construction and the menu flexibility operators demand. A unique mix of non-clog, star/sauté and ultra-high-output Pyromax burners pairs with both a traditional and a fan-forced oven base—putting every cooking technique within arm’s reach.

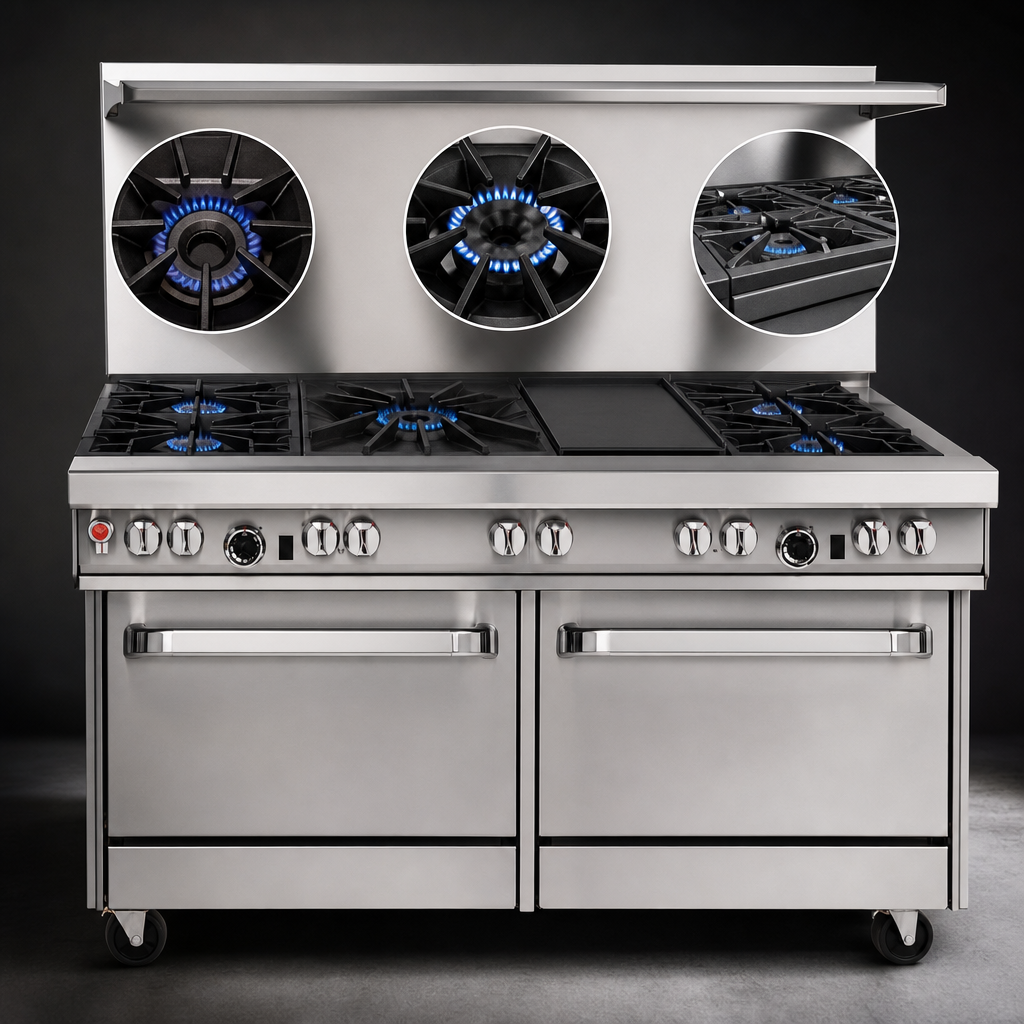

Top-Side Power & Versatility
- (3) 33,000 BTU non-clog burners – front right
- (2) 40,000 BTU Pyromax burners – rear right for rapid boils & woks
- (2) 33,000 BTU star/sauté burners – front left for even, edge-to-edge heat
- (2) 33,000 BTU non-clog burners – rear left
- Four extra-heavy, removable cast-iron grates (rear sections accept 14" stock pots)
- Standing pilots for instant lighting; front-mounted manual gas shut-off

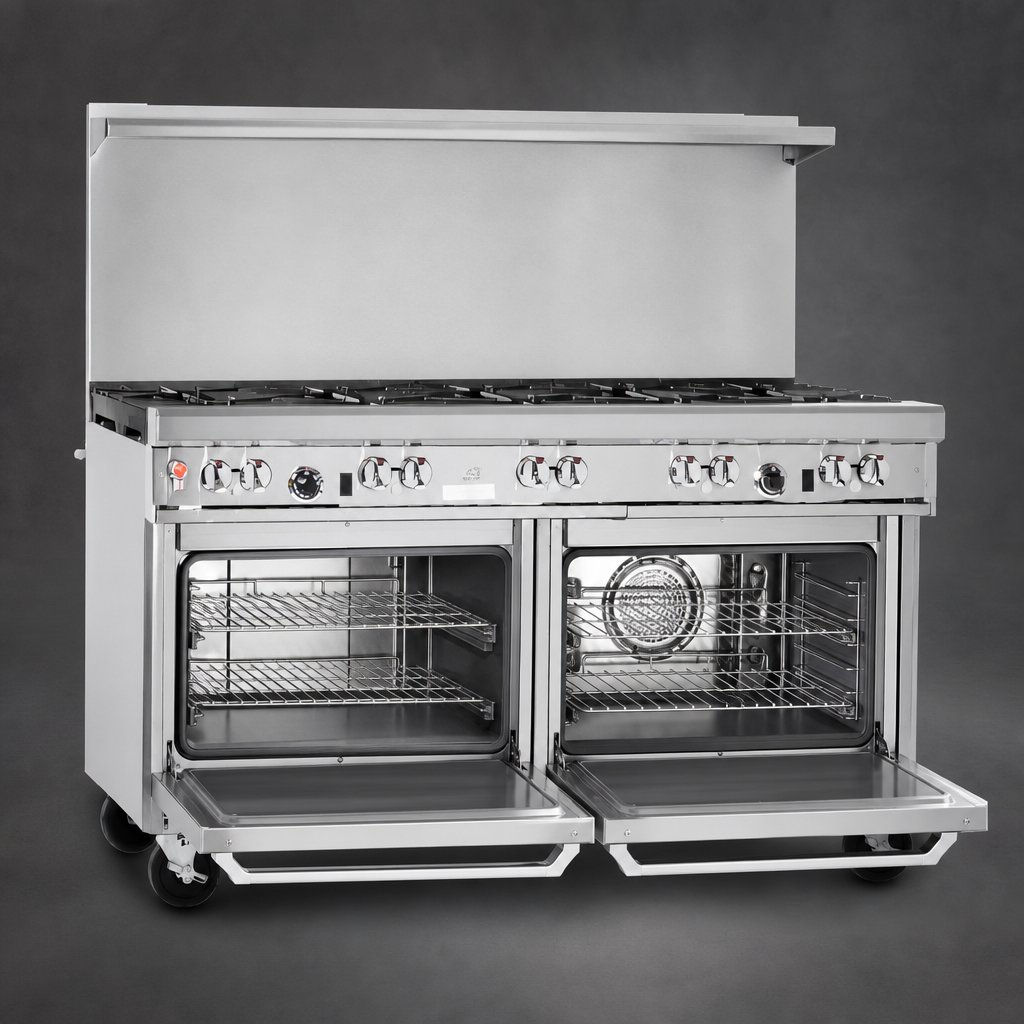

Dual Oven Productivity
- Standard oven – 45,000 BTU, battery-spark ignition, porcelain interior
(1) oven rack, two positions, 26" W × 26.5" D × 14" H - Convection oven – 32,000 BTU, battery-spark ignition, 1/2 HP fan motor
(3) chrome racks, five positions, 26" W × 24" D × 14" H - Independent snap-action thermostats 175 – 550 °F (79 – 288 °C)
Built to Last
- All-stainless front, sides, 22-1/2" flue riser with heavy-duty utility shelf
- 6" stainless steel legs with 1-3/4" adjustment
- Factory-installed 3/4" pressure regulator & CSA / NSF approvals
- 1-year limited parts & labor warranty backed by Southbend’s nationwide service network
Specifications at a Glance
| Overall width | 60 3/4" (1543 mm) |
|---|---|
| Depth (incl. handle) | 42 1/8" (1070 mm) |
| Cook-top height | 37" (940 mm) |
| Height w/ flue riser | 59 1/2" (1511 mm) |
| Total input | 388,000 BTU/hr, Natural or LP |
| Gas connection | 3/4" NPT, rear |
| Electric (convection fan) | 115 V, 1 ph, 6 A, 6' cord & plug |
| Oven temperature range | 175 °F – 550 °F (79 °C – 288 °C) |
| Certifications | CSA, NSF |
Popular Add-Ons (½ day install)
- Swivel casters with front locks
- 3 ft, 4 ft or 5 ft gas quick-disconnect hose kit
- Salamander or cheesemelter overhead mounts
- Extra oven racks
