Southbend (Middleby) 4604AD-5L Ultimate Gas Ranges
Description

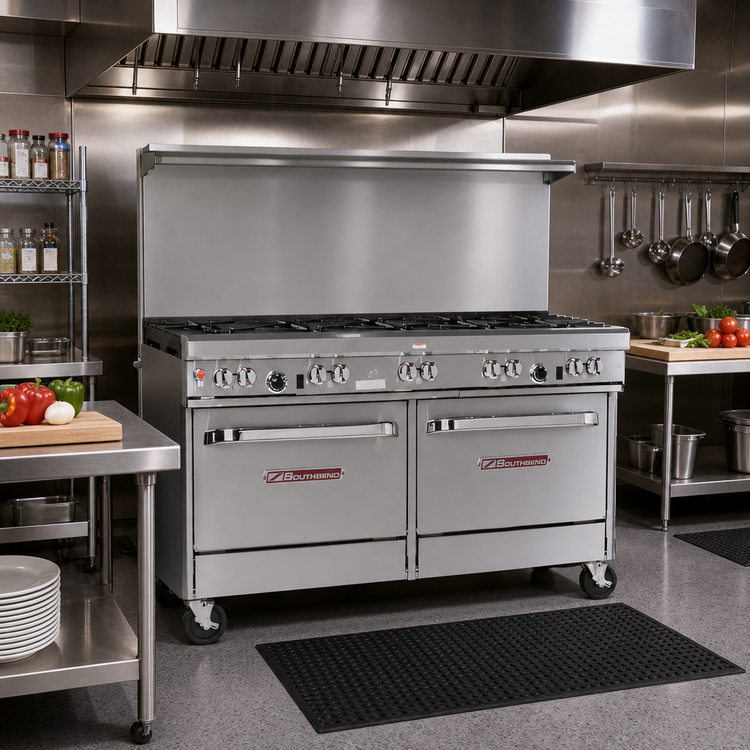

Ultimate 60" Gas Restaurant Range
Southbend 460 Series | Split-Top – Pyromax / Star / Non-Clog BurnersBring heavy-duty, high-output performance to the line with Southbend’s flagship Ultimate Range. This 60-inch model combines three burner styles, two full-size ovens and rugged stainless-steel construction—delivering a colossal 388,000 BTU of cooking power in a single footprint.

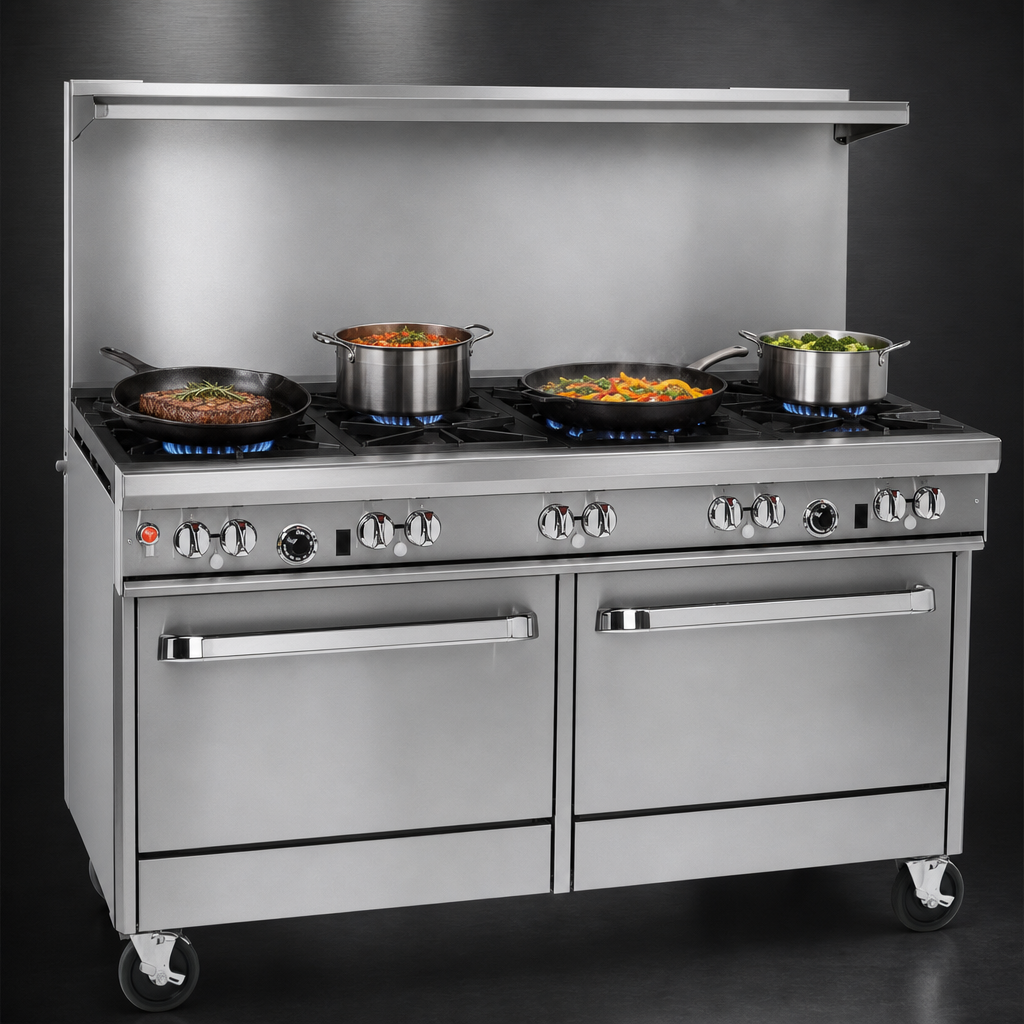

Why it Belongs in Your Kitchen- Triple-threat cooktop – 3× 33 K BTU non-clog burners, 2× 40 K BTU Pyromax power burners, plus 2× 33 K BTU star/sauté burners up front for lightning-fast pan work.

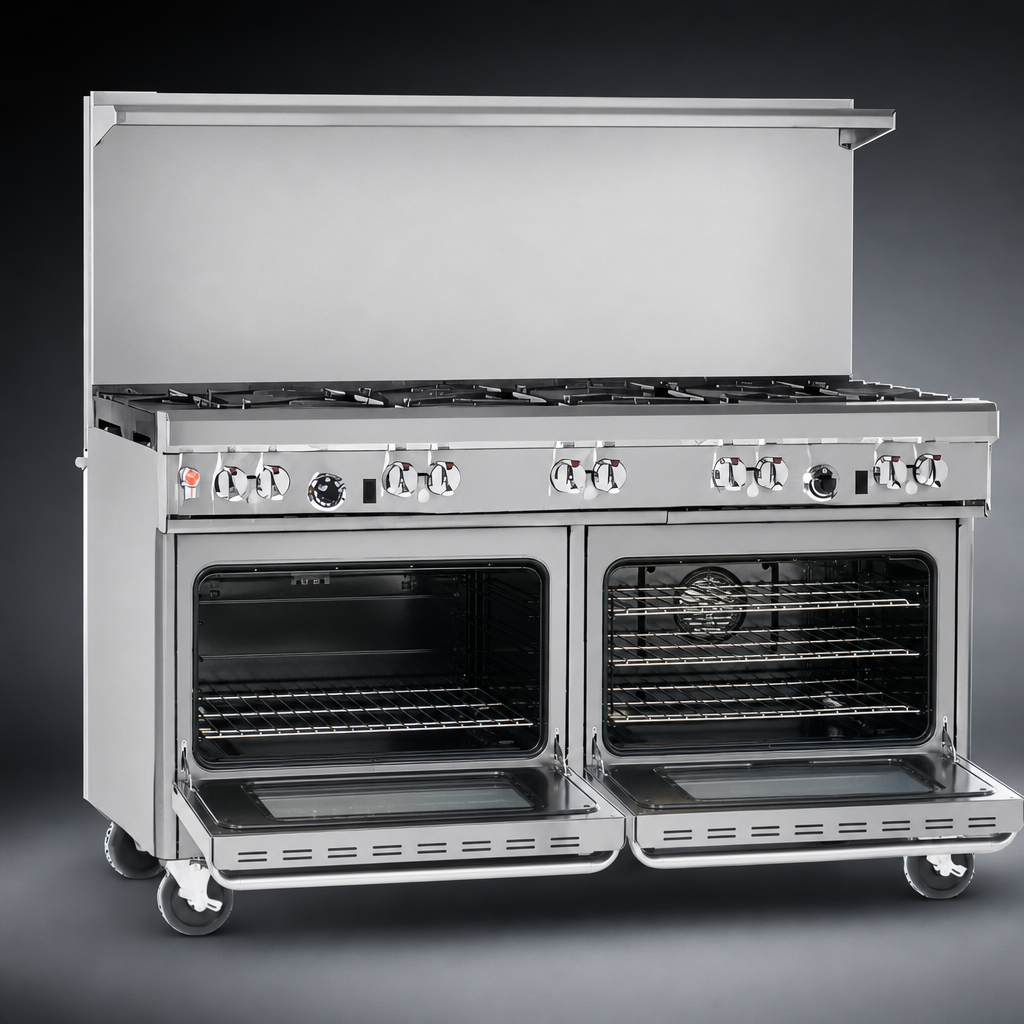

- Full-size baking & roasting – One standard oven (45 K BTU) and one convection oven (32 K BTU, ½ HP fan) handle sheet pans in either direction.
- Battery-spark ignition on both oven cavities—no standing pilot to relight and no external power required for the standard oven.
- Lifetime-clog-free cast-iron grates with 27" deep work surface support up to 14" stock pots on the rear.
- Built for the long haul – All-stainless front, sides, shelf and 6" adjustable legs; front-mounted master gas shut-off and factory-installed pressure regulator.
- Four nickel-plated racks included (2 per oven) with multi-position side rails.
- CSA & NSF certified; ships ready for natural gas (field convertible to LP).
| Cooktop configuration | 3 non-clog (front-left) | 2 Pyromax (rear-left) | 2 star/sauté (front-right) | 2 non-clog (rear-right) |
|---|---|
| Total open-top BTU | 311,000 BTU |
| Standard oven | 45,000 BTU | 14"H × 26"W × 26.5"D |
| Convection oven | 32,000 BTU, ½ HP fan | 14"H × 26"W × 24"D |
| Oven racks supplied | 4 total (2 per cavity) |
| Combined BTU input | 388,000 BTU/hr |
| Gas connection | ¾" NPT (rear); 7" W.C. Natural / 11" W.C. LP |
| Electrical (convection fan) | 115 V / 60 Hz / 1-ph, 5.9 A, 6′ cord & plug |
| Overall width | 60 ¾" (1543 mm) |
|---|---|
| Overall depth | 42 ¹⁄₈" (1070 mm) |
| Cooking height | 37" (940 mm) |
| Height to flue top | 59 ½" (1511 mm) with 22 ½" flue riser & shelf |
| Shipping weight | ≈ 1,075 lb (488 kg) |
- Factory-installed 22.5" flue riser with heavy-duty utility shelf
- Pressure regulator & front master gas shut-off
- Four nickel-plated oven racks
- One-year limited parts & labor warranty backed by Southbend’s national service network
When using cookware 12" or larger, place it on the rear burners to avoid trapping heat in the front rail. Oversized cookware over front burners can shorten component life and is not covered under warranty.
