Ultimate 60" Gas Restaurant Range by Southbend
48" right-side thermostatic griddle | 1 star/sauté burner & 1 non-clog burner | standard + convection ovensBuilt for high-volume kitchens that refuse to compromise on versatility or uptime, the Southbend Ultimate Range combines a powerful open-top section with an extra-wide griddle and a dual oven base— giving chefs three cooking platforms in less than 61 inches of space.
Why you’ll love it
- 223,000 BTU total output for fast recovery during peak service.

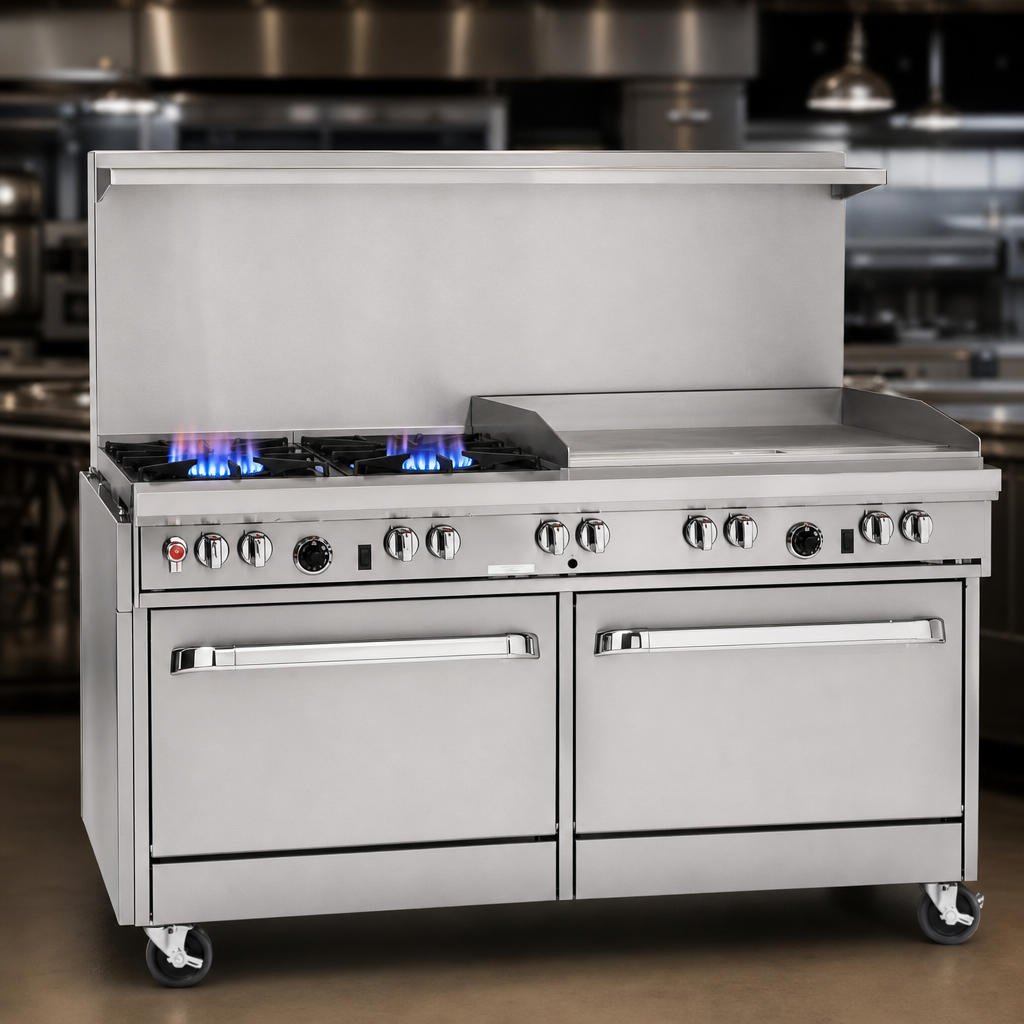

- Open-top section with one 33 K BTU star/sauté burner in front and one 33 K BTU non-clog burner in the rear—perfect for both delicate sauces and high-volume stock work.

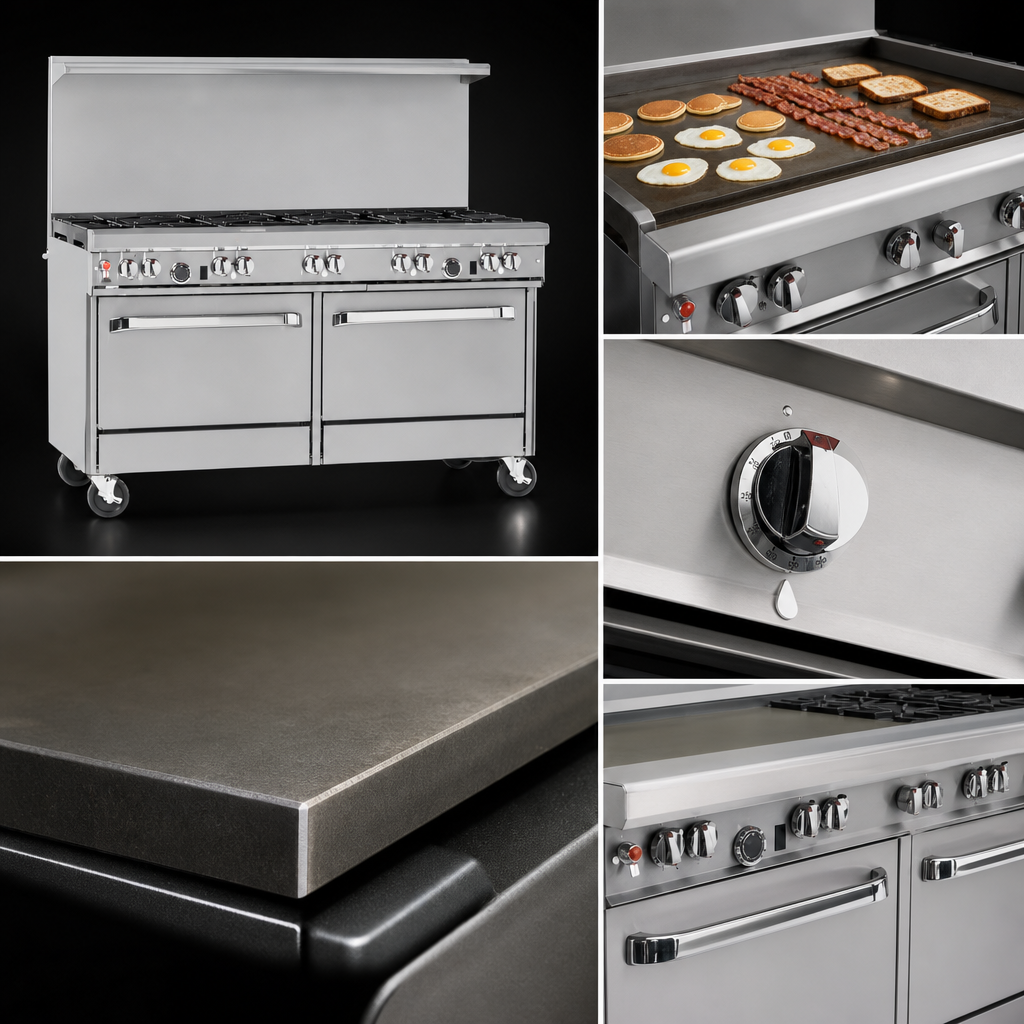

- 48" thermostatic griddle (1" polished steel) holds ±10 °F across the plate for all-day consistency.
- Split oven base:
- 45 K BTU standard oven—great for roasting and baking.
- 32 K BTU convection oven with 1/2 hp fan for even browning.
- Four adjustable oven racks included (2 per cavity).
- Battery-spark ignition on both ovens—no external wiring required.
- 22 1/2" flue riser with heavy-duty plate shelf keeps plating essentials within reach.
- Stainless steel front, sides, shelf & 6" adjustable legs stand up to daily scrubs.
- Front-mounted gas shut-off for quick, one-handed safety.
- cCSAus, CSA Flame, CSA Star & NSF listed for universal code compliance.
Technical specifications
| Overall width | 60 3⁄4 in (1543 mm) |
|---|---|
| Overall depth | 34 in (864 mm) |
| Cooking height | 37 in (940 mm) to cook top | 59 1⁄2 in (1511 mm) to flue shelf |
| Griddle plate | 48 in W × 27 in D, 1" polished steel, thermostatic 175 – 550 °F |
| Open burners | 1 × 33 K BTU star/sauté (front) + 1 × 33 K BTU non-clog (rear) |
| Total gas input | 223,000 BTU/h (Natural or LP*) |
| Gas connection | 3⁄4" NPT female, rear-mounted |
| Electrical (convection fan) | 115 V / 1 ph / 5.9 A, 6 ft cord & NEMA 5-15P plug |
| Oven interiors |
Standard: 14" H × 26" W × 26 1⁄2" D (1 rack, 2 positions) Convection: 14" H × 26" W × 24" D (3 racks, 5 positions) |
| Shipping | Crated weight ≈ 1075 lb (488 kg) |
*Natural gas 7" W.C. minimum, propane 11" W.C. minimum inlet pressure.
Engineered for the long haul
- One-piece cast-iron grates handle stock pots up to 14".
- Double-sided, fully porcelain-enameled oven cavities with coved corners for easy wipe-down.
- Spring-assisted oven doors stay open where you leave them.
- Factory-installed regulator and rear manifold simplify hook-up.
- Front rail, drip trays and burner bowls remove tool-free for overnight soaking.
Warranty & certifications
- 1-year limited parts & labor warranty (performed by Southbend Authorized Service Agencies).
- NSF listed for sanitation.
- cCSAus, CSA Flame and CSA Star certified for gas safety.
Installation & use reminders
- A minimum 10" clearance is required at the rear and sides when installed next to combustibles.
- Limit cookware larger than 12" Ø to the rear open burner to protect the front rail components.
- Install under a properly sized vent hood and connect to a 3⁄4" gas supply line.
Need flexible financing? Southbend is a Middleby brand—click here to explore equipment financing options.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, cCSAus, CSA Star, CSA Flame
Height
59.5in
Width
60.75in
Depth
44.5in
Shipping Weight
1075.0lbs
Top
(2) open burners, (1) 48" griddle with thermostats
Base
(1) standard oven, (1) convection oven
Control Type
thermostatic controls
Exterior Finish
stainless steel front & sides
Vent
backriser with hi-shelf
Plate Thickness
.500" = 1/2"
Specifications
Ultimate Restaurant Range, gas, 60", (1) star/sauté burners front, (1) non-clog burners rear, standard grates, 48" griddle right, thermostatic controls, standing pilot, (1) standard oven with battery spark ignition, (1) convection oven with battery spark ignition, includes (4) racks total, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 223,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
