Southbend (Middleby)  |  Ultimate  |  SKU: 4604AD-3GR

Southbend (Middleby) 4604AD-3GR Ultimate Gas Ranges

$17,405.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

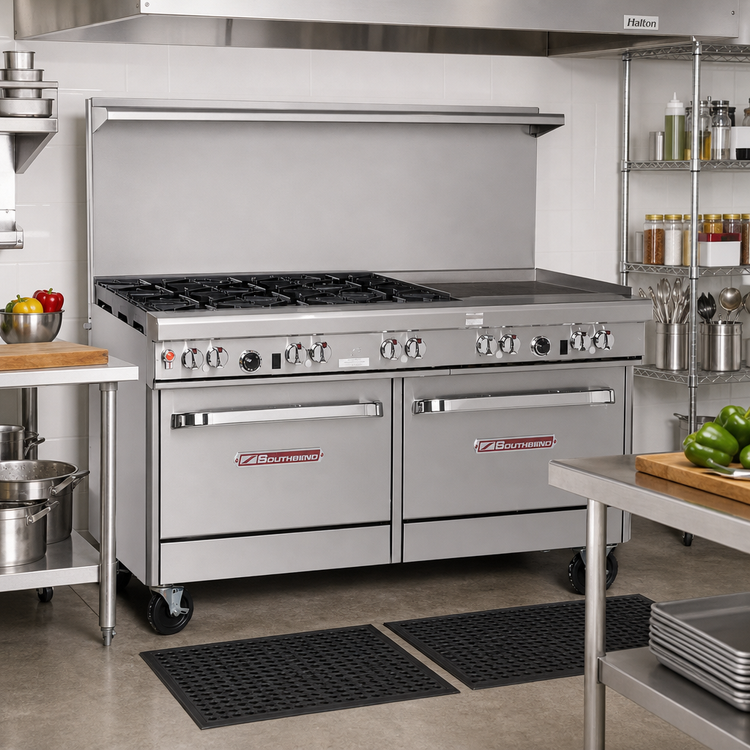

Southbend Ultimate 60" Gas Restaurant Range – 2 Star/Sauté + 2 Non-Clog Burners & 36" Griddle, Dual Ovens

Model 460 Series | 273,000 BTU | cCSAus, CSA Flame & Star, NSF

Put unmatched versatility on your cookline. Southbend’s flagship Ultimate Range lets your team sauté, griddle, bake and roast at once—all from a rugged 60 inch platform built for nonstop commercial duty.

Key Performance Features

  • (2) 33,000 BTU cast-iron star/sauté burners in front for lightning-fast heat and precise control.
  • (2) 33,000 BTU lifetime non-clog burners in rear—accommodate stockpots up to 14".
  • 36" right-side griddle with ½" polished steel plate and raised sides—perfect for breakfast, burgers & more.
  • Total input: 273,000 BTU/hr (natural gas).
  • Standing pilots on open burners; battery-spark ignition on both oven bases—no external power needed for lighting.

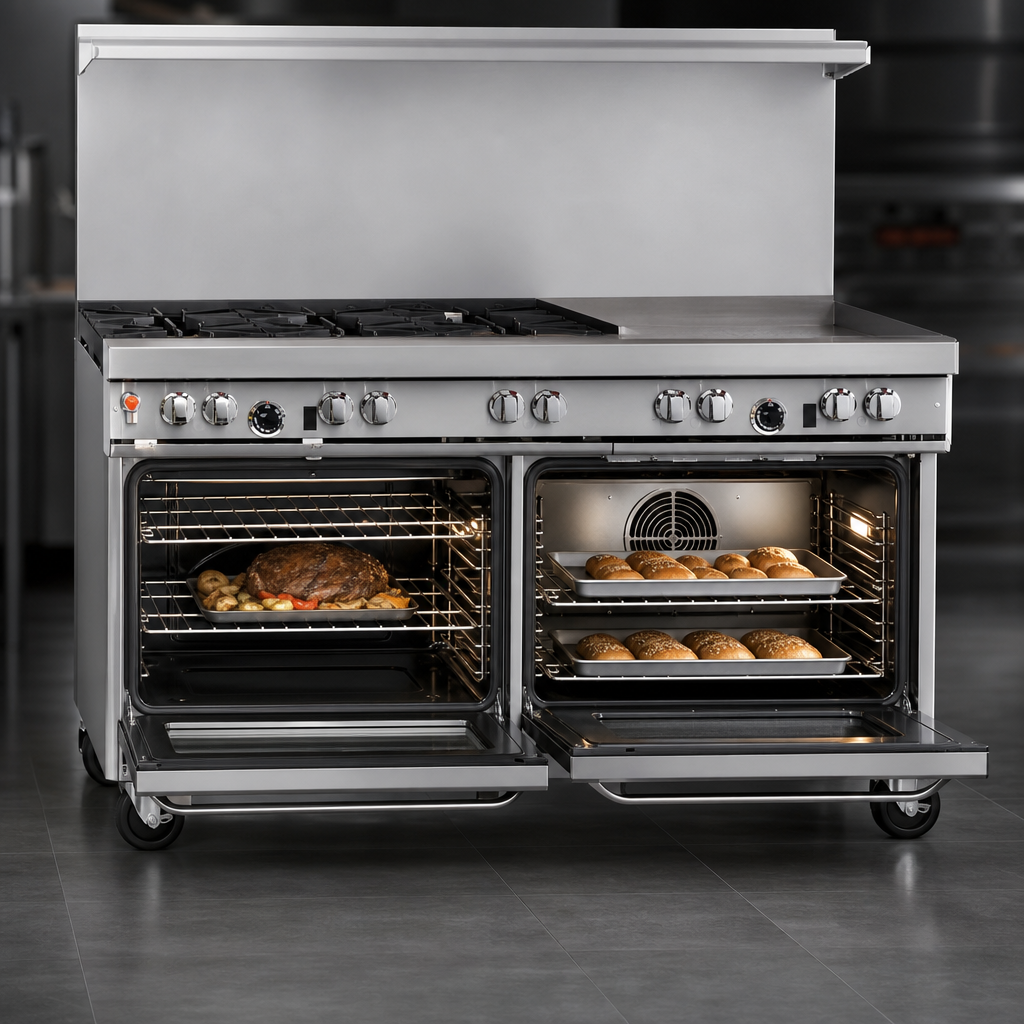

Dual Oven Power

  • Standard Oven (left): 45,000 BTU, thermostat 175 – 550 °F; 14" H × 26" W × 26.5" D cavity with 1 rack/2 positions.
  • Convection Oven (right): 32,000 BTU, forced-air cooking; 14" H × 26" W × 24" D cavity with 3 racks/5 positions.
  • Battery-spark ignition on both ovens for match-free starts.

Built for the Long Haul

  • Stainless steel front, sides, 4" rail and high-capacity shelf on the 22-½" flue riser.
  • Four removable cast-iron grate tops & two full-width crumb trays for quick clean-up.
  • Front-mounted manual gas shut-off and factory-installed regulator for simple service.
  • 6" stainless adjustable legs (casters optional).
  • 1-year limited parts & labor warranty backed by Southbend’s nationwide network.

Specifications

Overall width 60-3/4"
Overall depth 34"
Cook-top height 37"
Cooking surface (4) open burners + 36" griddle (right)
Ovens 1 standard, 1 convection
Total BTU input 273,000 BTU/hr
Gas connection 3/4" NPT (opposite the griddle side)
Electrical (convection fan) 115 V, 5.9 A, 6' cord with 3-prong plug
Certifications cCSAus, CSA Flame, CSA Star, NSF
Shipping weight ≈ 1,075 lb

Minimum gas inlet pressure: 7" W.C. (natural). Install under a properly sized, code-compliant exhaust hood. For commercial use only.

Oversized Cookware Policy –  Pots 12" or larger should be used on the rear burners to prevent excessive heat in the front rail, protecting components and prolonging range life.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

60.75in

Depth

44.5in

Shipping Weight

1075.0lbs

Vent

backriser with hi-shelf

Top

(4) open burners, (1) 36" griddle

Exterior Finish

stainless steel front & sides

Base

(1) standard oven, (1) convection oven

Plate Thickness

.500" = 1/2"

Specifications

Ultimate Restaurant Range, gas, 60", (2) star/sauté burners front, (2) non-clog burners rear, standard grates, 36" griddle right, standing pilot, (1) standard oven with battery spark ignition, (1) convection oven with battery spark ignition, includes (4) racks total, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 273,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
