Southbend (Middleby) 4604AD-2GR Ultimate Gas Ranges
Description
Southbend Ultimate Series 60" Gas Restaurant Range
6 Open Burners • 24" Griddle • Standard + Convection Ovens • 323,000 BTUBuilt for high-volume kitchens, the Ultimate Range packs heavy-duty construction and multi-zone versatility into a single 60" footprint. Sauté, simmer, sear, bake and roast—all at once—while its stainless exterior and porcelain-enameled ovens stand up to years of daily service.
Key Performance Features
- (3) 33,000 BTU cast-iron star sauté burners (front) for fast, even heat.
- (3) 33,000 BTU non-clog cast-iron burners (rear) sized for 14" stock pots.
- 24" right-side griddle, ½" polished steel plate, manual controls with standing pilot—ideal for breakfast items, burgers and more.

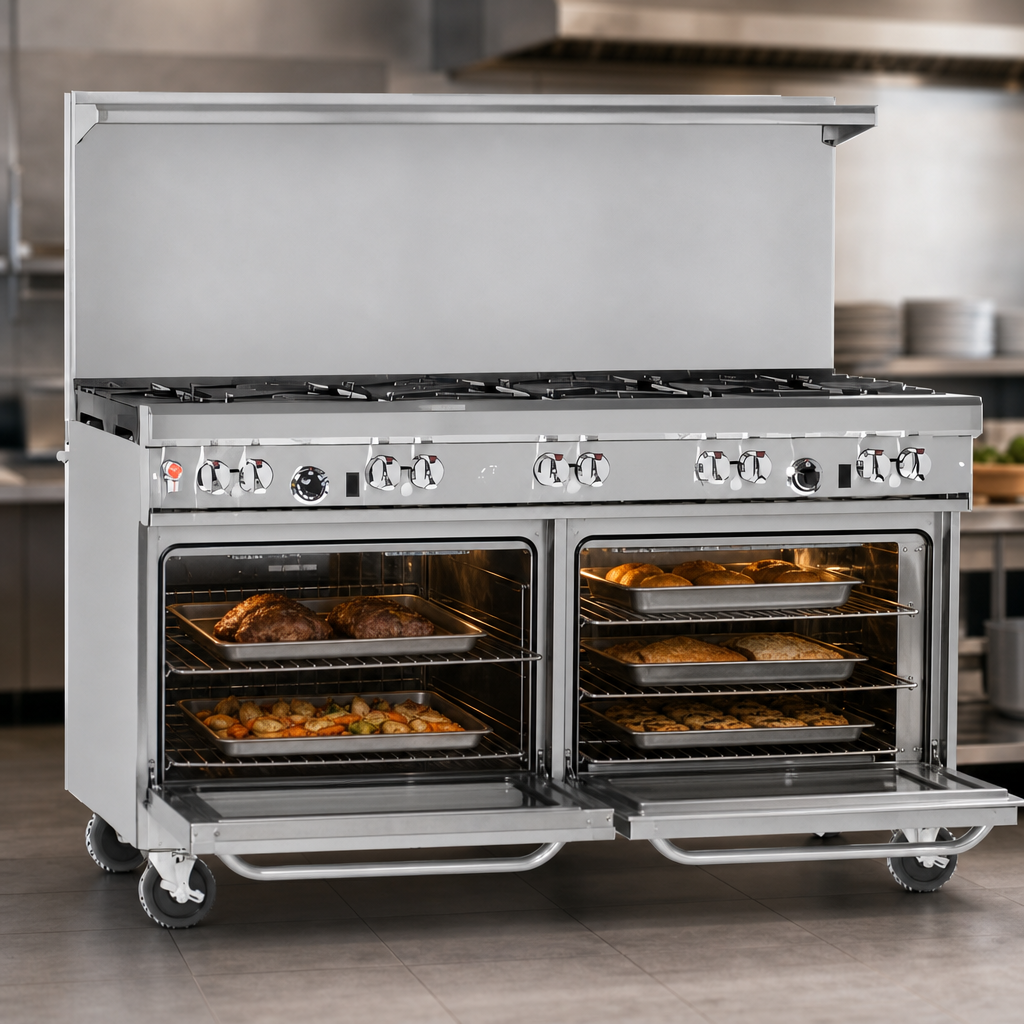

- Dual ovens:
- 45,000 BTU standard oven (battery spark ignition) with 175–550 °F thermostat.
- 32,000 BTU convection oven (battery spark + 115 V fan) for rapid, even baking.
- Four nickel-plated racks included (two per oven) with multiple positions.
- 22½" flue riser with integrated stainless utility shelf keeps supplies close and heat safely vented.
- Front-mounted gas shut-off & factory-installed pressure regulator streamline installation.
- Stainless steel front, sides, 4" rail & 6" adjustable legs for durability and easy cleaning.
- NSF, cCSAus, CSA Flame & CSA Star certified for sanitation and gas safety.
At-a-Glance Specs
| Series / Model | Ultimate Restaurant Range – 60" split oven base |
|---|---|
| Total Input | Approx. 323,000 BTU/hr (Natural or LP, field convertible) |
| Cooktop Configuration | 6 open burners (front star / rear non-clog) + 24" griddle (right) |
| Ovens | 1 standard (45 K BTU) & 1 convection (32 K BTU, 115 V fan) |
| Exterior Width | 60 3⁄4" / 1543 mm |
| Depth | 34" body • 42 1⁄8" overall with handles |
| Cooktop Height | 37" / 940 mm |
| Flue Riser | 22 ½" with stainless shelf |
| Gas Connection | ¾" NPT (rear) |
| Electrical (fan only) | 115 V, 5.9 A, 1-phase, 6' cord & plug |
| Warranty | 1-year limited parts & labor |
Why Operators Love It
- Lifetime clog-free, one-piece cast-iron burners reduce downtime.
- Porcelain-enameled, coved-corner ovens wipe out in minutes.
- Battery spark ignition keeps you cooking even during power outages.
- Nationwide Southbend service network for quick, reliable support.
For commercial use only. Unit must be installed under a vented hood by qualified personnel and leveled on its adjustable stainless legs.
