Southbend (Middleby)  |  Ultimate  |  SKU: 4604AC

Southbend (Middleby) 4604AC Ultimate Gas Ranges

$14,735.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Ultimate 60" Gas Restaurant Range – Split 10-Burner Top, Convection Oven & Cabinet (362,000 BTU)

Model 460AC | CSA & NSF Listed

Engineered for high-volume kitchens, the Southbend Ultimate series packs exceptional power, durability and flexibility into one 60" footprint. A split open-top layout lets you sauté, sear and simmer simultaneously, while the full-size convection oven and stainless cabinet base keep product moving and tools organized.

Performance Highlights

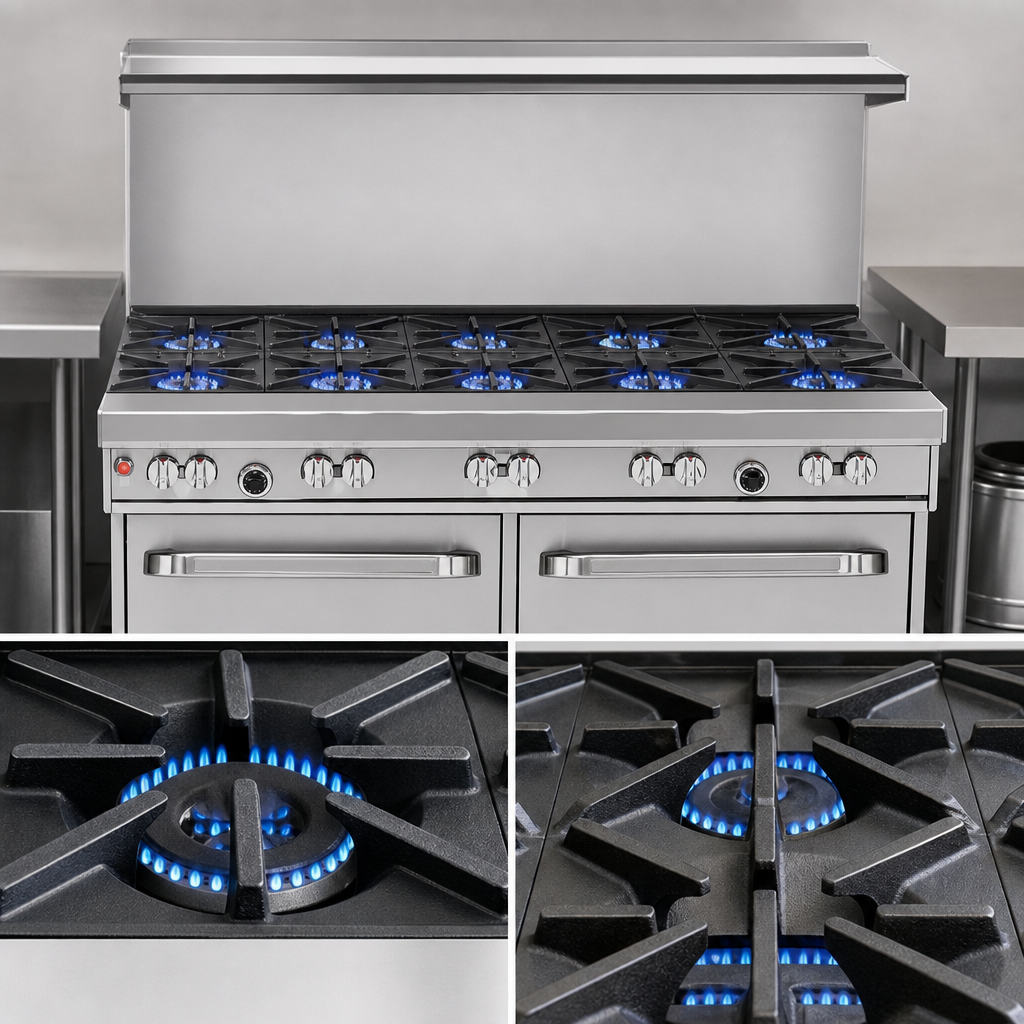

  • 10 open burners – 330,000 BTU total
    • 5 × 33K star/​sauté burners (front)
    • 5 × 33K lifetime non-clog burners (rear)
  • Standing pilots with front gas shut-off for the entire range

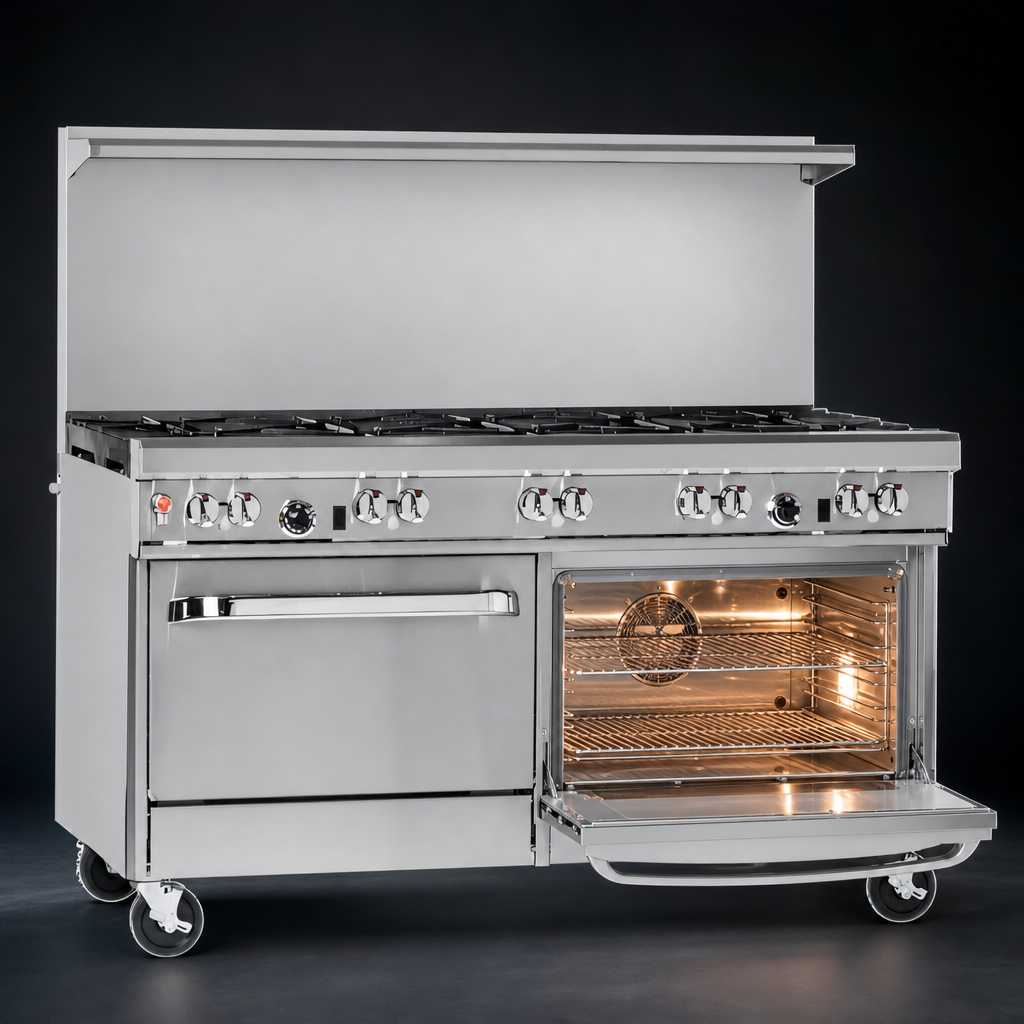

  • 32,000 BTU convection oven with battery spark ignition, 175–550 °F thermostat & 3 chrome racks (5 positions)
  • Stainless steel cabinet base for dry storage (doors available at no charge)
  • 22.5" flue riser with heavy-duty stainless shelf for plating or warming
  • All-stainless front, sides, rail & shelf plus 6" adjustable stainless legs
  • Factory-installed ¾" regulator; ready for natural gas or LP

Built for Everyday Abuse

  • Four removable cast-iron grate sections; rear grate handles 14" stockpots
  • Porcelain-enamel, coved-corner oven cavity wipes clean fast
  • ½ HP convection fan motor with permanently-lubricated bearings
  • Spring-assisted oven door rated for thousands of cycles
  • Cool-touch 4" stainless front rail helps contain spills

Specifications

Overall width 60.75"  (1543 mm)
Overall depth 42.13"  (1070 mm)
Cook-top height 37"  (940 mm) on 6" legs
Height w/ flue riser 59.5"  (1511 mm)
Total input 362,000 BTU/hr (Natural Gas)
Gas connection ¾" NPT female (right-hand side)
Min. inlet pressure 7" W.C. NAT / 11" W.C. LP
Electrical (oven fan) 115 V, 1 ph, 5.9 A  |  cord & plug included
Oven interior 14" H × 26" W × 24" D, porcelain enamel
Certifications CSA, NSF
Warranty 1 year parts & labor

What’s Included

  • (3) chrome oven racks
  • Battery pack for spark ignition
  • Factory pressure regulator & owner’s manual

Popular Options & Accessories

  • Stainless cabinet doors (no-charge)
  • All-swivel casters with front locks
  • 3'–5' quick-disconnect gas hose (ANSI Z21.69)
  • 5" or 10" flue riser
  • Salamander or cheesemelter mounting kits
  • Extra oven racks

Need a custom top? Southbend’s Ultimate series can be built with griddles, charbroilers, Pyromax™ burners and more—contact us for details.

Installation note: For non-quarry tile floors, oversized cookware (12"+ pans) on the front row, or direct flue connections, please review Southbend’s guidelines to protect your range and warranty.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

60.75in

Depth

44.5in

Shipping Weight

1075.0lbs

Top

(10) open burners

Exterior Finish

stainless steel front & sides

Vent

backriser with hi-shelf

Base

(1) convection oven, (1) cabinet

Specifications

Ultimate Restaurant Range, gas, 60", (5) star/sauté burners front, (5) non-clog burners rear, standard grates, standing pilot, (1) convection oven with battery spark ignition, (1) cabinet base, includes (3) racks, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 362,000 BTU, CSA, NSF
