Southbend (Middleby) 4604AC-7L Ultimate Gas Ranges

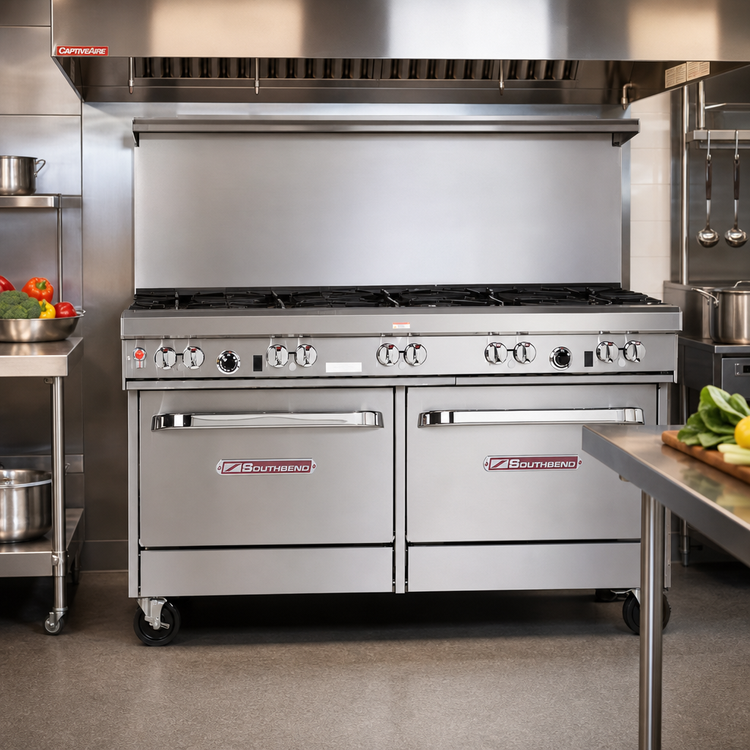

Southbend Ultimate 60" Gas Restaurant Range

Engineered for demanding commercial kitchens, the Southbend Ultimate 60" Range combines four different burner styles, a full-size convection oven, and a stainless storage cabinet into one rugged, NSF-listed workstation. Get the speed of sauté flames, the stamina of non-clog burners, and the brute power of patented Pyromax™ technology — all on the same cooktop.

Power & Versatility on the Cooktop

• (2) 33,000 BTU star/sauté burners (front right) for quick heat-up and precise control.
• (2) 33,000 BTU non-clog burners (rear right) designed to stay clean under heavy use.
• (4) 40,000 BTU Pyromax™ burners (left) with built-in drip rings for maximum output.
• Four removable cast-iron grate sections; rear grates accept 14" stock pots.
• Standing pilots for instant, reliable ignition on all open burners.
• 4" deep stainless front rail and a 22-1/2" flue riser with heavy-duty plate shelf.

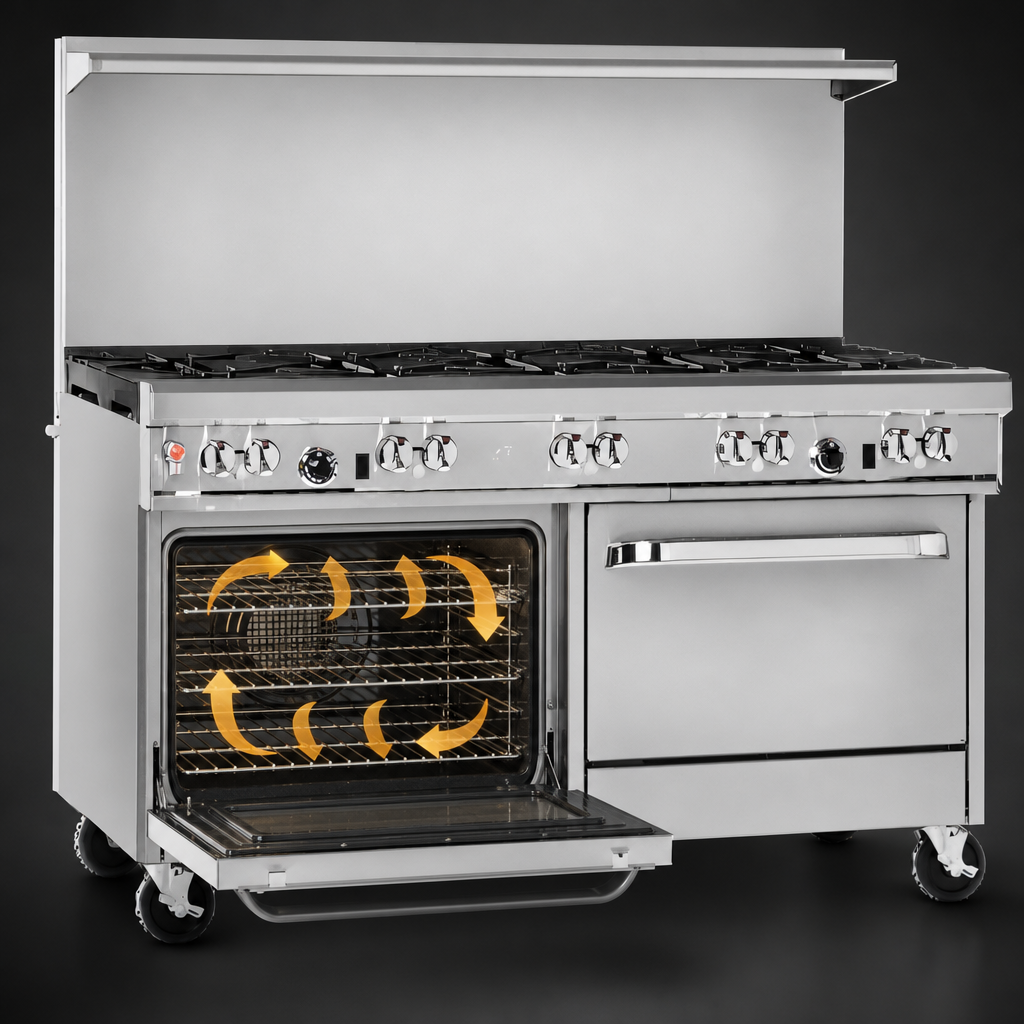

High-Performance Convection Oven

• 32,000 BTU battery-spark-ignited burner.
• 175 °F – 550 °F thermostat range.
• 14"H × 26"W × 24"D porcelain-enameled cavity fits full-size sheet pans in either direction.
• (3) nickel-plated racks with 5 position rails.
• Spring-assisted, counter-balanced door for effortless, one-hand operation.

Stainless Steel Cabinet Base

• Full-width storage compartment keeps pans, lids, and smallwares organized.
• Optional hinged doors available at no additional cost (factory-installed).

Built to Last

• All-stainless front, sides, flue riser, shelf, and 6" adjustable legs.
• Front-mounted manual gas shut-off and factory-installed regulator.
• CSA certified and NSF listed; approved for installation on combustible floors with legs or casters.
• Backed by a 1-year limited parts & labor warranty with nationwide service support.

Key Specifications

Looking for a different burner mix, charbroiler, or griddle? The Ultimate Series is available in dozens of factory-configured layouts — ask us for details.
