Southbend (Middleby) 4604AC-6L Ultimate Gas Ranges
Description

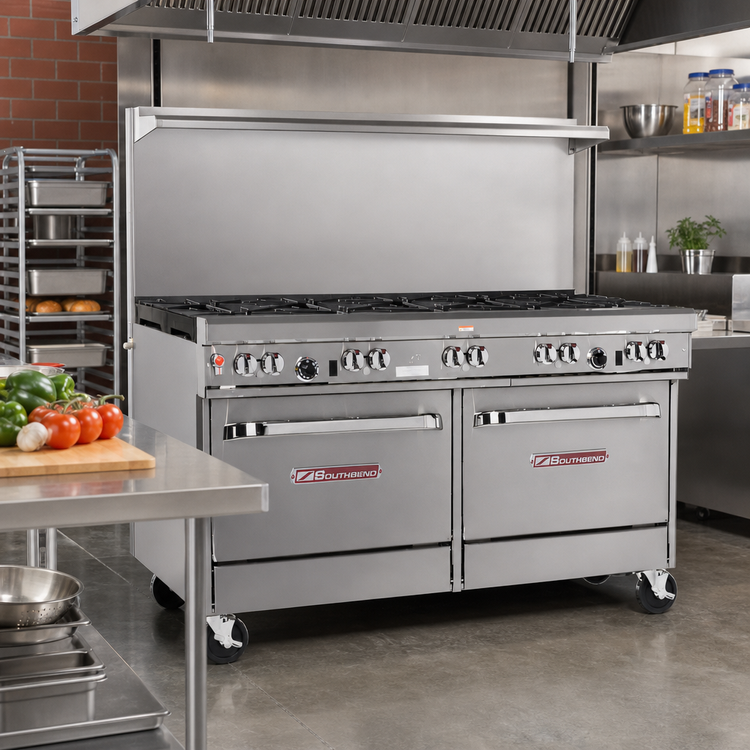

Southbend “Ultimate” 60" Gas Restaurant Range
Custom burner mix • Convection oven & cabinet base • 343,000 BTUBuilt for high-volume kitchens that refuse to compromise, the Southbend Ultimate 60" range combines heavy-duty open-top performance with fast, even convection baking—all in one stainless-steel workhorse that carries full CSA & NSF approvals.
Key cooking power
- Nine open burners delivering a massive 343,000 BTU total input:
- (3) 33K BTU cast-iron Star/Sauté burners – front left
- (2) 40K BTU Pyromax high-output burners – rear left
- (2) 33K BTU Star/Sauté burners – front right
- (2) 33K BTU Non-clog burners – rear right
- Standing pilots on all open tops for instant lighting

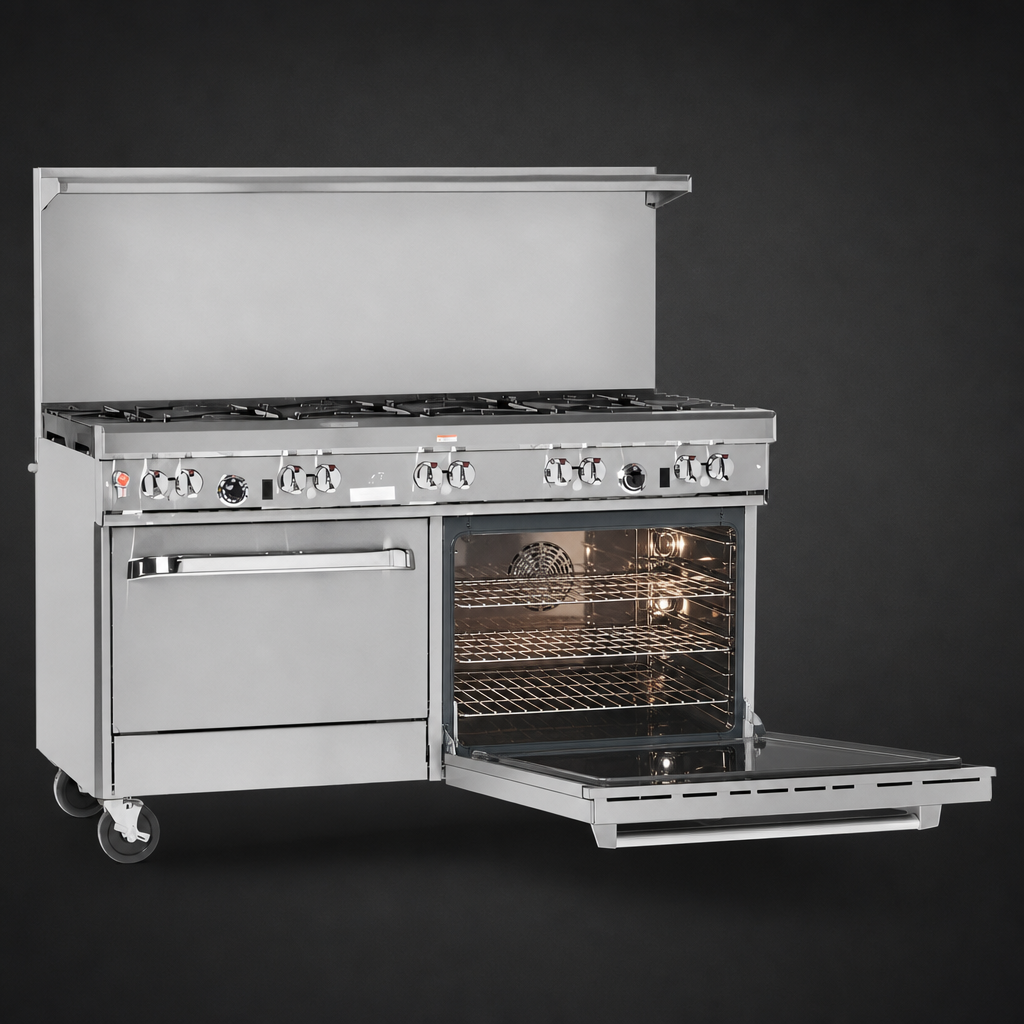

- One 32K BTU convection oven base with battery spark ignition & fan-cooled even heat
- Three heavy-duty oven racks with five‐position side rails
- 22.5" flue riser with integrated heavy-duty shelf—perfect for holding pans & spices
Built to last in the toughest kitchens
- All-stainless front, sides, 4" deep front rail & flue riser shelf
- Removable cast-iron grates (rear sections accept 14" stock pots)
- (2) full-length drip trays beneath the burners for easy clean-up
- Spring-assisted, counter-weighted oven door
- 6" adjustable stainless legs for level installation on uneven floors
- Factory-installed 3/4" gas pressure regulator & front-mounted master gas shut-off
Performance & utility specs
| Overall width | 60 3/4" (1543 mm) |
|---|---|
| Overall depth | 34" (864 mm) |
| Cook-top height | 37" (940 mm) |
| Burner BTU (open top) | 343,000 BTU total |
| Oven BTU / temp range | 32,000 BTU • 175-550 °F (79-288 °C) |
| Oven interior (H × W × D) | 14" × 26" × 24" |
| Electrical (convection motor) | 115 V / 5.9 A, 6' cord & NEMA 5-15 plug |
| Gas connection | 3/4" NPT, min. 7" WC Nat / 11" WC LP inlet pressure |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see full terms) |
What’s included
- (3) removable oven racks
- Stainless open cabinet base (door kit available at no charge)
- Factory pressure regulator & battery pack for spark ignition
- Comprehensive owner’s/installation manual
Intended for commercial use under a properly ventilated hood. Avoid allowing cookware larger than 12" to extend over the front rail to prevent heat damage.
