Southbend (Middleby) 4604AC-5R Ultimate Gas Ranges

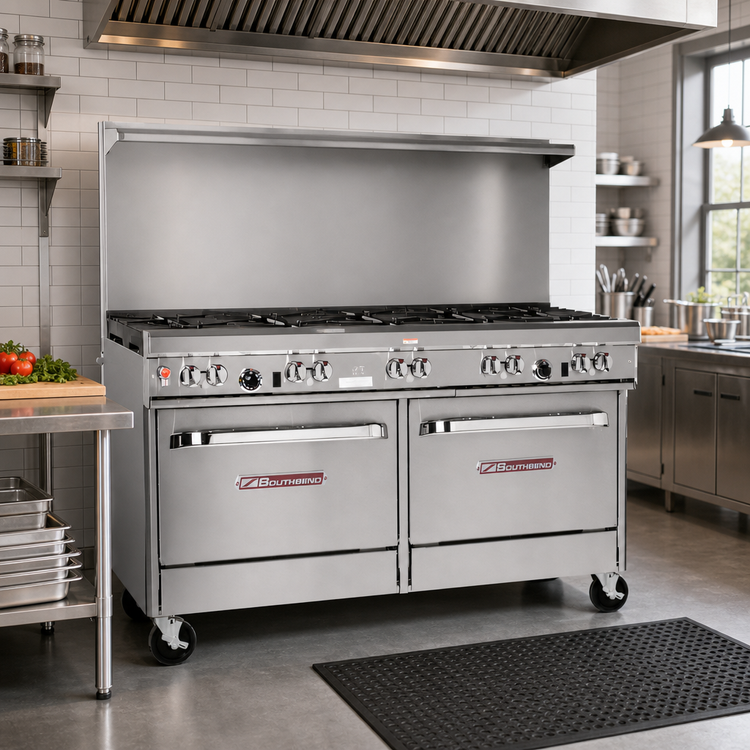

Southbend Ultimate 60" Gas Restaurant Range – 9-Burner / Convection Oven + Cabinet Base

Engineered for high-volume restaurants that refuse to compromise on versatility or durability, the Southbend Ultimate 60" range combines three burner technologies with a powerful convection oven and convenient storage base—all in one stainless-steel workhorse built to thrive on the toughest cook lines.

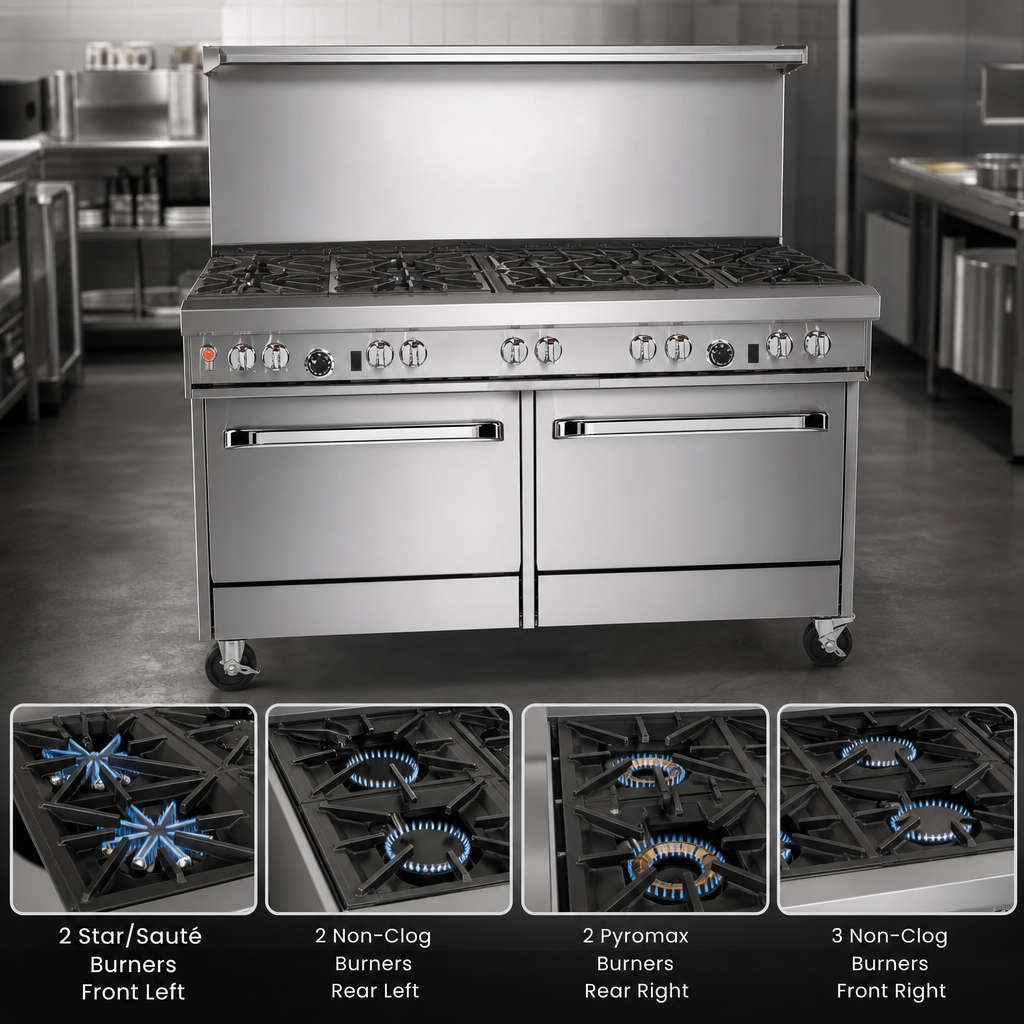

• 3 × 33,000 BTU lifetime non-clog burners (front right) for everyday sauté & sauce work
• 2 × 40,000 BTU patent-pending Pyromax™ power burners (rear right) – rapid boil & stockpot supremacy
• 2 × 33,000 BTU star/​sauté burners (front left) deliver even, edge-to-edge flame distribution
• 2 × 33,000 BTU non-clog burners (rear left) keep back-line production humming
• Heavy-duty cast-iron grates handle up to 14" stock pots on the rear and lift out for easy cleaning
• 27"-deep cooking surface & 4" stainless front rail give chefs room to work without crowding

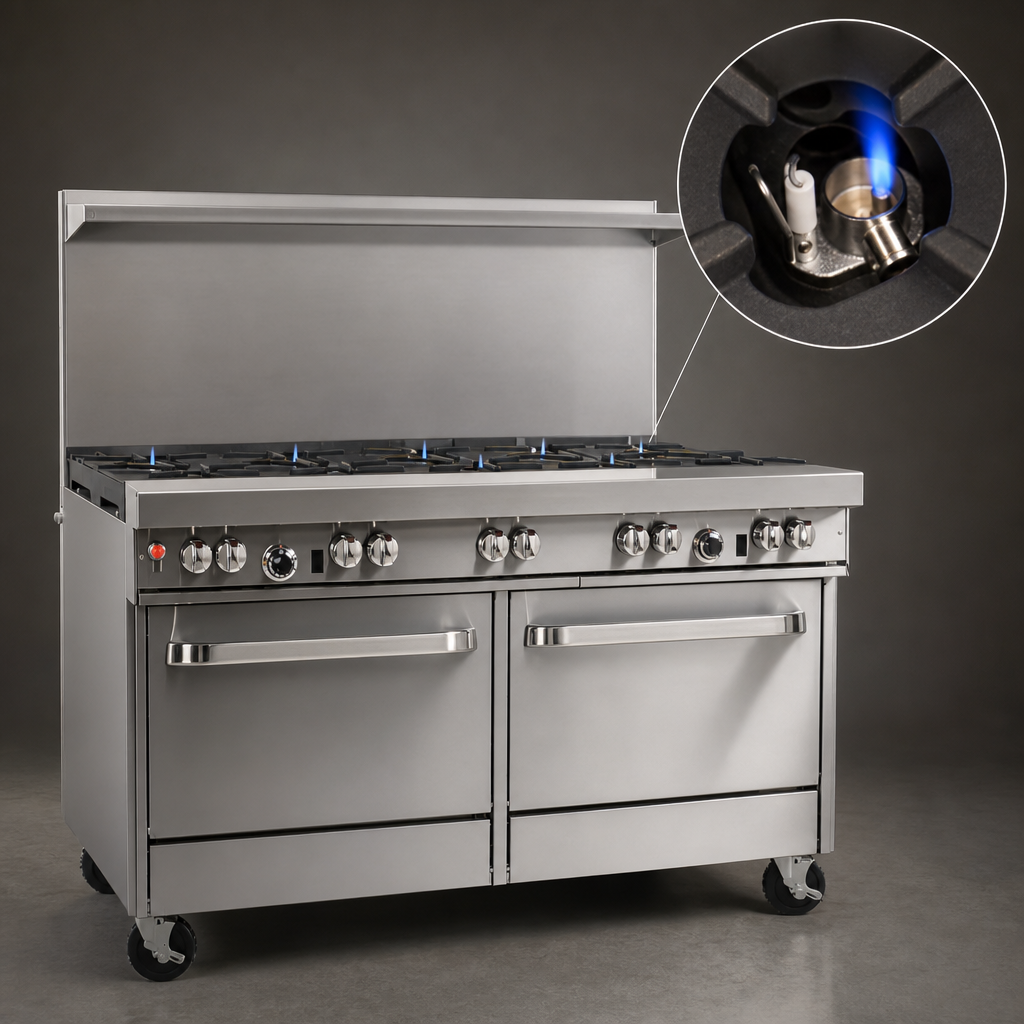

• Standing pilots for instant ignition plus a front-mounted manual gas shut-off for total-range safety

• 32,000 BTU natural-gas burner with battery-spark ignition—no external electricity needed for flame lighting
• Full-size porcelain-enamel cavity (14"H × 26"W × 24"D) resists corrosion and wipes clean quickly
• Temperature range 175 °F – 550 °F controlled by a snap-action thermostat
• 1/2 HP, 115 V fan motor (5.9 A) delivers even heat circulation; on/off switch lets you run the oven as a static bake chamber when desired
• Includes 3 chrome racks with 5 position rails for maximum pan flexibility

• All-stainless front, sides, high-shelf & 22-1/2" flue riser resist dents, splashes and daily wear
• 6" stainless adjustable legs level the unit on uneven floors (casters optional)
• Factory-installed pressure regulator ensures consistent performance straight out of the crate
• Front-located 3/4" gas connection simplifies installation & service access

• Southbend Ultimate 60" range configured as listed above
• 3 convection-oven racks
• 22-1/2" flue riser with heavy-duty storage shelf
• Factory pressure regulator & owners/installation manual

Need doors for the cabinet base, casters, or salamander mounts? A wide variety of factory options are available—ask your foodservice consultant for details.
