Southbend (Middleby) 4604AC-4GR Ultimate Gas Ranges
Description

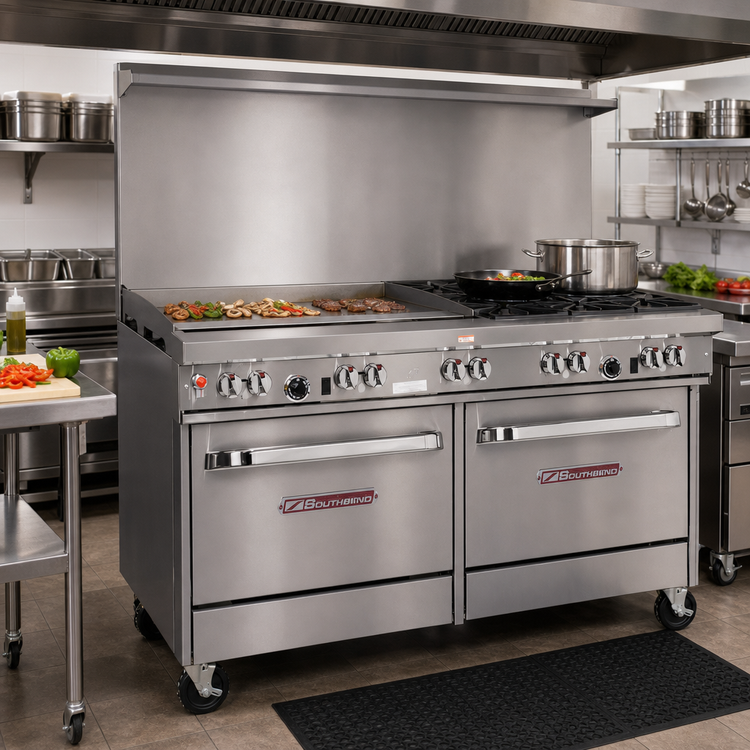

Southbend Ultimate 60" Gas Restaurant Range with 48" Right-Side Griddle & Convection Oven
178,000 BTU • Natural Gas • Model 460 Split-Top ConfigurationCombine the searing power of Southbend’s patented open burners, a high-capacity 48-inch griddle, and a full-size convection oven—all in one rugged 60-inch platform. Built for high-volume restaurants that demand versatility, speed, and rock-solid reliability.
Highlights
- (1) 33,000 BTU star/sauté burner (front) for fast, even heat distribution.
- (1) 33,000 BTU non-clog burner (rear) with lifetime cast-iron design—perfect for stock pots up to 14".

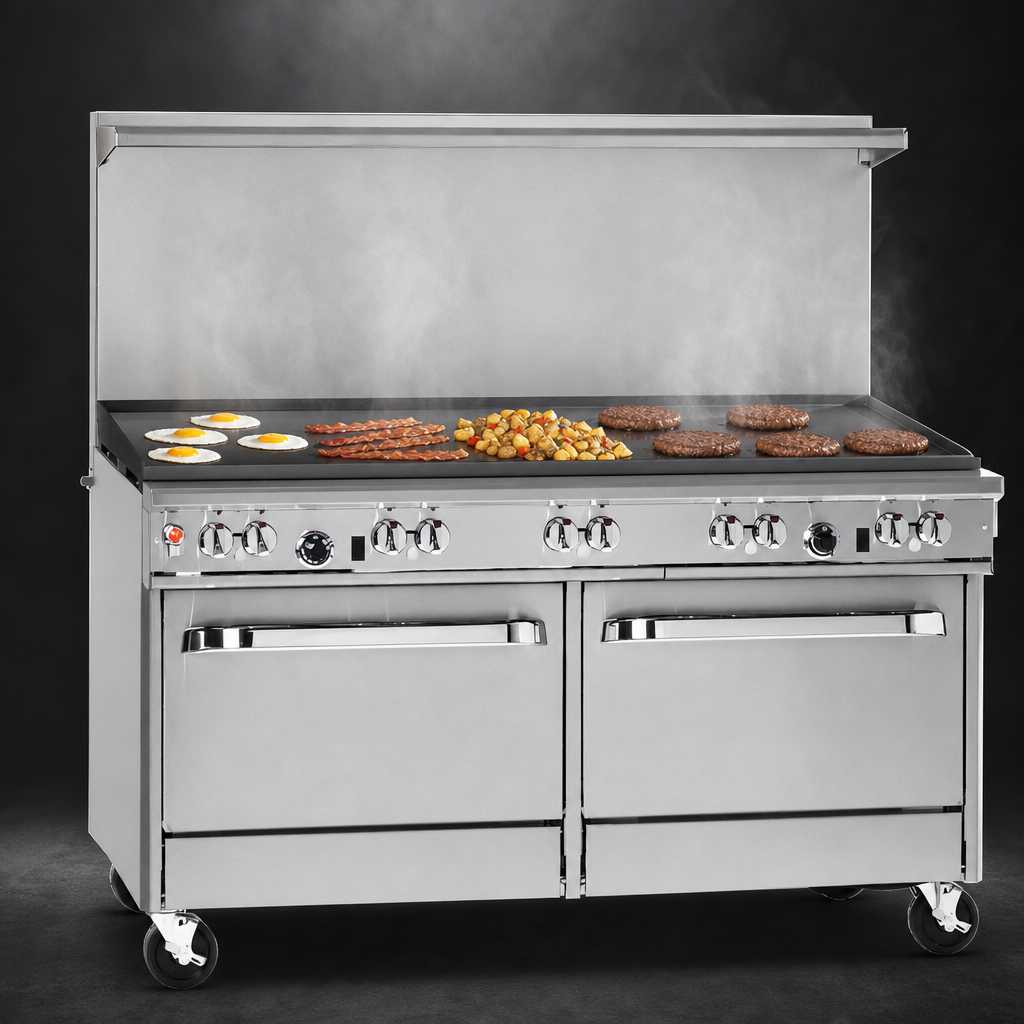

- 48" griddle on the right: 1" thick polished steel plate, manual controls, 80,000 BTU.

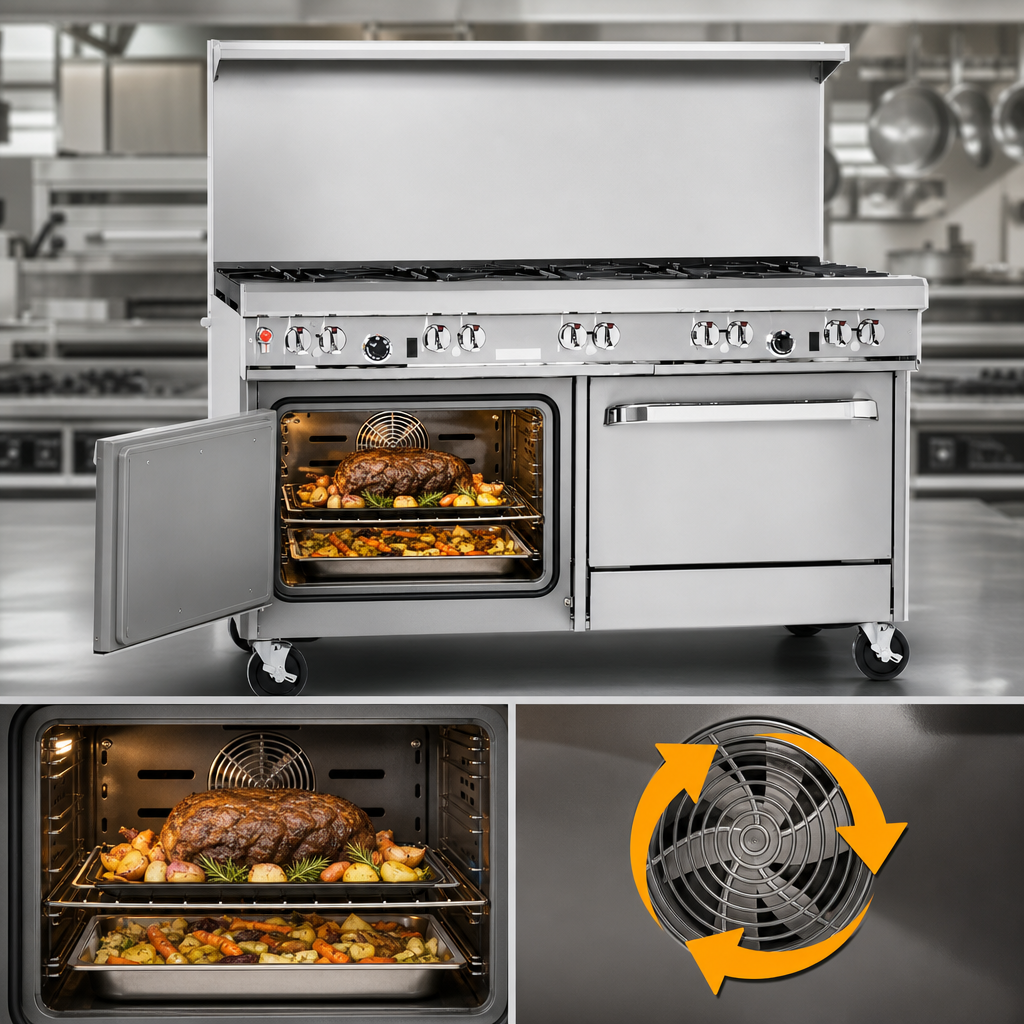

- 32,000 BTU convection oven with battery spark ignition, 175–550 °F thermostat and three chrome racks (5 positions).
- Stainless steel open cabinet base on the left keeps sheet pans, hotel pans, and smallwares within reach.
- 4" stainless bull-nose rail, front-mounted master gas shut-off and factory-installed regulator for safe, simple operation.
- 22.5" flue riser with integrated heavy-duty shelf—ideal for resting plated items or small cookware.
- 6" adjustable stainless legs; rear flue-by-design allows zero side clearance to non-combustibles.
- cCSAus, CSA Flame, CSA Star & NSF listed for worry-free code compliance.
Specification Sheet
| Overall width | 60 ¾" (1543 mm) |
|---|---|
| Overall depth (with convection oven) |
42 ⅛" (1070 mm) |
| Cooking top height | 37" (940 mm) |
| Griddle surface | 48" W × 27" D, 1" thick polished steel |
| Open burners | (1) 33 k BTU star/sauté (front) | (1) 33 k BTU non-clog (rear) |
| Oven interior (convection) | 14" H × 26" W × 24" D, porcelain enamel |
| Total input | 178,000 BTU/hr (natural gas) |
| Gas connection | ¾" NPT female, 7" W.C. inlet (Nat.) |
| Electrical (oven fan) | 115 V, 1Ø, 5.9 A, 6' cord & 3-prong plug |
| Crated weight | Approx. 1,075 lb (488 kg) |
| Warranty | 1-year limited parts & labor |
