Southbend (Middleby) 4604AC-3TR Ultimate Gas Ranges
$18,934.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) 4604AC-3TR Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4604AC-3TR Ultimate Gas Ranges
$18,934.00
Unit price
/
Unavailable
Description

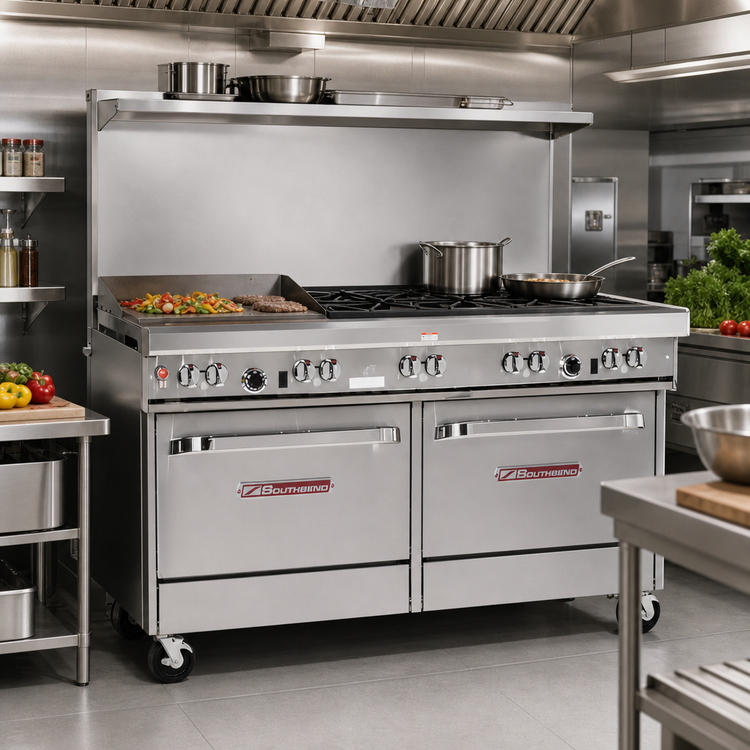

Southbend Ultimate 60" Gas Restaurant Range
2 Star Burners + 2 Non-Clog Burners | 36" Thermostatic Griddle | Convection Oven & Cabinet BaseEngineered for high-volume kitchens that refuse to compromise, the Southbend Ultimate 60" Range blends heavy-duty open-top performance with an extra-large thermostatic griddle and a powerful convection oven—all in one, stainless-steel workhorse.
Key Advantages

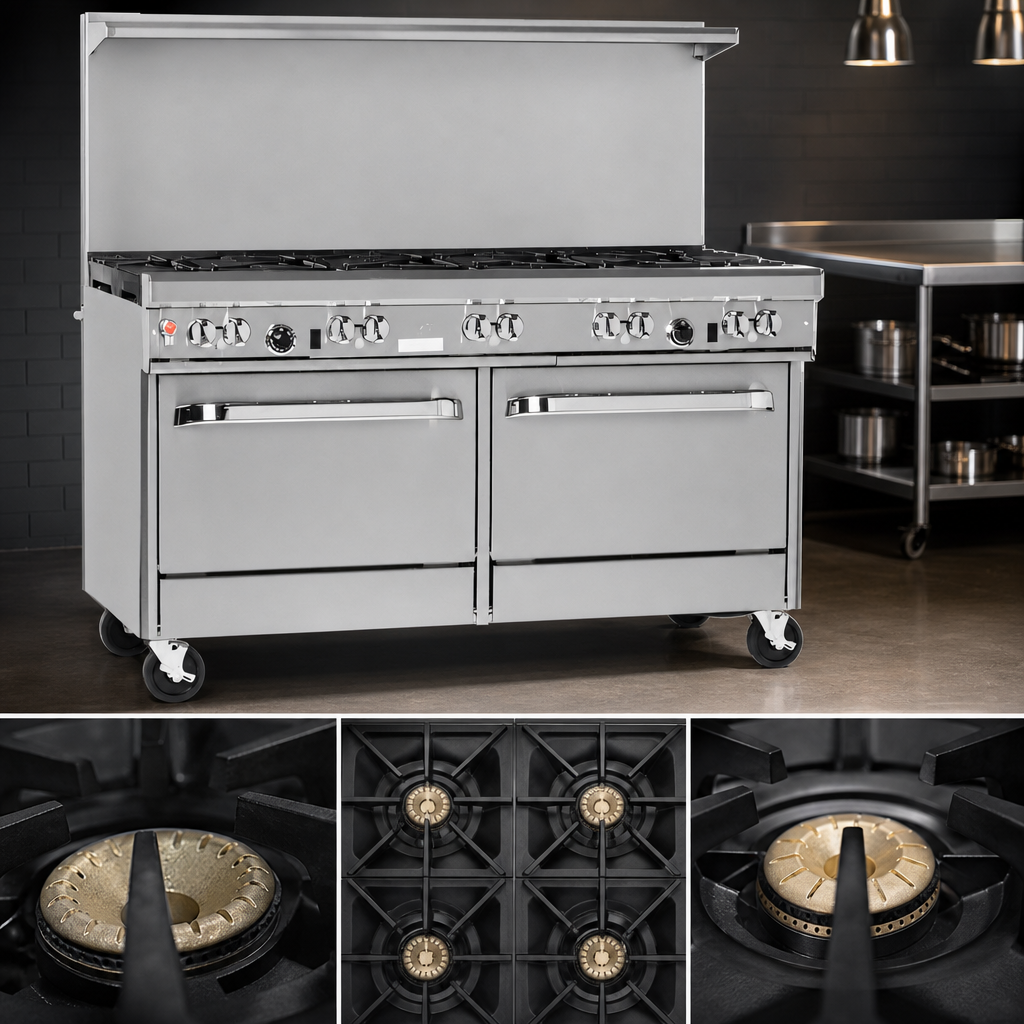

- Four 33,000 BTU open burners
- (2) 33 K star/sauté burners in front for fast, even heat
- (2) 33 K lifetime non-clog burners in rear for stockpots up to 14"

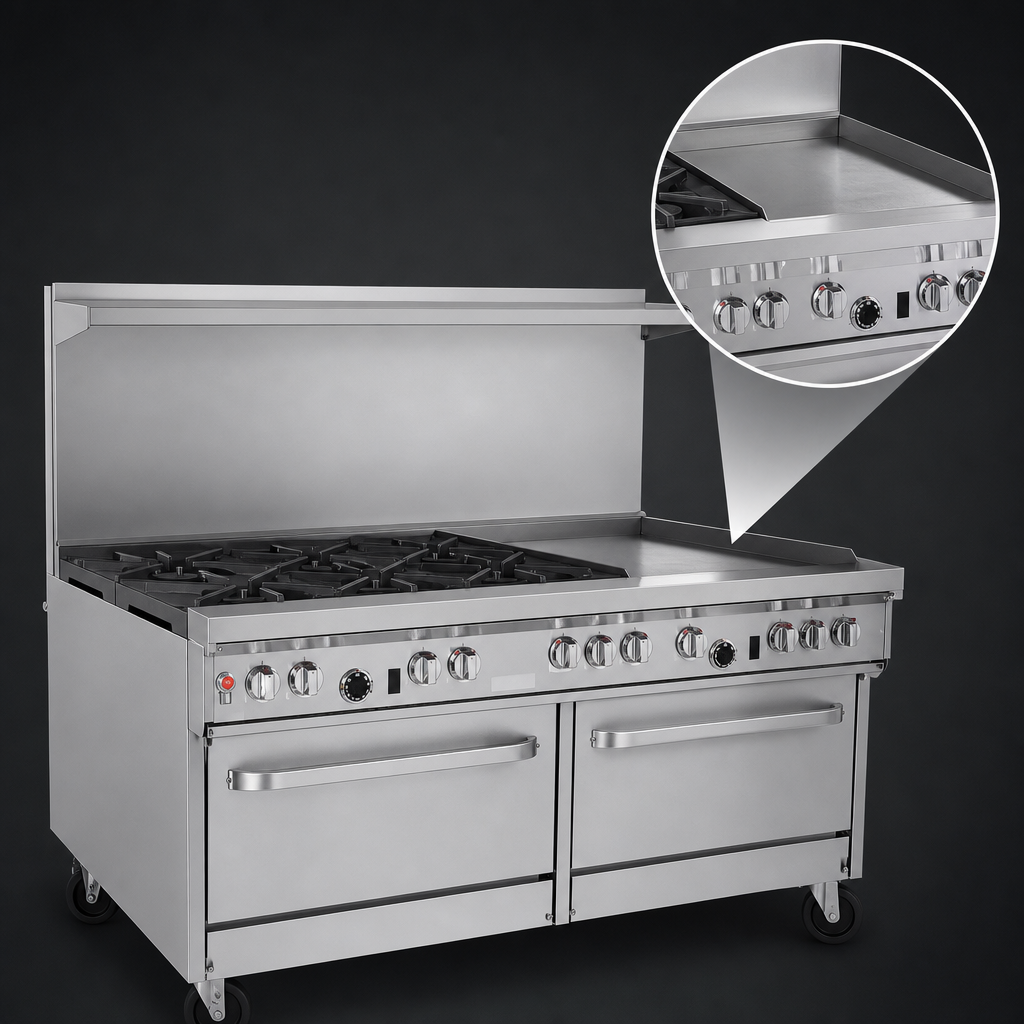

- 36" right-side griddle
- 1/2" polished steel cooking surface with raised sides
- Thermostatic controls hold 200 – 550 °F for all-day consistency
- Left-side convection oven (32,000 BTU) with battery spark ignition
- Porcelain-enameled cavity 14"H × 26"W × 24"D
- Includes (3) racks, 5 position rails, 175 – 550 °F thermostat
- 24" stainless cabinet base under the griddle—instant sheet-pan storage
- 22-1/2" flue riser with integrated shelf keeps plates & spices within reach
- Front-mounted gas shut-off and factory pressure regulator
- 6" adjustable stainless legs for easy leveling; casters optional
- Stainless steel front, sides, and shelf resist daily wear and tear
Performance Specifications
| Overall width | 60 3⁄4" (1543 mm) |
|---|---|
| Overall depth | 34" to front rail | 42 1⁄8" overall with oven door (1070 mm) |
| Cook-top height | 37" (940 mm) |
| Height w/ flue riser | ≈ 59 1⁄2" (1511 mm) |
| Total input | 228,000 BTU/hr (Natural Gas) |
| Open burners | (4) × 33 K BTU (2 star + 2 non-clog) |
| Griddle | 36" W × 27" D plate · 64 K BTU · thermostatic |
| Oven type | Convection · 32 K BTU · 115 V, 5.9 A cord & plug |
| Oven capacity | Full-size sheet pans fit left–right or front–back |
| Gas connection | 3/4" NPT (rear, left or right according to griddle location) |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year limited parts & labor (commercial use) |
What’s Included
- Range with 22-1/2" flue riser & shelf
- (4) removable cast-iron grates & dual drip trays
- (3) convection oven racks
- Factory installed gas pressure regulator
- User & service manuals
Professional installation under a vented hood and connection to a 7" W.C. minimum natural-gas supply are required.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, cCSAus, CSA Star, CSA Flame
Height
59.5in
Width
60.75in
Depth
44.5in
Shipping Weight
1075.0lbs
Control Type
thermostatic controls
Top
(4) open burners, (1) 36" griddle with thermostat
Base
(1) convection oven, (1) cabinet
Exterior Finish
stainless steel front & sides
Vent
backriser with hi-shelf
Plate Thickness
.500" = 1/2"
Specifications
Ultimate Restaurant Range, gas, 60", (2) star/sauté burners front, (2) non-clog burners rear, standard grates, (1) 36" griddle right, thermostatic controls, standing pilot, (1) convection oven with battery spark ignition, (1) cabinet base, includes (3) racks, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 228,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
