Southbend (Middleby) 4604AC-3GR Ultimate Gas Ranges
$17,207.00
Unit price
/
Unavailable
Description
Southbend Ultimate 60" Gas Restaurant Range
2 Star/Sauté Burners • 2 Non-Clog Burners • 36" Right-Side Griddle • Convection Oven + Cabinet BaseBuilt for kitchens that refuse to compromise, the Southbend Ultimate Series delivers unmatched power, flexibility, and longevity in a single 60-inch footprint.
Why You’ll Love It
- Blazing 228,000 BTU total input handles your peak-hour volume with ease.
- Split open-top layout: (2) 33,000 BTU star/sauté burners in front for rapid heat response + (2) 33,000 BTU lifetime-clog-free burners in back for stock pots.
- Roomy 36" x 24" polished steel griddle (½" thick) on the right—perfect for everything from breakfast to burgers.

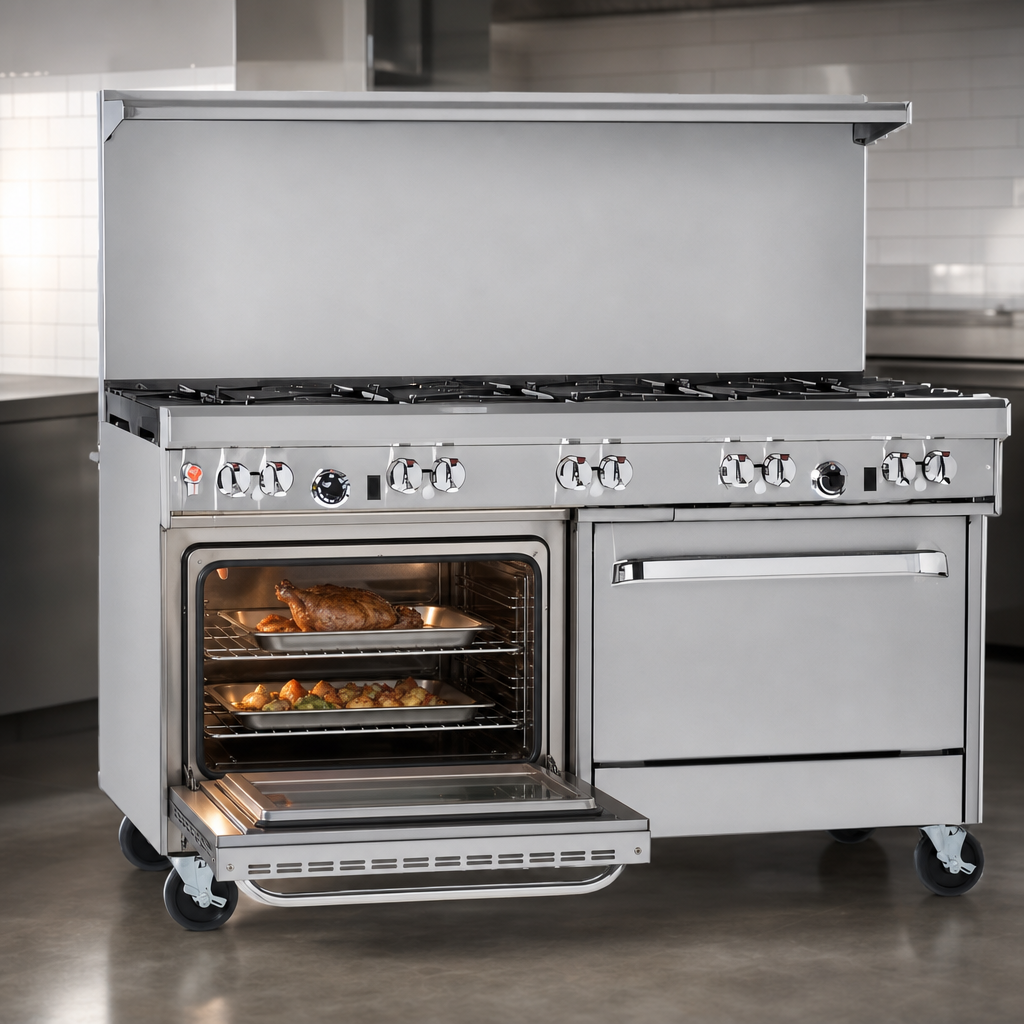

- High-performance gas convection oven (left base) circulates heat evenly; three racks included, five positions.
- Convenient stainless cabinet base (right) keeps sheet pans, utensils, or smallwares close at hand.
- 22½" flue riser with heavy-duty shelf adds convenient plating or pan storage space.
- Battery-spark ignition for the oven, plus standing pilots for open burners—no electricity needed to light.
- All-stainless front, sides, shelf & 4" front rail withstand years of heavy commercial use.
- Front-mounted main gas shut-off and factory-installed regulator simplify installation & service.
- cCSAus, CSA Flame, CSA Star & NSF listed for code-compliant peace of mind.
At-a-Glance Specs
| Overall width | 60 3⁄4" (1543 mm) |
|---|---|
| Overall depth | 42 1⁄8" (1070 mm) |
| Cooking surface height | 37" (940 mm) |
| Flue riser height | 22 1⁄2" (572 mm) • overall height 59 1⁄2" (1511 mm) |
| Open burners | (2) 33,000 BTU star/sauté (front) | (2) 33,000 BTU non-clog (rear) |
| Griddle | 36" W × 27" D, ½" plate, 64,000 BTU (manual control), right side |
| Oven type / BTU | Gas convection, 32,000 BTU, 175–550 °F thermostat |
| Oven interior (WxDxH) | 26" × 24" × 14" • 3 racks / 5 positions |
| Base configuration | Left: Convection oven | Right: Stainless cabinet with adjustable shelf |
| Total input | 228,000 BTU/hr |
| Gas connection | ¾" NPT (minimum inlet — NAT 7" W.C., LP 11" W.C.) |
| Electric | 115 V / 60 Hz / 1-ph, 5.9 A (convection motor); 6' cord & 3-prong plug |
| Clearances | Combustible: 10" sides & rear (charbroiler N/A) | Non-combustible: 0" |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year limited parts & labor |
What’s in the Box
- (4) Removable cast-iron top grates
- (2) Full-width crumb/grease trays
- (3) Heavy-duty oven racks
- Factory-installed pressure regulator
- 6" stainless adjustable legs
- Owner’s manual & warranty registration card
For Commercial Use Only.
If oversized cookware (12" + diameter) is used, place it on rear burners to avoid excessive heat on the front rail and controls.
If oversized cookware (12" + diameter) is used, place it on rear burners to avoid excessive heat on the front rail and controls.
Need financing? Middleby Equipment Financing can turn this purchase into easy monthly payments—ask your sales rep for details.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, cCSAus, CSA Star, CSA Flame
Height
59.5in
Width
60.75in
Depth
44.5in
Shipping Weight
1075.0lbs
Base
(1) convection oven, (1) cabinet
Top
(4) open burners, (1) 36" griddle
Vent
backriser with hi-shelf
Exterior Finish
stainless steel front & sides
Plate Thickness
.500" = 1/2"
Specifications
Ultimate Restaurant Range, gas, 60", (2) star/sauté burners with standard grates, (2) non-clog burners rear, (1) 36" griddle right, standing pilot, (1) convection oven with battery spark ignition, (1) cabinet base, includes (3) racks, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 228,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
