Southbend (Middleby) 4604AC-2RR Ultimate Gas Ranges
Description
Southbend Ultimate ™ 60" Gas Restaurant Range
3 × Star/Sauté burners • 3 × Non-clog burners • 24" raised griddle-broiler • Convection oven & cabinet basePack six open burners, a precision raised griddle, a high-performance convection oven and built-in storage into a single 60-inch footprint. Southbend’s Ultimate Series delivers the rugged power and flexibility busy commercial kitchens demand.
Key Features
- Six open top burners: 3 × 33,000 BTU star/sauté (front) & 3 × 33,000 BTU lifetime non-clog (rear).

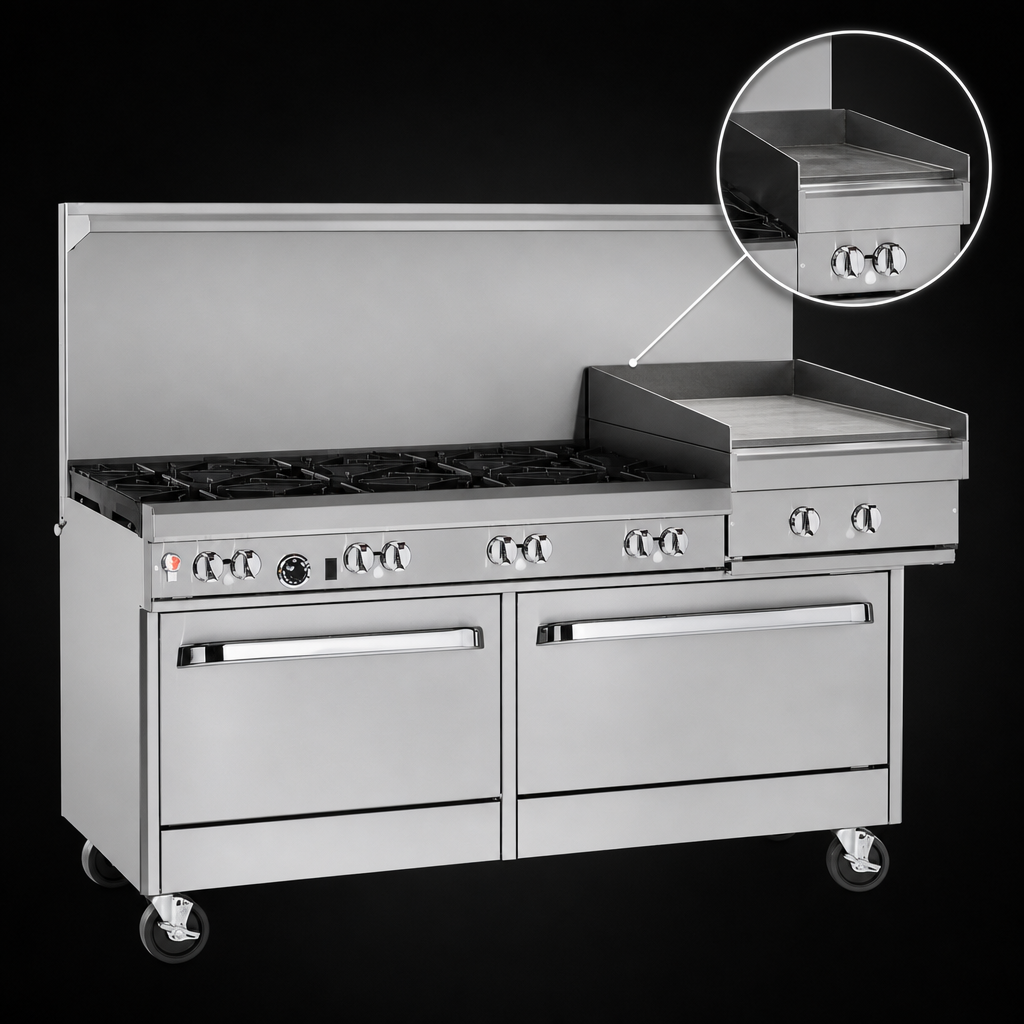

- 24" raised griddle with broiler beneath – ½" polished steel plate for searing, finishing and melts.
- 32,000 BTU convection oven with battery spark ignition, porcelain interior and (3) adjustable racks.
- Right-side stainless cabinet base keeps pans and smallwares within reach.
- 37" cooking height with a 4" deep stainless front rail for comfortable, ergonomic use.
- 22-½" flue riser with heavy-duty shelf for plating or utensil storage.
- All-stainless front, sides, shelf and 6" adjustable legs for long-life durability and easy clean-up.
- Front-mounted manual gas shut-off & factory-installed regulator for quick, safe installation.
Performance
- Total input: 263,500 BTU/hr – built for the rush.
- Standing pilots on open burners for instant ignition.
- 1/2 HP convection motor circulates heat evenly from 175 °F – 550 °F.
Specifications
| Model | Ultimate 60" Raised Griddle/Broiler Range |
|---|---|
| Gas Type | Natural gas (3/4" NPT connection, field-convertible to LP) |
| Total BTU Input | 263,500 BTU/hr |
| Burners | 3 × 33 k Star/Sauté (front) & 3 × 33 k Non-clog (rear) |
| Griddle/Broiler | 24" raised, manual control, ½" polished plate |
| Oven | 32 k BTU convection, 26" W × 24" D × 14" H cavity, 3 racks |
| Cooking Surface | 60-¾" W × 27" D cast-iron grates |
| Overall Dimensions | 60-¾" W × 42-⅛" D × 59-½" H (top of riser) |
| Electrical (oven fan) | 115 V / 5.9 A, 6' cord & plug |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor |
What’s Included
- (3) heavy-duty oven racks
- 22-½" flue riser with integrated shelf
- Factory pressure regulator & battery pack for spark ignition
Intended for commercial use only. Install under a properly sized ventilation hood and keep oversized cookware on rear burners to avoid front-rail overheating.
