Southbend (Middleby) 4604AA-7R Ultimate Gas Ranges
Description

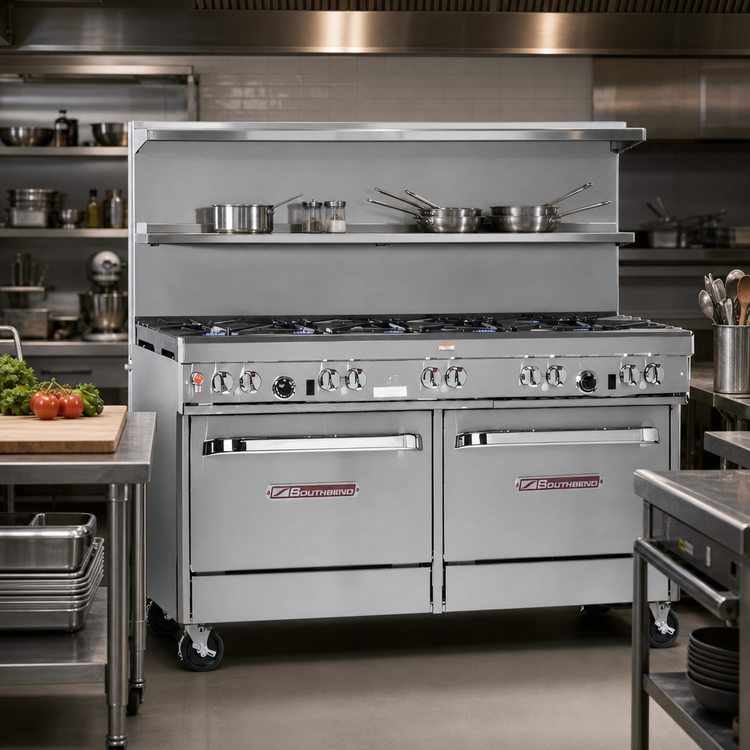

Southbend Ultimate 60" Gas Restaurant Range – Split Top
2 Star/Sauté • 2 Non-Clog • 4 Pyromax Burners | Dual Convection Ovens | 356,000 BTUGive your kitchen the muscle it deserves. The Southbend Ultimate 60" Restaurant Range combines eight high-performance open burners with two full-size convection ovens, all wrapped in a rugged stainless-steel cabinet that thrives in the most demanding commercial environments.
Performance at a Glance

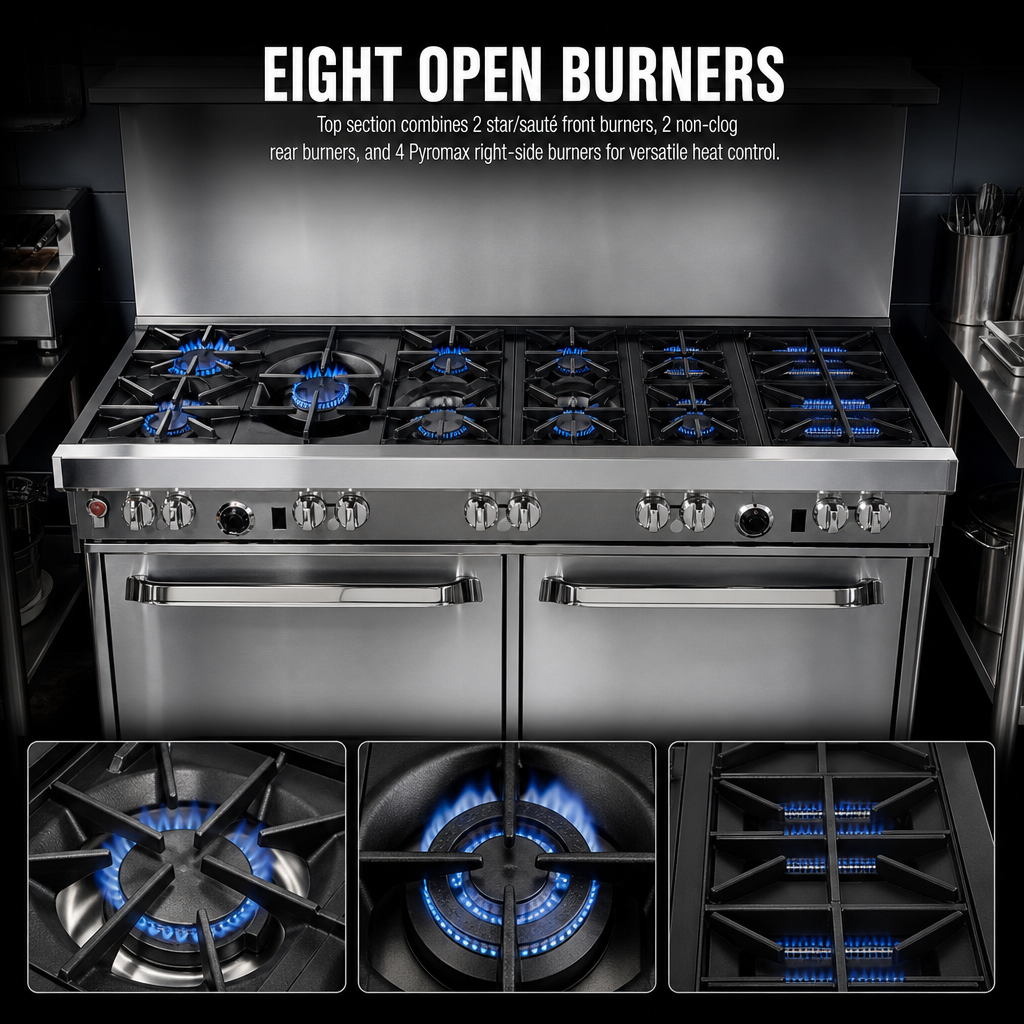

- Split burner layout for ultimate versatility:
- 2 × 33,000 BTU Star/Sauté burners (front left) – perfect for rapid sauté work
- 2 × 33,000 BTU lifetime Non-Clog burners (rear left) – handle stock pots up to 14"
- 4 × 40,000 BTU patented Pyromax burners (right) – deliver intense heat for searing & wok work
- Total input: 356,000 BTU/hr
- Standing pilots on open tops; battery-spark ignition on ovens – no external power or matches needed for burners

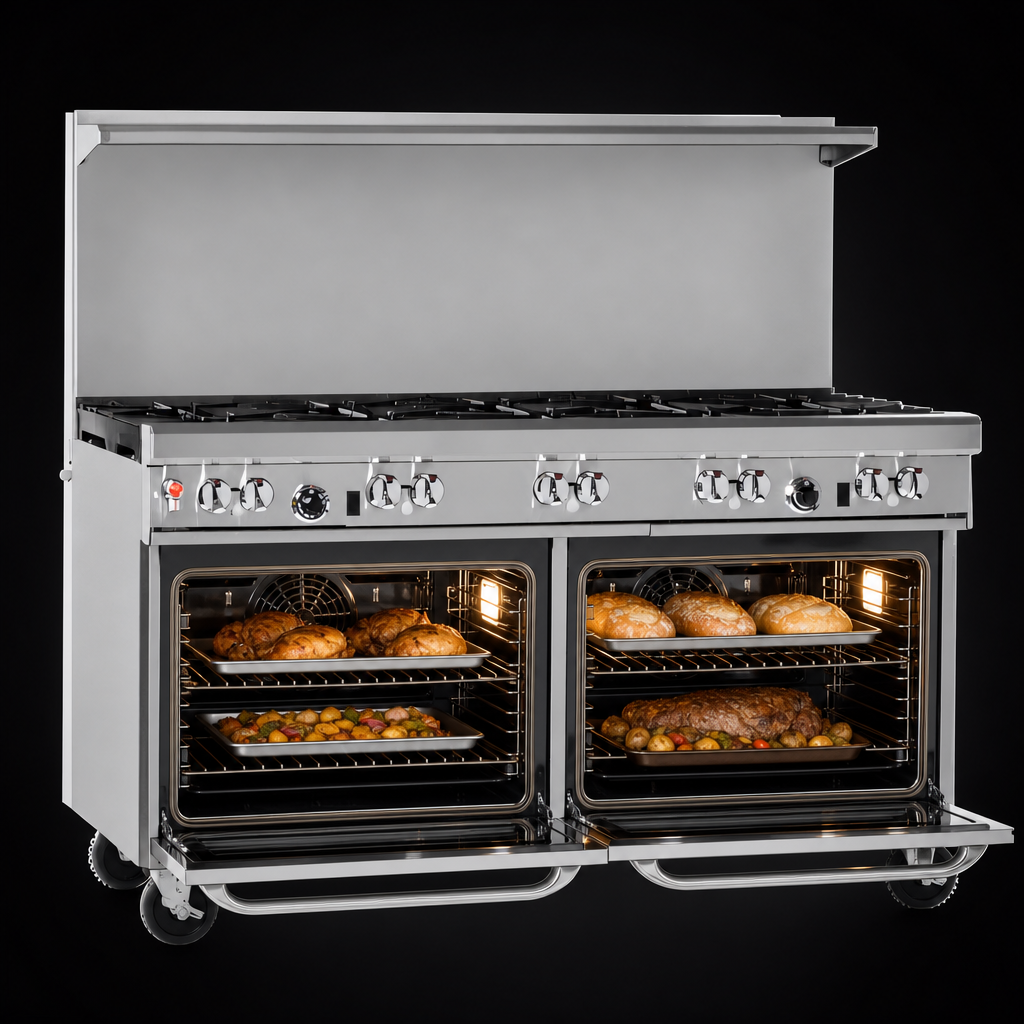

- Dual 32,000 BTU convection ovens with 5-position porcelain interiors & 3 racks each
- Temperature range 175 °F – 550 °F (79 °C – 288 °C)
- 22-1/2" stainless flue riser with heavy-duty utensil shelf keeps cookware within easy reach
- 4" stainless front rail plus removable drip trays for fast clean-up
- 6" adjustable stainless legs (optional casters available)
- Front-mounted manual gas shut-off & factory-installed regulator
- CSA & NSF certified – built for code-compliant commercial installations
Specifications
| Model | Ultimate 460-AA Split Top (60" Series) |
|---|---|
| Overall width | 60 3/4" (1543 mm) |
| Overall depth | 42 1/8" (1070 mm) |
| Cooking surface height | 37" (940 mm) |
| Cooking surface area | 27" deep; rear grates accept 14" stock pots |
| Open-top burners | 2 Star/Sauté & 2 Non-Clog @ 33,000 BTU each 4 Pyromax @ 40,000 BTU each |
| Ovens (qty 2) | 32,000 BTU convection, battery-spark ignition, porcelain interior 14"H × 26"W × 24"D |
| Total input | 356,000 BTU/hr |
| Gas connection | 3/4" NPT, rear; min. supply 7" W.C. (Nat.) |
| Electrical (ovens) | 115 V / 60 Hz / 1 ph, 5.9 A (factory cord & plug) |
| Construction | Stainless steel front, sides, shelf & front rail; spring-assisted oven doors |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see warranty terms) |
Need a different burner mix, griddle or charbroiler? Ask about Southbend’s factory-configured options & accessories.
