Southbend (Middleby) 4604AA-6R Ultimate Gas Ranges

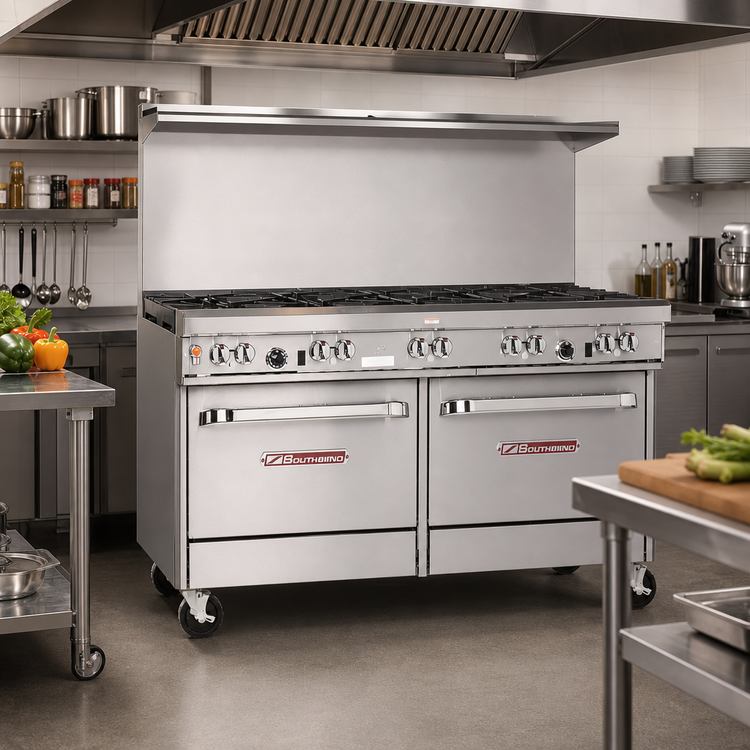

Southbend Ultimate 60" Gas Restaurant Range

Dominate every shift with the Ultimate Series—Southbend’s flagship range that fuses blistering burner output, full-size convection baking and rugged stainless-steel construction in one 60" powerhouse. Built for high-volume kitchens that demand nonstop performance.

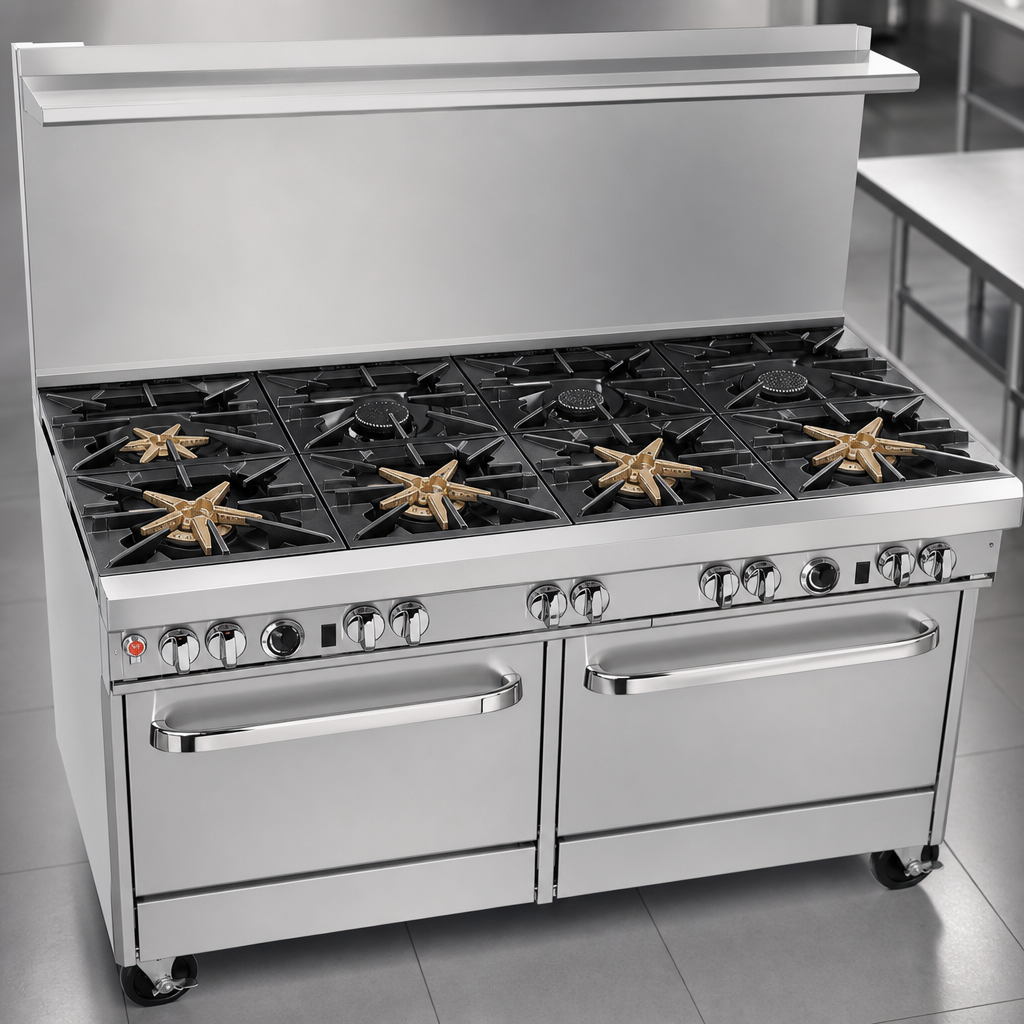

Open-Top Power & Precision

• (3) 33,000 BTU star/sauté burners – front right for fast, even pan work.
• (2) 40,000 BTU Pyromax burners – rear right for rapid boils & stockpots.
• (2) 33,000 BTU star/sauté burners – front left.
• (2) 33,000 BTU lifetime non-clog burners – rear left.
• Standing pilots with a single front-rail gas shut-off for the entire range.
• Four removable cast-iron grate sections; rear positions accept up to 14" pots.

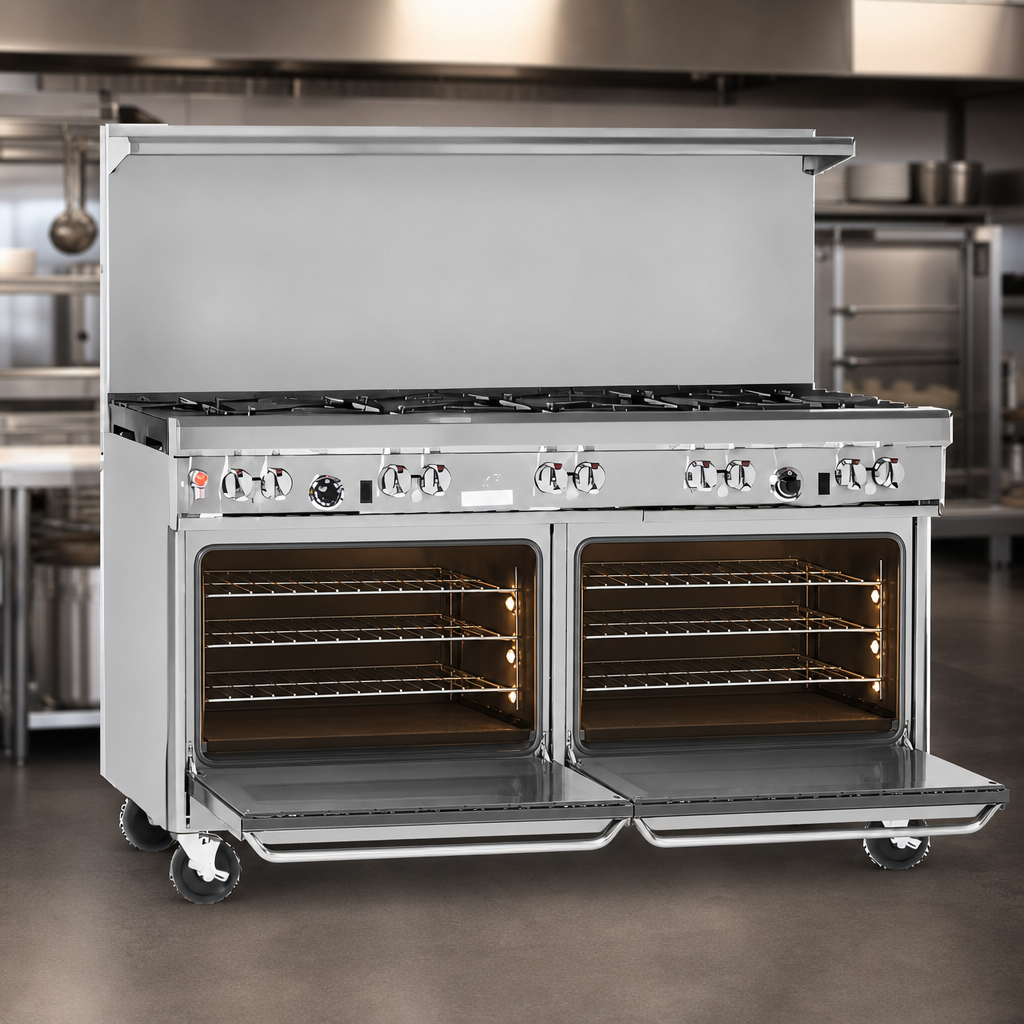

Dual Convection Ovens

• (2) 32,000 BTU convection ovens with battery-spark ignition—no match required.
• Thermostat range 175 °F – 550 °F (79 °C – 288 °C) for baking, roasting or finishing.
• 14" H × 26" W × 24" D porcelain interiors resist corrosion and wipe clean.
• Three racks per cavity; five rack positions maximize capacity.
• Quiet ½ HP fan motors (115 V, 5.9 A each) deliver even browning edge-to-edge.

Built to Survive the Rush

• Stainless front, sides, 22-½" flue riser and heavy-duty plate shelf.
• 6" adjustable stainless legs for a level, code-compliant install.
• 27"-deep cooking surface; ergonomic 37" working height.
• Factory-installed pressure regulator & manual gas shut-off.
• CSA & NSF certified; backed by a 1-year parts & labor warranty.

At-a-Glance Specifications

Need casters, salamander mounts or a shorter flue riser? Ask our team—Ultimate ranges are built to order.
