Description

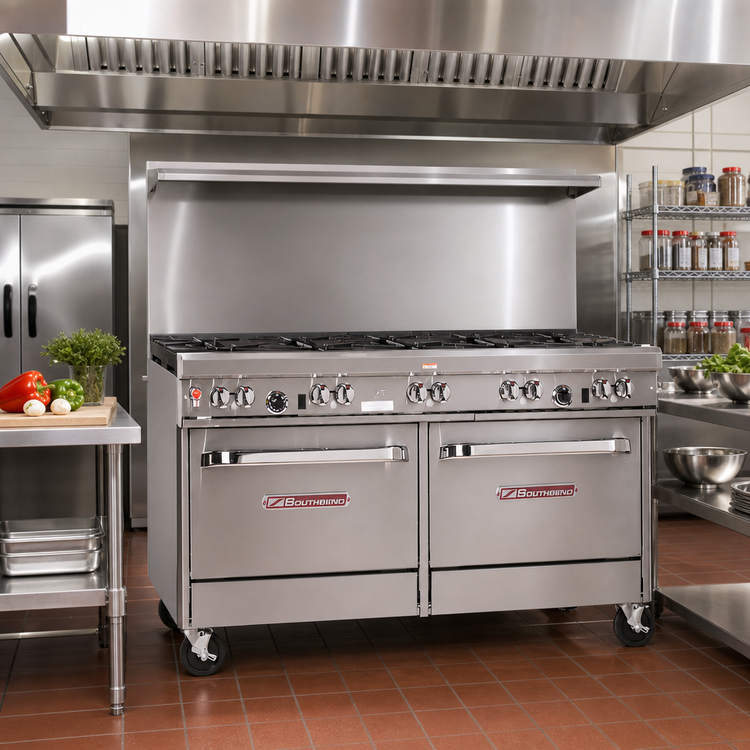

Southbend “Ultimate” 60" Gas Restaurant Range

9-burner split top with twin convection ovens – 375,000 BTU

Engineered for high-volume kitchens that demand power, flexibility and consistent results, the Southbend Ultimate 60" Restaurant Range combines patented high-output burners with bakery-grade convection ovens in an all-stainless body built for the rigors of daily service.

Why you’ll love it

  • Versatile 9-burner layout – quickly move from intense searing on Pyromax burners to gentle sautés on star burners.
  • Massive fire-power – a total 375,000 BTU quickly recovers between tickets and keeps pans screaming hot.

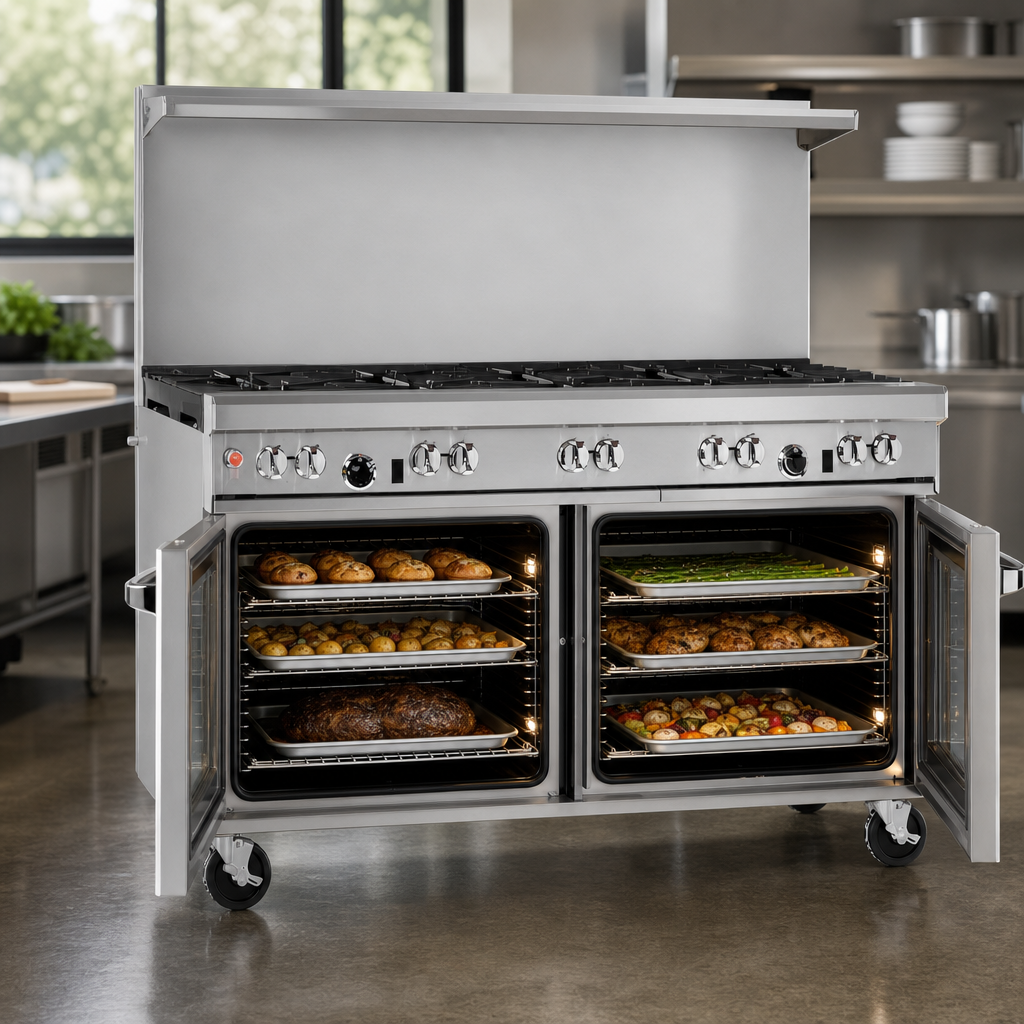

  • Twin 32,000 BTU convection ovens – five-position racks (3 included per cavity) deliver even baking, roasting and finishing.
  • Rugged, easy-clean construction – stainless steel front, sides, shelf and 6" adjustable legs withstand daily abuse and wipe clean fast.
  • Chef-friendly details – front-mounted manual gas shut-off, 22-½" flue riser with storage shelf, and removable drip trays keep workflow smooth.
  • Plug-and-play electrical – supplied with a 115 V cord & plug; only a single ¾" gas connection needed.
  • NSF & CSA certified – built to pass the toughest sanitation and safety inspections.

Premium burner set-up

  • (3) 33,000 BTU Star/Sauté burners – front left
  • (2) 40,000 BTU Pyromax burners – rear left
  • (2) 33,000 BTU Star/Sauté burners – front right
  • (2) 33,000 BTU Non-clog burners – rear right
  • Standing pilots on open tops for instant lighting

Specifications

Model Ultimate 60" Restaurant Range – Split Top / Dual Convection Ovens
Overall width 60 ¾" (1543 mm)
Depth (front to back) 34" (864 mm)
Cooking surface height 37" (940 mm)
Flue riser 22 ½" with heavy-duty storage shelf
Total BTU input 375,000 BTU/hr (natural gas)
Oven type / capacity (2) 32,000 BTU convection ovens, porcelain interior 14" H × 26" W × 24" D
Racks supplied 3 per oven (5 rack positions)
Gas connection ¾" NPT (factory regulator included, 7" W.C. NG)
Electrical (ovens only) 115 V / 60 Hz / 1-ph, 5.9 A, 6' cord & 3-prong plug
Certifications CSA, NSF
Warranty 1-year parts & labor (see warranty statement)

Included warranty

Southbend covers the range for one (1) year on parts and labor when installed and maintained by an authorized service agency.

Important usage note: When using cookware 12" Ø or larger, place it on the rear burners to prevent excess heat on the front rail. Oversized cookware on the front edge can prematurely damage components and is not covered under warranty.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

60.75in

Depth

44.5in

Shipping Weight

1075.0lbs

Top

(9) open burners

Base

(2) convection ovens

Vent

backriser with hi-shelf

Exterior Finish

stainless steel front & sides

Specifications

Ultimate Restaurant Range, gas, 60", (3) star/sauté burners front left, (2) pyromax burners rear left, (2) star/sauté burners front right, (2) non-clog burners rear right, standing pilot, (2) convection ovens with battery spark ignition, includes (3) racks per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 375,000 BTU, CSA, NSF
