Southbend (Middleby) 4604AA-5R Ultimate Gas Ranges
Description

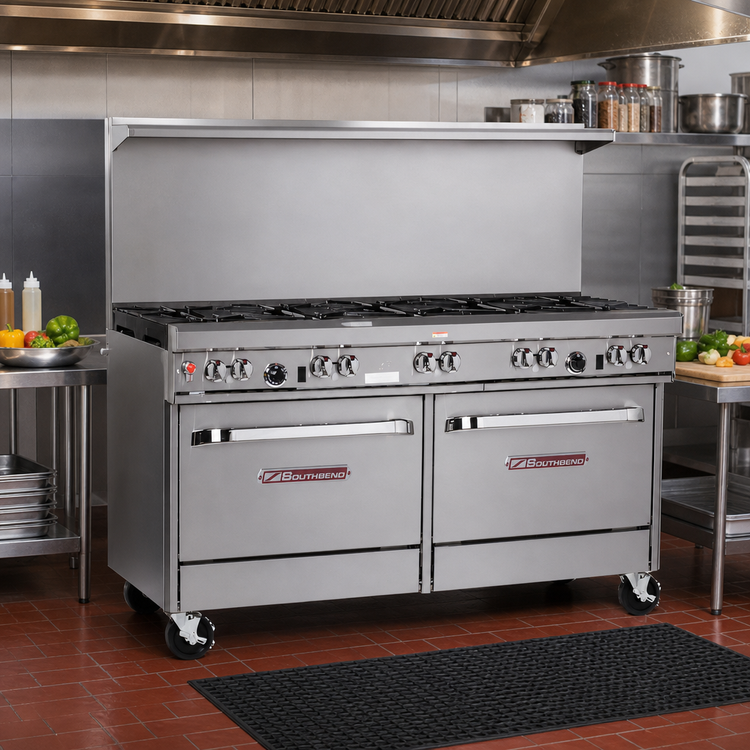

Southbend “Ultimate” 60" Gas Restaurant Range
Split Open-Top Burner Layout • Dual Convection Ovens • 375,000 BTUBring powerhouse performance to the line with Southbend’s Ultimate Series. This 60-inch model is factory-configured for maximum versatility—pairing high-output Pyromax™ burners and precision star burners with two full-size convection ovens inside a rugged, stainless-steel cabinet.

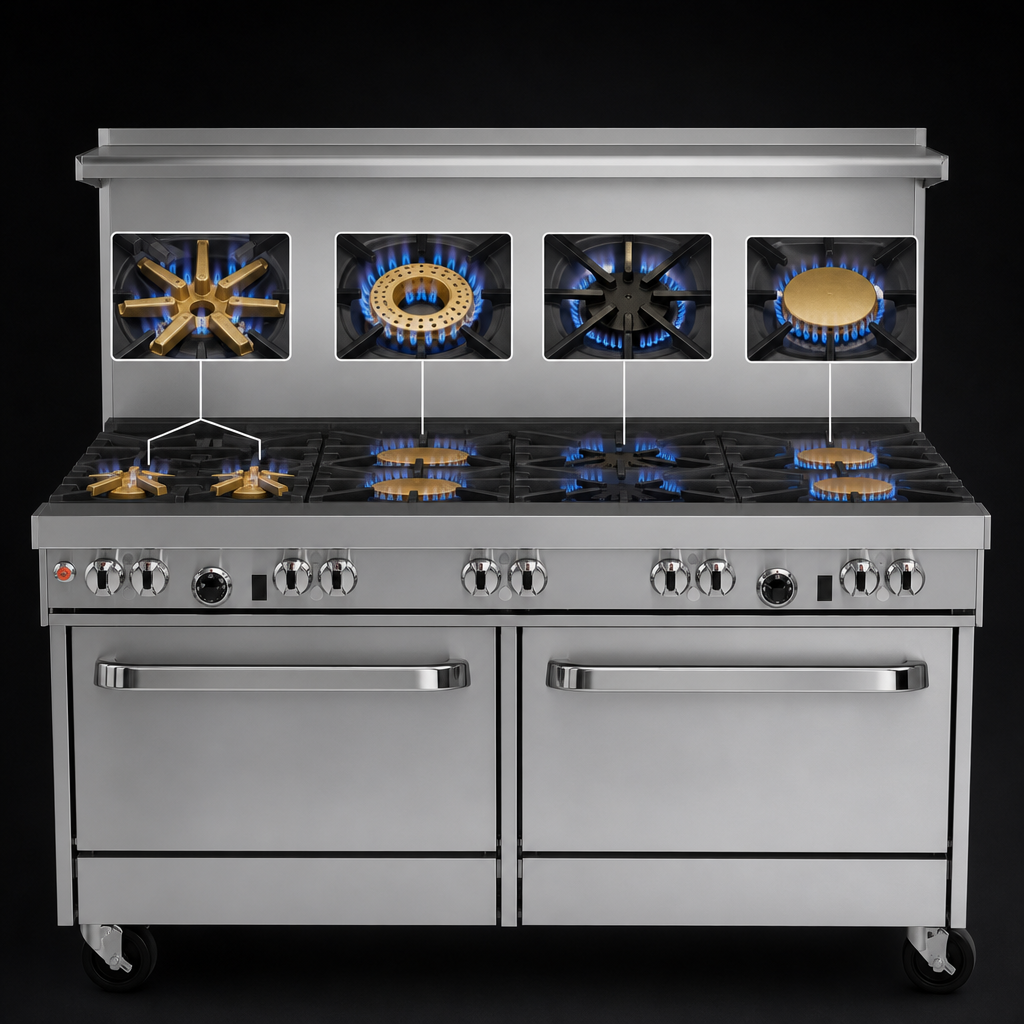

Range-Top Configuration
- 3 × 33,000 BTU non-clog burners – front right
- 2 × 40,000 BTU Pyromax™ burners – rear right (ultra-high output)
- 2 × 33,000 BTU star/sauté burners – front left for fast, even heat
- 2 × 33,000 BTU non-clog burners – rear left
- Standing pilots with a single, front-mounted manual gas shut-off
- 4 removable cast-iron grate sets; rear grates accept up to a 14" stock pot

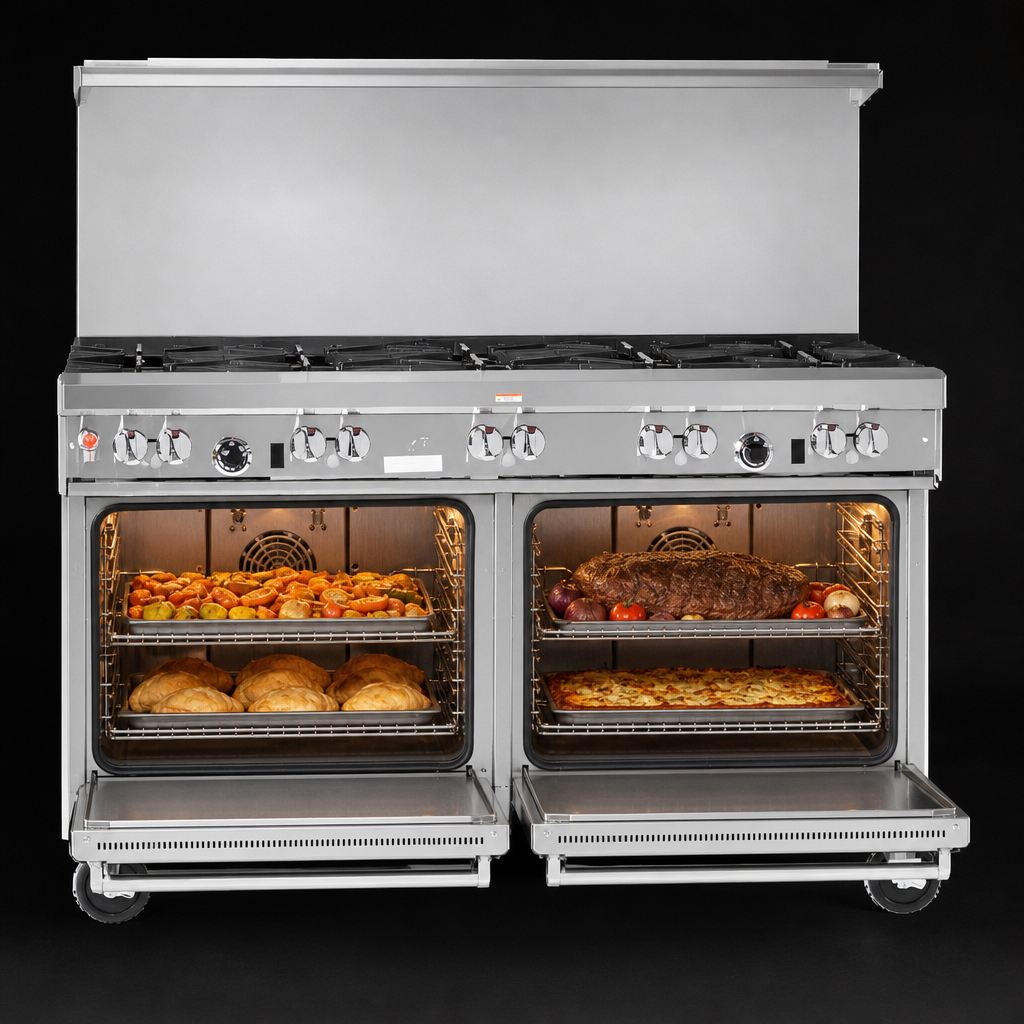

Dual Convection Ovens
- 2 × 32,000 BTU convection ovens with battery-spark ignition
- Thermostat range: 175 °F – 550 °F (79 °C – 288 °C)
- 14" H × 26" W × 24" D porcelain-enameled cavities with coved corners
- 3 chrome racks per oven; 5 position side rails
- Spring-assisted, counter-balanced doors for one-handed operation
Construction Highlights
- Stainless-steel front, sides, 4" front rail & 22.5" flue riser shelf
- 6" stainless, adjustable legs (casters optional)
- Slide-out drip trays for easy clean-up
- Factory-installed 3/4" gas pressure regulator
- CSA & NSF listed; built for continuous commercial duty
Technical Specifications
| Overall width | 60 3/4" (1543 mm) |
|---|---|
| Overall depth | 34" (864 mm) |
| Cooking surface height | 37" (940 mm) |
| Flue riser | 22 1/2" (572 mm) with heavy-duty shelf |
| Total input | 375,000 BTU/hr (natural gas) |
| Open-top burners | 311,000 BTU/hr |
| Ovens (each) | 32,000 BTU/hr | 115 V fan, 5.9 A |
| Gas connection | 3/4" NPT female, 7" W.C. NG min. |
| Electrical | 115 V / 60 Hz / 1-ph, 11.8 A total, 6' cord & NEMA 5-15P |
| Warranty | 1-year parts & labor (see Southbend limited warranty) |
What’s in the Crate
- (9) open-top burners as specified
- (6) chrome oven racks
- Integrated flue riser shelf
- Factory pressure regulator & battery pack
- Owner’s manual & warranty documentation
