Southbend (Middleby) 4604AA-5L Ultimate Gas Ranges
Description

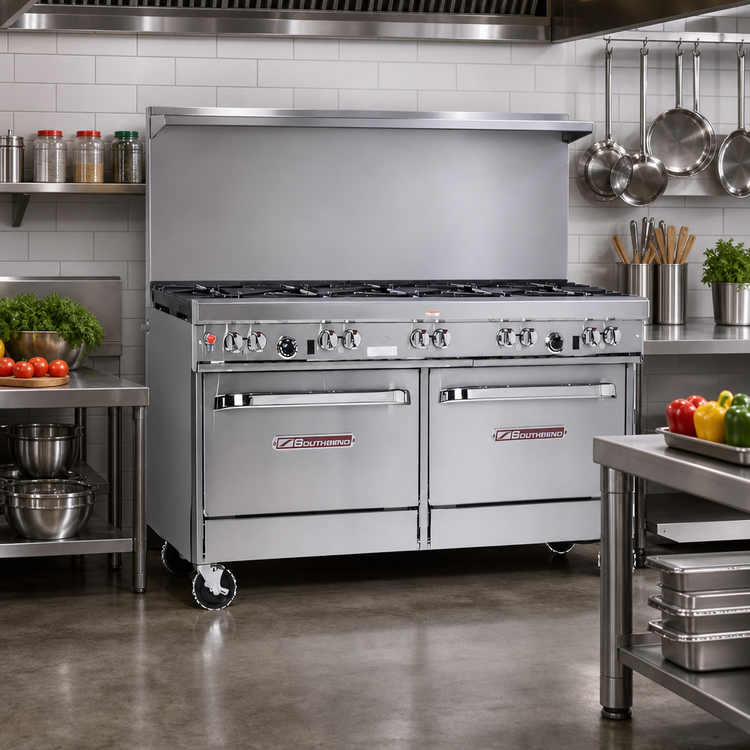

Southbend “Ultimate” 60" Gas Restaurant Range – 9-Burner Top & Double Convection Ovens
460 Series | 375,000 BTU Total Output | CSA & NSF CertifiedBuilt for high-volume kitchens that demand relentless performance, the Southbend Ultimate 60″ range combines a versatile 9-burner cooktop with two powerful convection ovens—all in one rock-solid, stainless-steel chassis. From rapid boils to delicate sautés, this range delivers the firepower and consistency chefs rely on shift after shift.
Key features

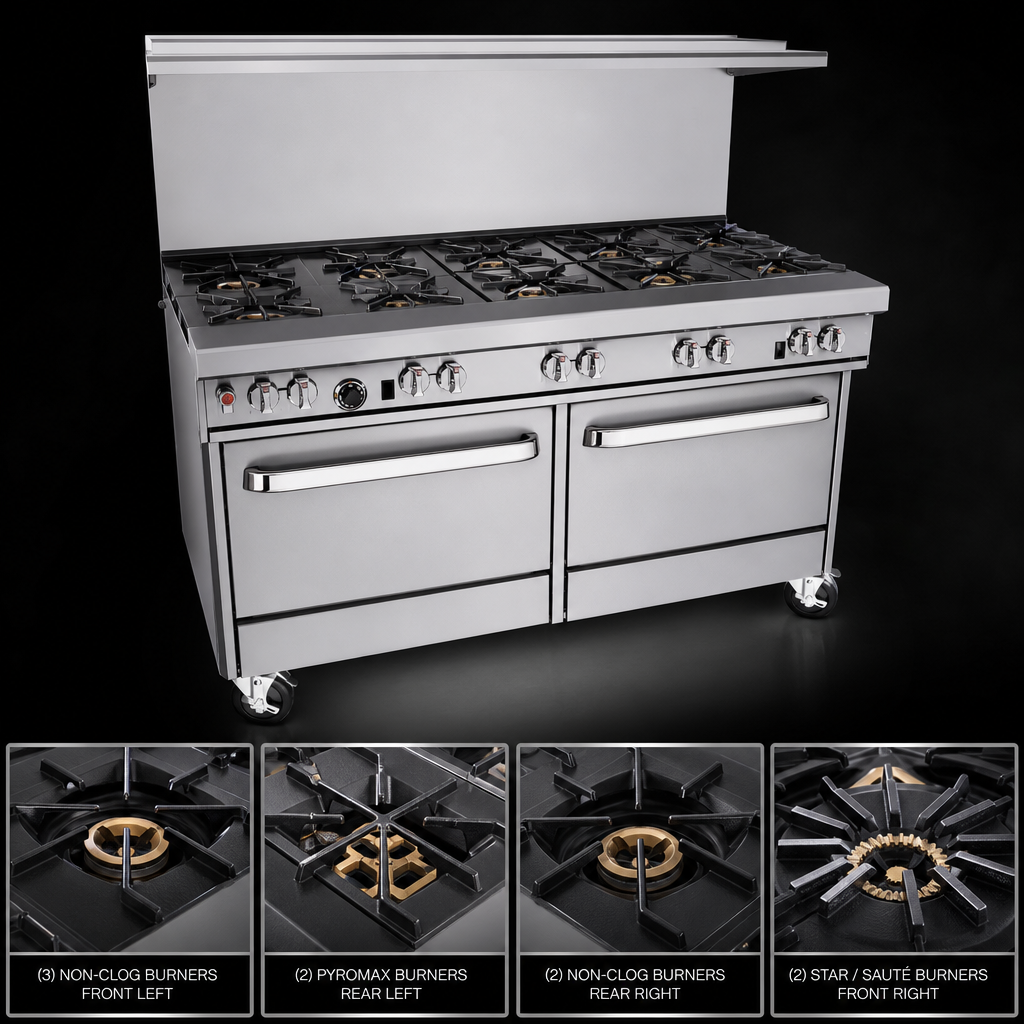

- 9 open burners on a 27″-deep cooking surface:
- Front left: 3 × 33,000 BTU non-clog burners
- Rear left: 2 × 40,000 BTU Pyromax high-output burners
- Front right: 2 × 33,000 BTU star/sauté burners for uniform flame spread
- Rear right: 2 × 33,000 BTU non-clog burners
- Standing pilots for open tops plus a front-mounted master gas shut-off

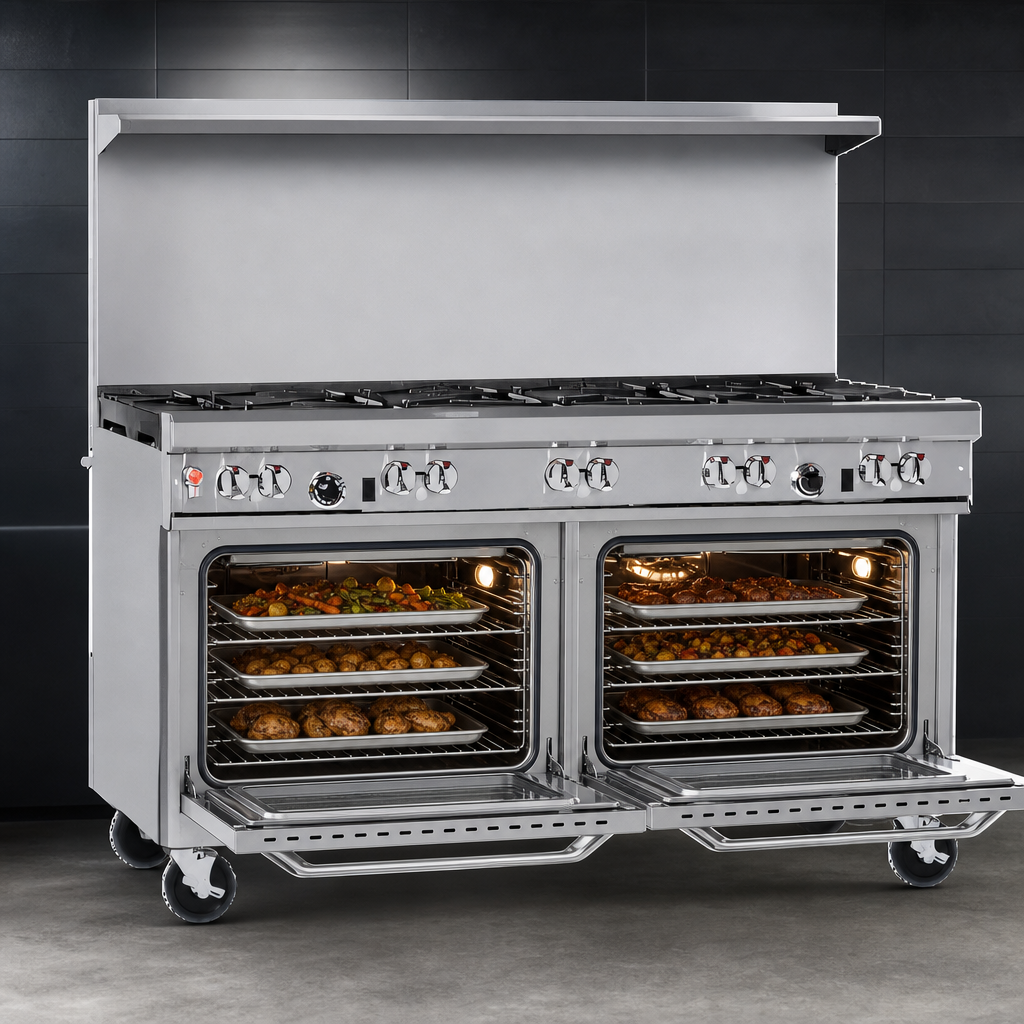

- Two 32,000 BTU convection ovens with battery spark ignition, 3 chrome racks each & five rack positions
- 22.5″ stainless flue riser with heavy-duty shelf—ideal for resting pans or holding plates
- All-stainless front, sides, 4″ rail & shelf; 6″ adjustable stainless legs for easy leveling
- Factory-installed ¾″ gas pressure regulator and removable drip trays
- 1-year parts & labor warranty backed by Southbend’s nationwide service network
Specifications
| Exterior width | 60 3⁄4″ (1543 mm) |
|---|---|
| Exterior depth | 42 1⁄8″ (1070 mm) |
| Height to cook top | 37″ (940 mm) |
| Height to top of flue | 59 1⁄2″ (1511 mm) |
| Total BTU input | 375,000 BTU/hr (natural gas) |
| Oven cavity (each) | 14″H × 26″W × 24″D – fits full-size sheet pans both directions |
| Gas connection | ¾″ NPT (left rear), 7″ WC min. NAT / 11″ WC min. LP |
| Electrical (ovens) | 115 V / 60 Hz / 1 ph, 5.9 A, 6′ cord with NEMA 5-15P |
| Shipping weight | Approx. 1,075 lb (488 kg) |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor |
Want casters, salamander mounts, or other custom options? Contact our equipment team and we’ll configure the perfect Ultimate range for your kitchen.
- If installing on flooring other than quarry tile, request the factory-approved leg or caster kit.
- Keep cookware 12″ Ø or larger on rear burners to prevent excess heat on the front rail.
- Unit must be placed beneath a properly sized vent hood and connected to the specified utilities.
