Southbend (Middleby) 4604AA-3GR Ultimate Gas Ranges
Description

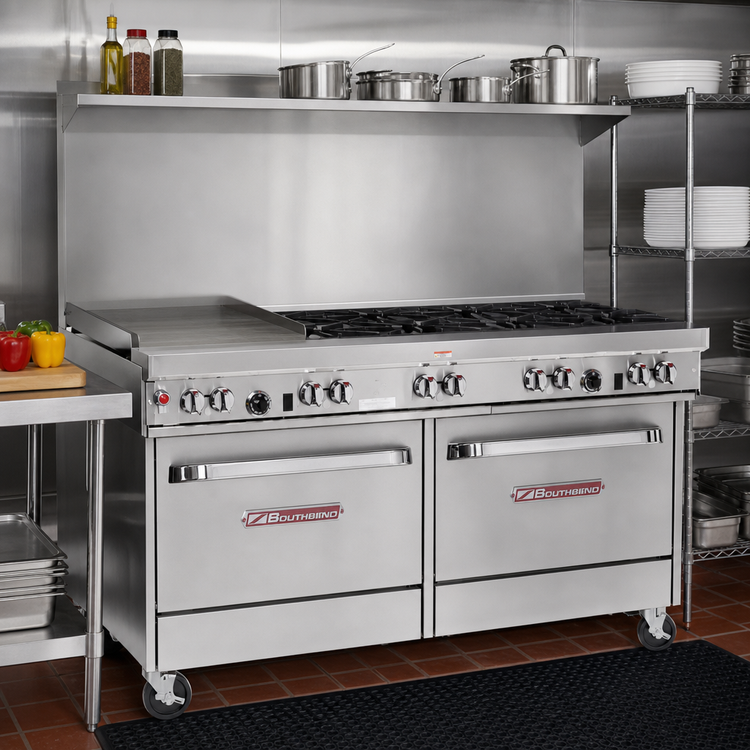

Southbend Ultimate 60" Gas Restaurant Range
4-burner / 36" Right-Side Griddle • Double Convection Oven • 260,000 BTUBuilt for kitchens that refuse to compromise, the Southbend Ultimate 60" range delivers the high output, durability and cooking flexibility busy restaurants demand. A balanced mix of star and non-clog burners, a full 36" griddle and twin convection ovens give your line cooks the power to sauté, sear, grill and bake— all in one rock-solid piece of equipment.
Why You’ll Love It
- Four open-top burners (2 × 33 k BTU star / 2 × 33 k BTU non-clog) with heavy-duty cast-iron grates.

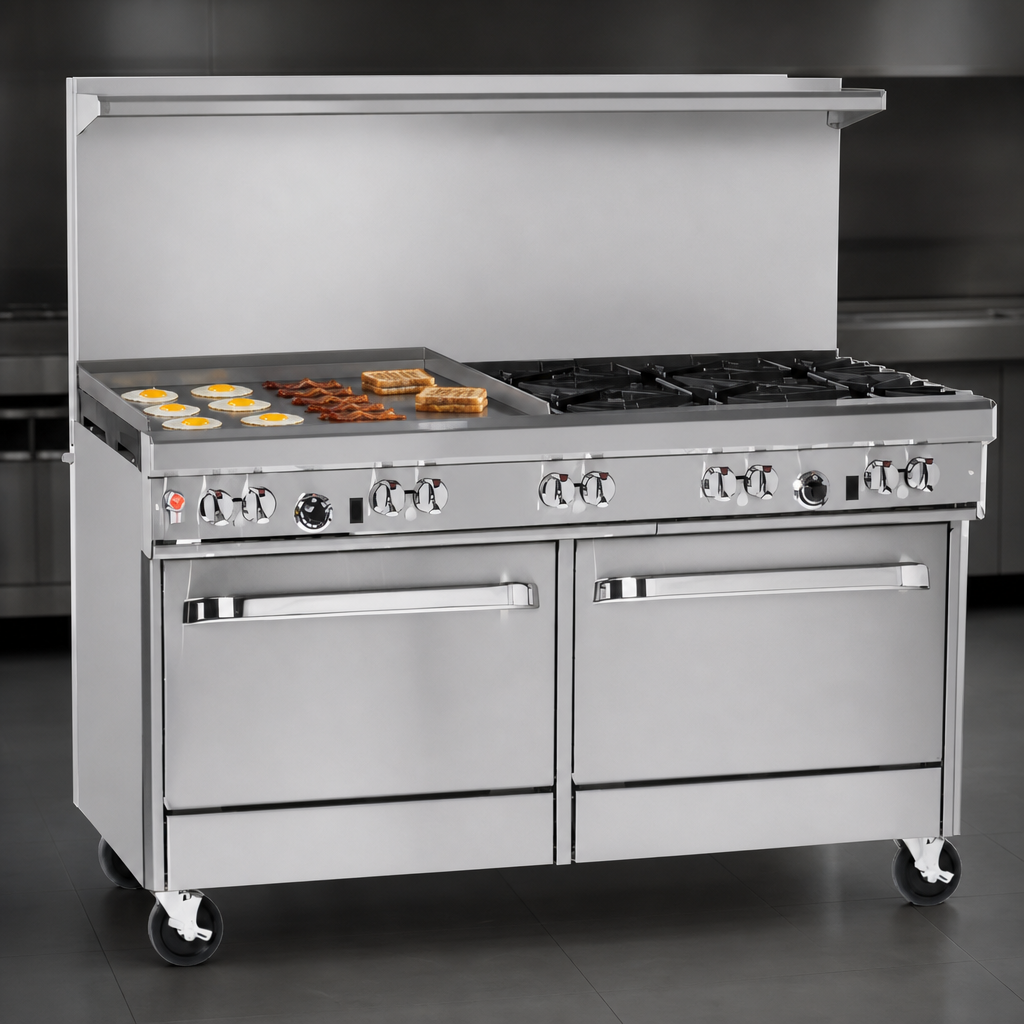

- 36" right-hand griddle, ½" smooth polished steel plate, 64 k BTU for breakfast, burgers and more.
- Dual 32 k BTU convection ovens with battery spark ignition and 175 – 550 °F thermostats; each includes 3 racks & 5 positions.
- Front-mounted gas shut-off and factory regulator for quick, safe service.
- 22½" flue riser with integrated stainless utility shelf keeps plates & pans within reach.
- All-stainless front, sides & rail plus 6" adjustable legs for easy cleaning and level installs.
- cCSAus, CSA Flame, CSA Star & NSF certified for code-ready compliance.
Specifications
| Model | Ultimate 60" (Southbend 460 Series, split burner / griddle configuration) |
|---|---|
| Overall width | 60 ¾ in / 1543 mm |
| Depth (to cabinet) | 42 ⅛ in / 1070 mm |
| Working height | 37 in cook surface | 59½ in to top of flue riser |
| Total BTU | 260,000 BTU/hr (natural gas) |
| Open burners | 4 × 33 k BTU (2 star / 2 non-clog) |
| Griddle | 36 in right-side, 64 k BTU, ½" plate |
| Ovens | 2 × 32 k BTU convection, porcelain interior 14 in H × 26 in W × 24 in D |
| Gas connection | ¾" NPT, min. 7" W.C. NG inlet |
| Electrical | 115 V, 1-phase, 5.9 A (factory 6' cord & plug) – ovens only |
| Included | 6 stainless legs, 6 oven racks, flue-shelf, pressure regulator, manual packet |
| Warranty | 1 year parts & labor (see details below) |
What’s in the Crate
- Southbend Ultimate 60" range (factory-assembled)
- (6) adjustable stainless legs
- (6) heavy-duty oven racks
- Pressure regulator (pre-installed)
- Operator & installation manual
Utility Requirements
- Natural gas, ¾" female NPT connection (flex hose recommended; not smaller than ¾").
- 115 V/60 Hz/1-phase, 6 A service for convection fans.
- Minimum clearances: 0" sides & rear to non-combustible walls; 10" to combustibles.
- Install under an adequate ventilating hood per local code.
Peace-of-Mind Warranty
Southbend covers this range with a 1-year limited parts & labor warranty when installed and serviced by an authorized Southbend agency. Commercial use only.
Certifications
cCSAus • CSA Flame • CSA Star • NSF
