Southbend (Middleby) 4604AA-2RR Ultimate Gas Ranges
Description
Southbend “Ultimate” 60″ Gas Restaurant Range
3 Star / 3 Non-Clog Burners • 24″ Raised Griddle/Broiler • Dual Convection OvensWhen your line needs uncompromising fire-power and versatility in one footprint, the Southbend Ultimate Series delivers. Six high-output burners, a raised griddle/broiler and two full-size convection ovens combine to pump out 295,500 BTU/hr of cooking muscle—all wrapped in easy-clean stainless steel.
Key Performance Features
- (3) 33 000 BTU star/sauté burners in front for lightning-fast heat & even pan coverage.
- (3) 33 000 BTU lifetime non-clog cast burners at the rear—perfect for 14″ stock pots.

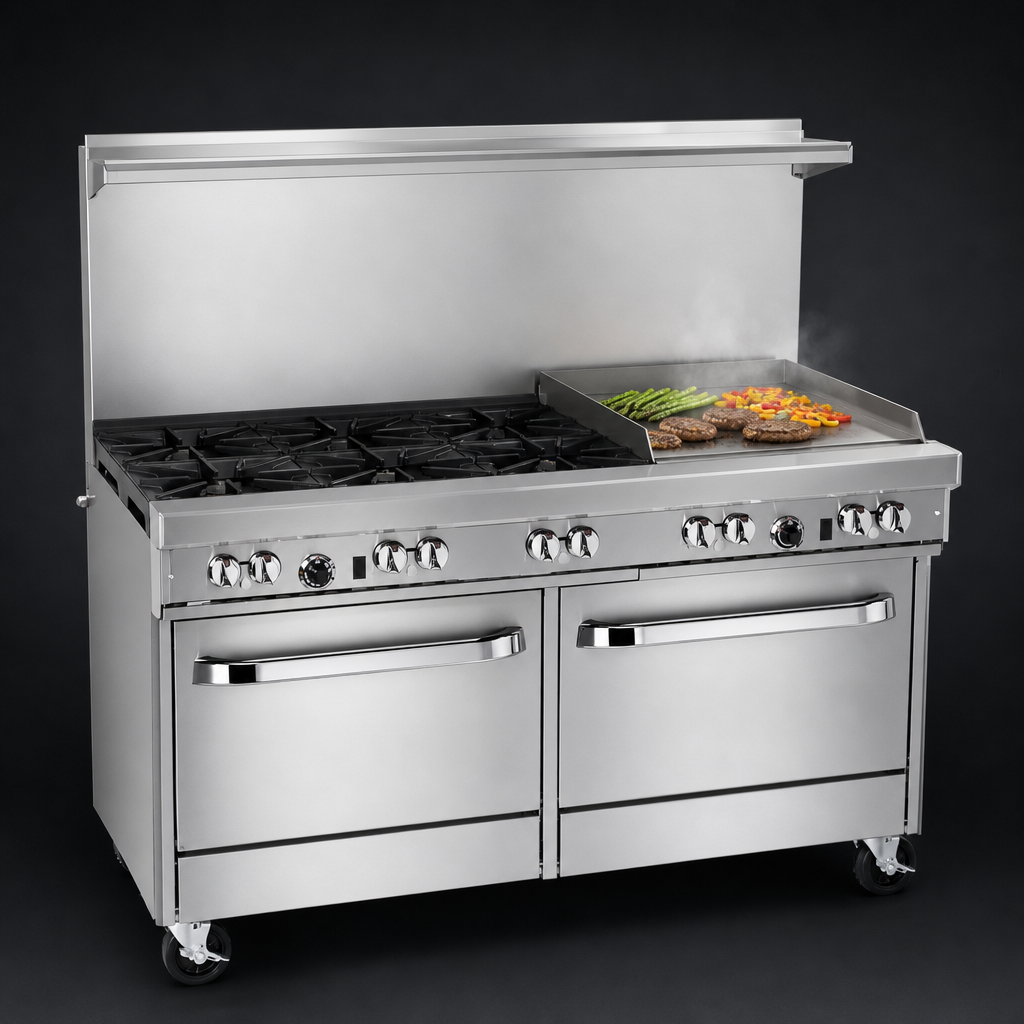

- 24″ raised griddle/broiler with ½″ polished steel plate (manual control, 64 000 BTU) for breakfast griddling by day and steak finishing by night.
- Twin 32 000 BTU convection ovens with battery-spark ignition; each oven includes 3 heavy-duty racks and five rack positions.
- Front-mounted main gas shut-off and factory-installed ¾″ regulator simplify line checks and service.
- 22 ½″ flue riser with sturdy stainless utility shelf keeps plates, pans and spices right where you need them.
- 4″ stainless bull-nose rail, removable cast-iron grates and deep drip trays for fast, thorough clean-ups.
- cCSAus, CSA Flame, CSA Star and NSF listed for hassle-free code compliance.
Technical Specifications
| Total BTU Input | 295,500 BTU/hr (natural or LP, field convertible) |
|---|---|
| Open Burners | (3) star / sauté + (3) non-clog, 33 000 BTU each |
| Griddle/Broiler | 24″ raised, ½″ plate, 64 000 BTU (manual) |
| Ovens | (2) convection, 32 000 BTU each, 175 – 550 °F thermostat |
| Oven Interior (each) | 14″H × 26″W × 24″D, porcelain enamel (3 racks, 5 positions) |
| Overall Dimensions | 60 ¾″W × 42 ⅛″D × 37″ cook-top height |
| Gas Connection | ¾″ NPT, min. 7″ W.C. (Nat) / 11″ W.C. (LP) |
| Electrical | 115 V, 5.9 A, 6′ cord & 3-prong plug for convection fans |
| Shipping Weight | Approx. 1 075 lb (crated) |
| Warranty | 1-year parts & labor (see Southbend limited warranty) |
Looking for doors, casters or salamander mounts? Factory options are available—ask your rep before ordering.
