Southbend (Middleby) 4604AA-2GR Ultimate Gas Ranges
Description

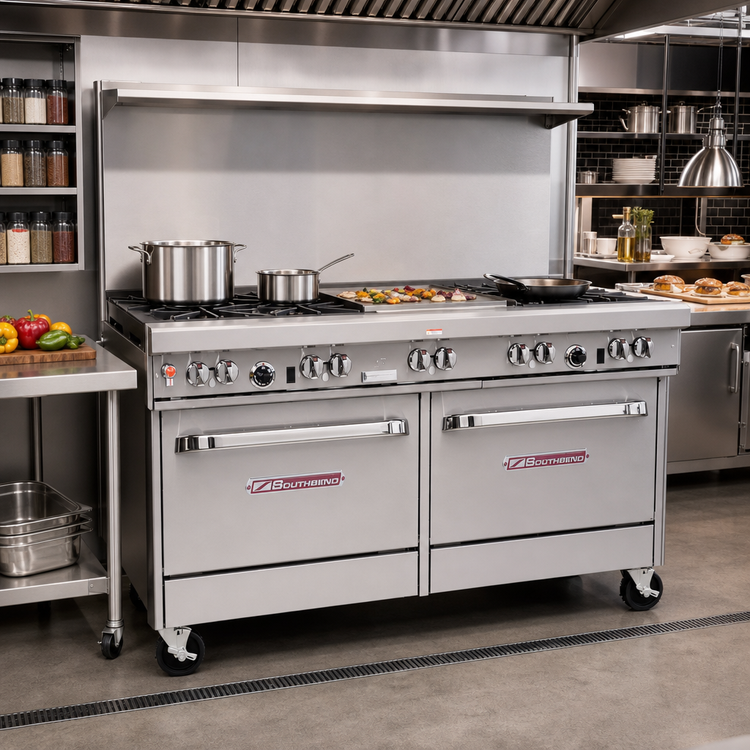

Southbend Ultimate 60" Gas Restaurant Range
3 Star / 3 Non-Clog Burners • 24" Right-Side Griddle • Twin Convection OvensPack six high-output burners, a full 24-inch griddle, and two full-size convection ovens into just five feet of line space. The Southbend Ultimate Series is built for chefs who need all-day power, rock-solid reliability, and the versatility to handle breakfast, lunch, and dinner rushes without breaking stride.
Key Advantages
- Split open-top layout: (3) 33 000 BTU star/sauté burners up front for quick, even pan work & (3) 33 000 BTU lifetime non-clog burners in back for stock pots and sauce work.
- 24" polished-steel griddle (½" plate) on the right—ideal for searing proteins, pancakes, or finishing sandwiches.
- Dual convection ovens (32 000 BTU each) accept full-size sheet pans both ways and include three chrome racks per cavity.
- 22½" flue riser with heavy-duty storage shelf keeps plating essentials right where you need them.
- All-stainless front, sides, rail & shelf plus 6" adjustable legs for easy cleaning and a professional, long-lasting appearance.
- Front-mounted master gas shut-off and factory pressure regulator simplify daily operation and service.
Performance Specifications
| Total Input | 310 000 BTU/hr (Natural Gas) |
|---|---|
| Open Burners | (3) star & (3) non-clog, 33 000 BTU each, standing pilots |
| Griddle | 24" W × 27" D, ½" smooth steel plate, manual controls |
| Ovens | (2) convection, 32 000 BTU each; 175 °F – 550 °F thermostat; battery-spark ignition |
| Oven Interior (each) | 14" H × 26" W × 24" D, porcelain enamel; 3 racks / 5 positions |
| Dimensions (W × D × H) | 60 ¾" × 42 ⅛" × 59 ½" overall • 37" cooking-surface height |
| Gas Connection | ¾" NPT, 7" W.C. Natural / 11" W.C. LP (regulator included) |
| Electrical | 115 V, 1 ph, 5.9 A; 6 ft cord & 3-prong plug (convection fans only) |
| Construction | Stainless steel exterior, four removable cast-iron grate tops, dual drip trays |
| Certifications | cCSAus • CSA Flame • CSA Star • NSF |
What’s Included
- (6) cast-iron grate tops rated for 14" stock pots
- (3) chrome racks per oven cavity
- Factory-installed pressure regulator
- One-year limited parts & labor warranty backed by Southbend’s nationwide service network
Looking for easy monthly payments? Ask us about Middleby Equipment Financing and keep your cash flow cooking.
