Southbend (Middleby) 4603DD-7R Ultimate Gas Ranges

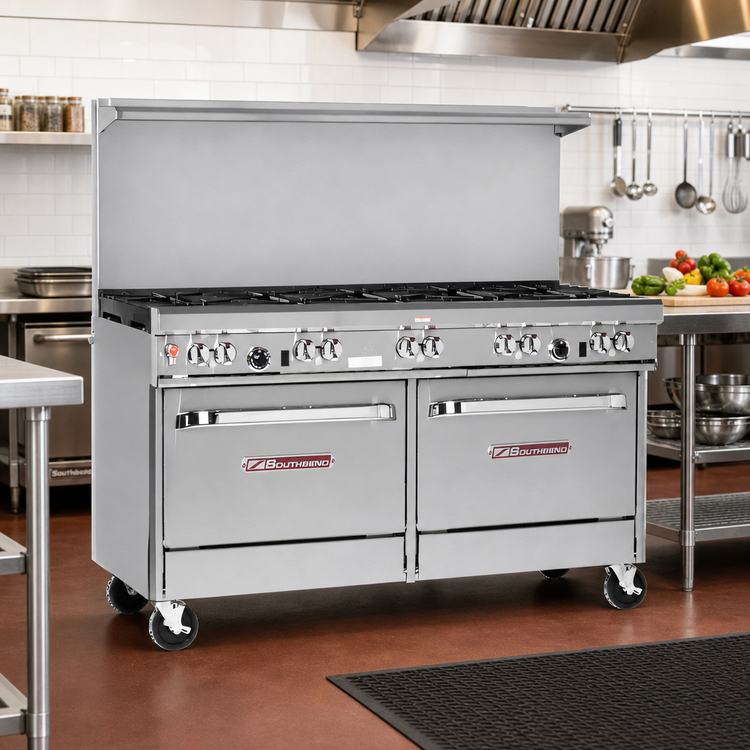

Southbend Ultimate 60" Gas Restaurant Range

Built for high-volume kitchens that refuse to compromise on versatility or power, the Southbend Ultimate 60" Restaurant Range marries two high-performance burner styles with twin full-size ovens in one rock-solid, all-stainless platform.

Key cooking power

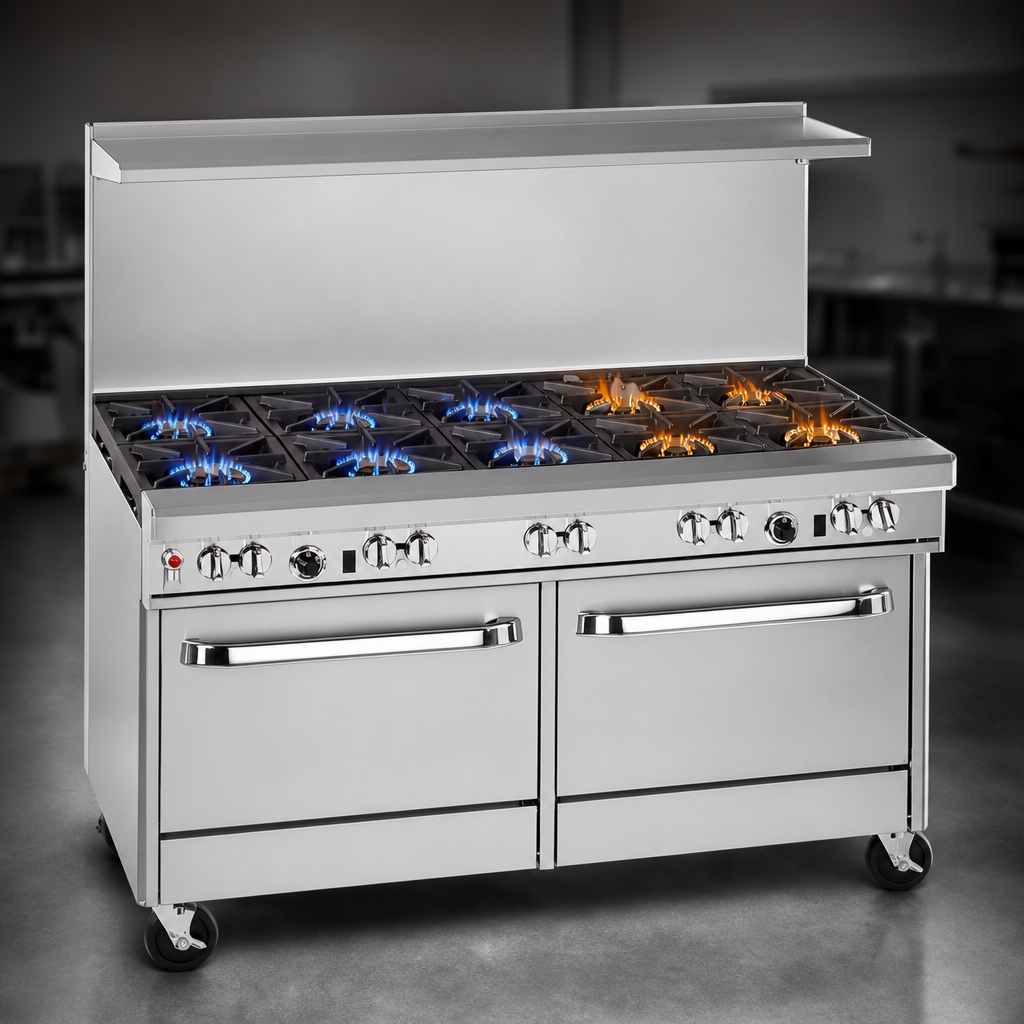

• (4) 33,000 BTU cast-iron Star/Sauté burners for even, edge-to-edge searing and sauce work
• (4) 40,000 BTU patented Pyromax™ burners on the right side for rapid-boil, high-heat production

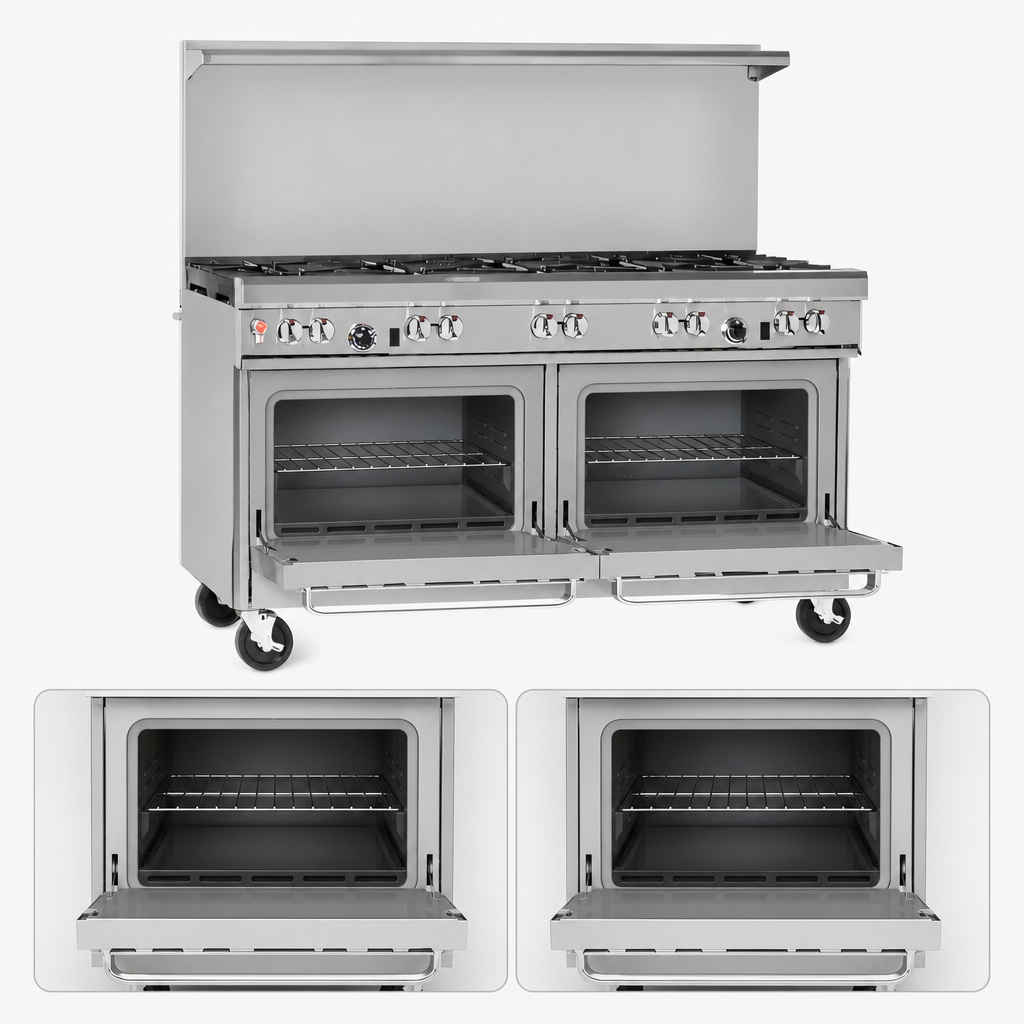

• (2) 45,000 BTU standard ovens with battery-spark ignition & 175-550 °F thermostats
• Total output: 382,000 BTU/hr

Built for the rush

• 27" deep cooking surface with four removable cast-iron grates (rear accommodates 14" stock pots)
• 22-1/2" flue riser with heavy-duty shelf keeps pans and spices within easy reach
• 4" stainless front rail + front-mounted manual gas shut-off for fast, safe control
• 6" adjustable stainless steel legs for easy leveling on uneven floors
• Standing pilots on open burners; battery spark ignition on ovens—no external power needed

Construction & cleanability

• Stainless steel front, sides and shelf resist corrosion and wipe down quickly
• Double-sided porcelain-enameled oven cavities with coved corners for effortless cleaning
• Spring-assisted, counter-weighted oven doors stand up to constant use
• (1) nickel-plated rack included per oven (2-position guides)

Specifications

Why choose Southbend?

• Over 100 years of commercial cooking innovation
• Industry-leading burner technology for superior efficiency
• Nationwide network of authorized service agencies
