Southbend (Middleby) 4603DD-7L Ultimate Gas Ranges
Description

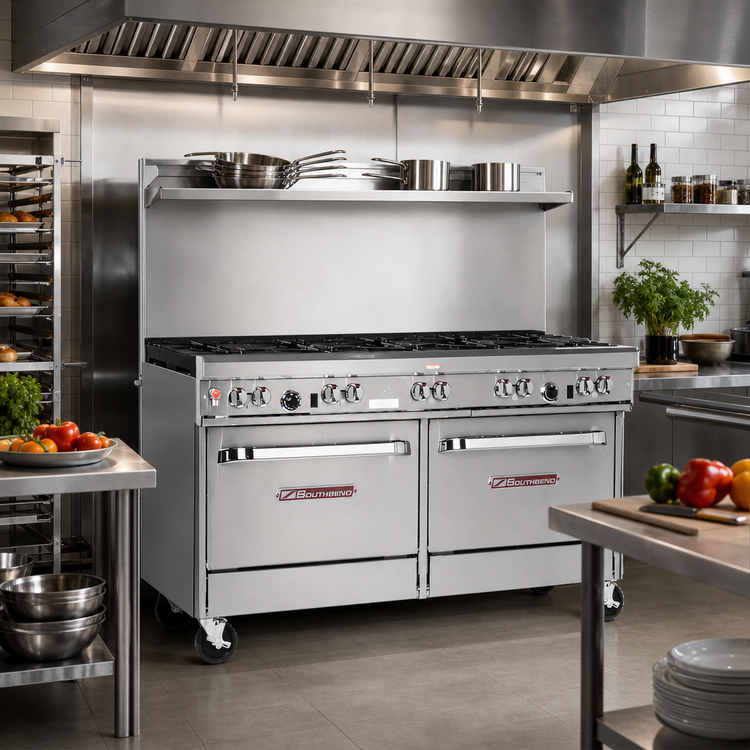

Southbend Ultimate 60" Gas Restaurant Range
(4) Star/Sauté Burners • (4) Pyromax Burners • (2) Standard Ovens • 382,000 BTUBuilt for the busiest commercial kitchens, the Southbend Ultimate 60" range delivers blistering heat, rock-solid durability, and chef-friendly ergonomics in one powerhouse package. Eight heavy-duty open burners team up with twin standard ovens, giving you the speed and versatility to sauté, simmer, sear, or bake every item on the ticket—without missing a beat.
Key Features

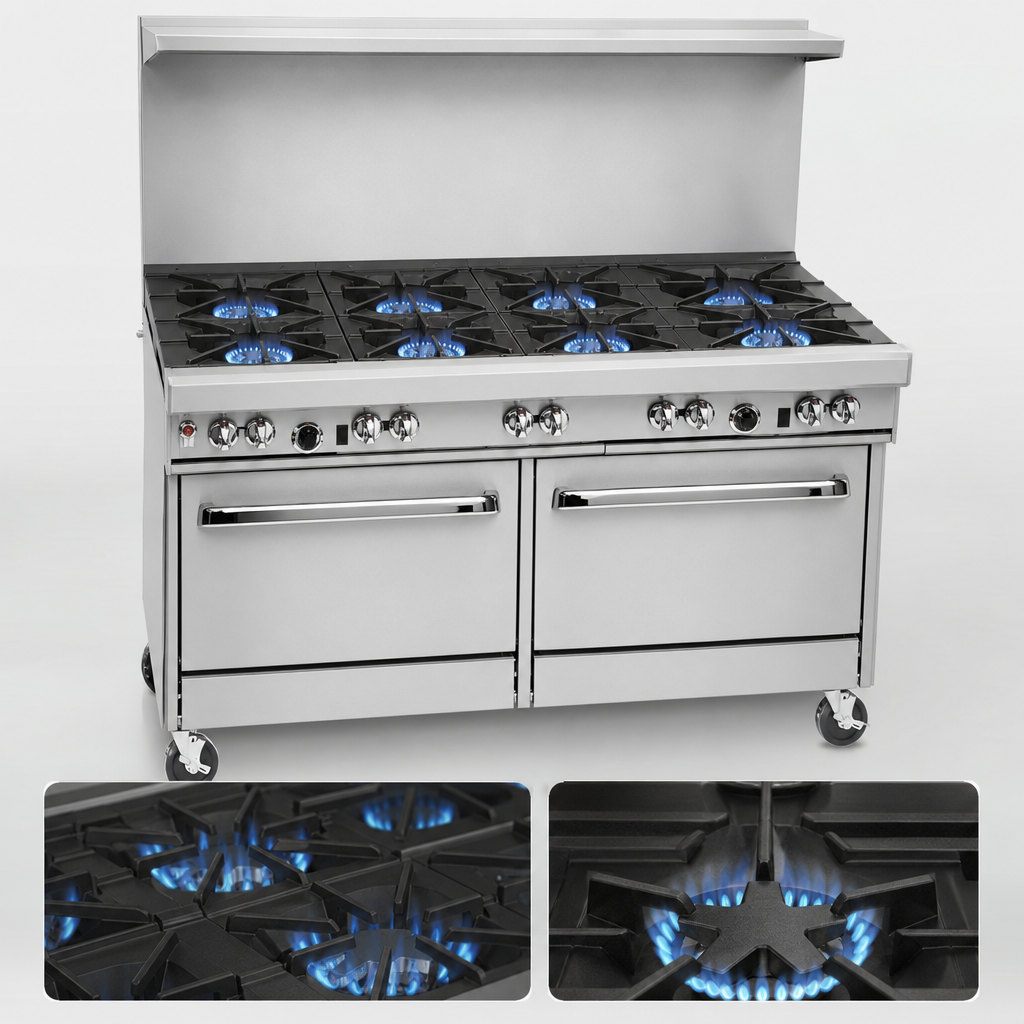

- Eight open burners: 4 × 33,000 BTU cast-iron star/saute burners plus 4 × 40,000 BTU Pyromax burners for ultra-high output.

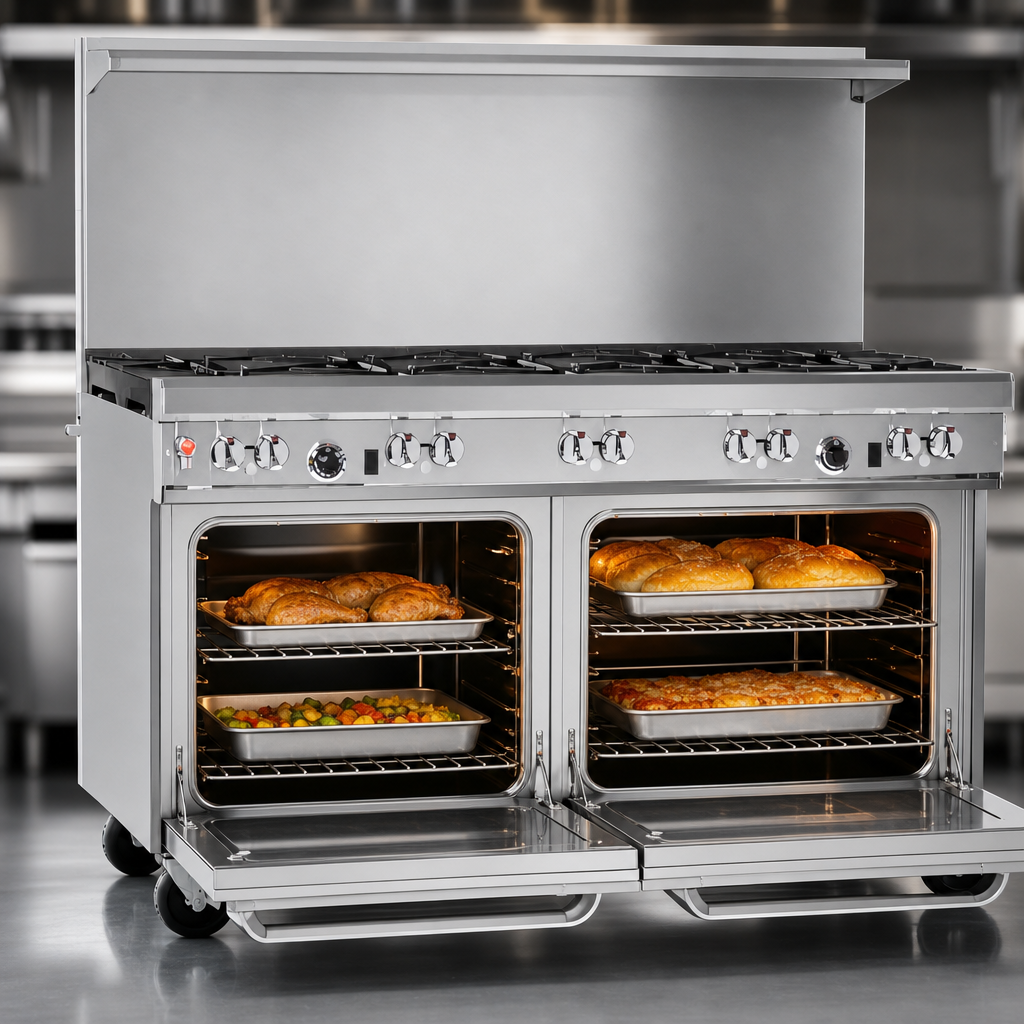

- Two 45,000 BTU standard ovens with battery spark ignition and porcelain-enameled, easy-clean cavities; each ships with one rack (two-position).
- 22 - 1/2" flue riser with integrated heavy-duty shelf keeps pans and seasonings within arm’s reach.
- 4" stainless steel front rail, stainless front & sides, and removable cast-iron grates (rear grate accepts up to a 14" stock pot).
- Front-mounted manual gas shut-off and factory-installed regulator for quick, safe maintenance.
- Full-width drip trays below the cooktop speed nightly cleanup.
- 6" stainless steel adjustable legs standard (casters optional).
- Standing pilots on open burners for instant ignition.
- CSA & NSF certified for peace of mind and code compliance.
At-a-Glance Specs
| Model | Ultimate 60" Restaurant Range (460 series configuration) |
|---|---|
| Gas type | Natural or Propane (field convertible) |
| Total input | 382,000 BTU/hr |
| Open burners | 4 × 33,000 BTU star/saute | 4 × 40,000 BTU Pyromax |
| Ovens | 2 × 45,000 BTU standard ovens, battery spark ignition |
| Cooking surface | 27" deep, removable cast-iron grates |
| Exterior dimensions | 60.75" W × 34" D × 59.5" H (to top of flue) |
| Working height | 37" (cooktop) |
| Gas connection | 3/4" NPT rear; regulator included |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (commercial use) |
