Southbend (Middleby)  |  Ultimate  |  SKU: 4603DD-5R

Southbend (Middleby) 4603DD-5R Ultimate Gas Ranges

$10,351.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

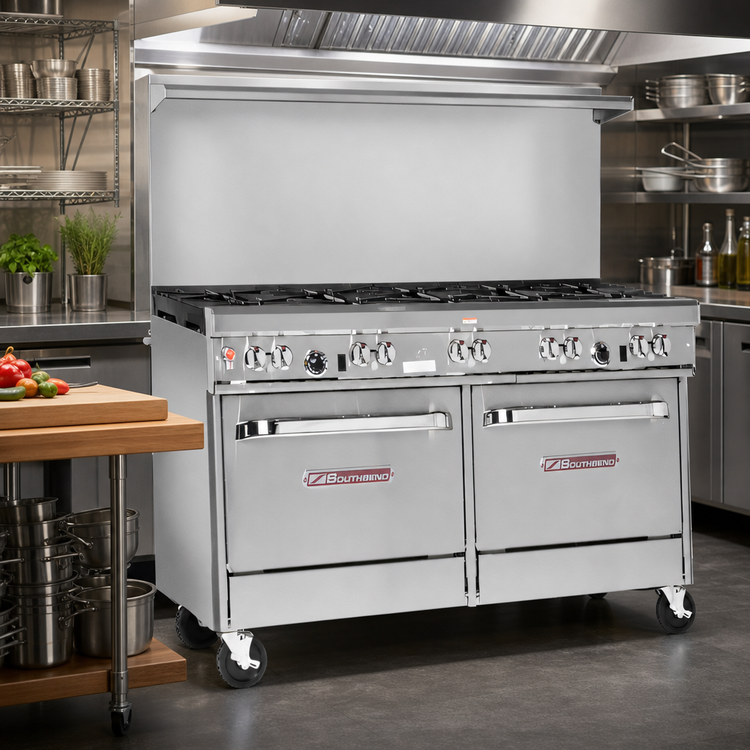

Southbend Ultimate 60" Gas Restaurant Range

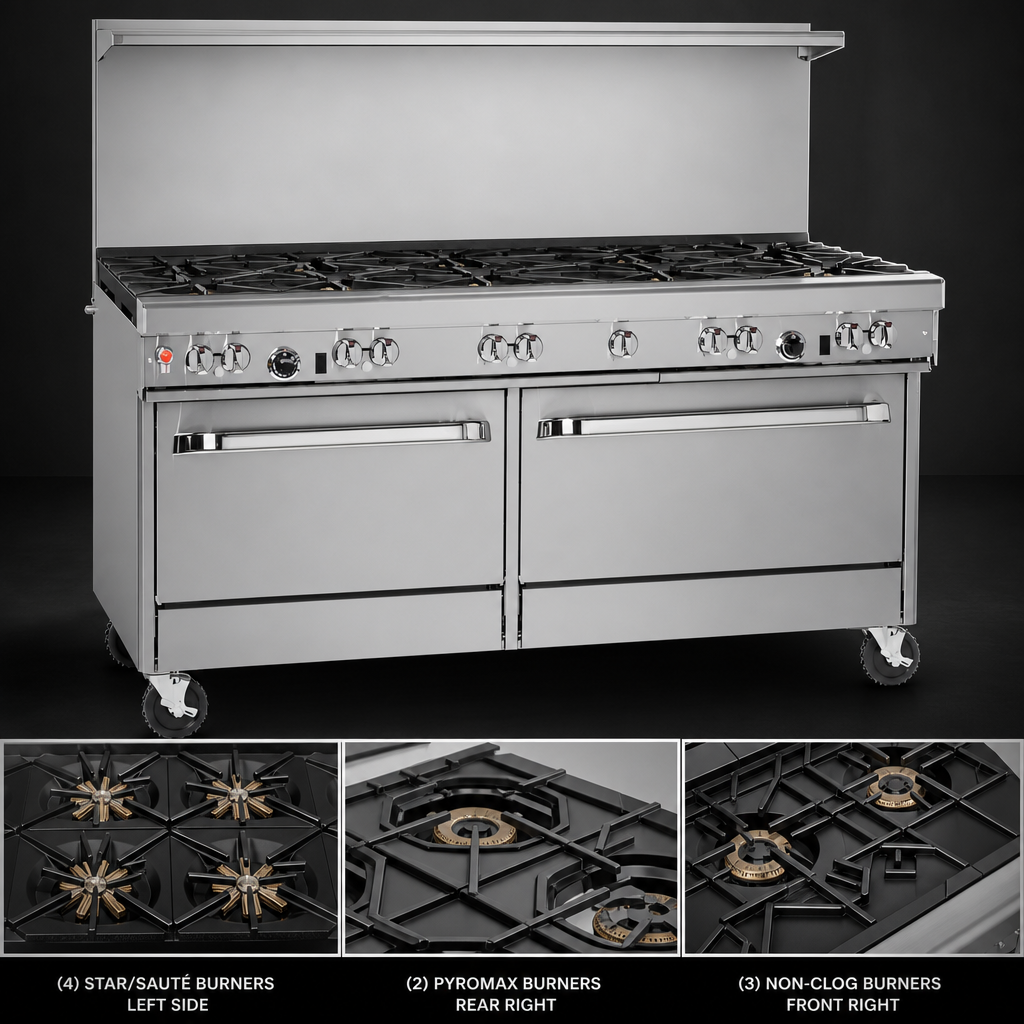

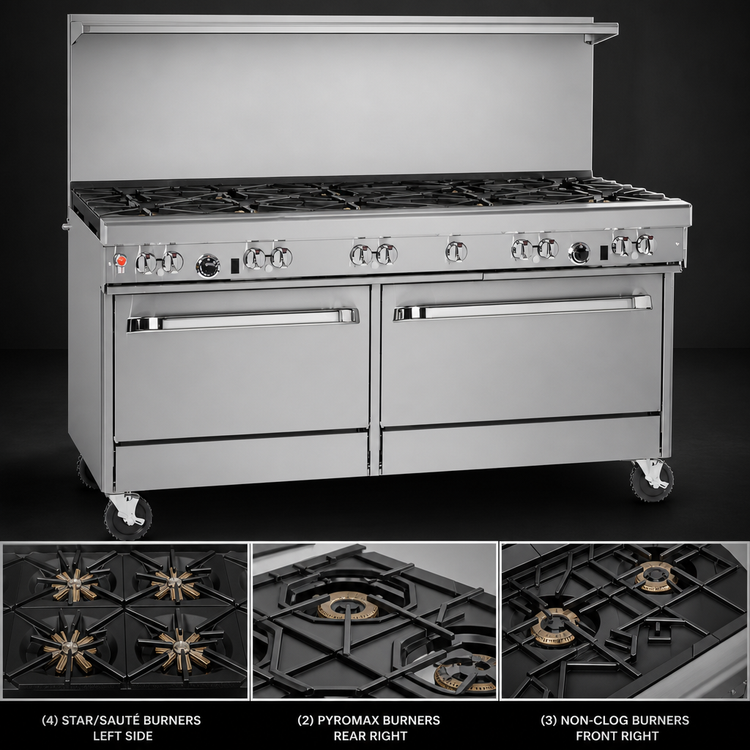

3 Non-Clog • 2 Pyromax • 4 Star/Sauté Burners  |  Double Standard Ovens  |  401,000 BTU

When dinner rush hits, the Southbend Ultimate Series keeps pace. This 60-inch heavy-duty range marries massive fire-power with rock-solid construction—so your kitchen can sear, sauté, simmer and bake without ever slowing down.

Key Performance Features
  • 60-3/4" wide cooktop with a 37" working height.
  • (3) 33,000 BTU non-clog burners (front right) – patented one-piece cast-iron ports stay clog-free for life.
  • (2) 40,000 BTU Pyromax burners (rear right) – high-output tri-ring design with built-in drip ring.
  • (4) 33,000 BTU star/sauté burners (left side) – even flame pattern ideal for sauté pans & sauce pots.
  • Total open-top output: 311,000 BTU/hr; overall appliance output: 401,000 BTU/hr.
  • (2) 45,000 BTU standard ovens with battery spark ignition; 175 °F – 550 °F thermostat.
  • Front-mounted manual gas shut-off plus factory ¾" regulator.

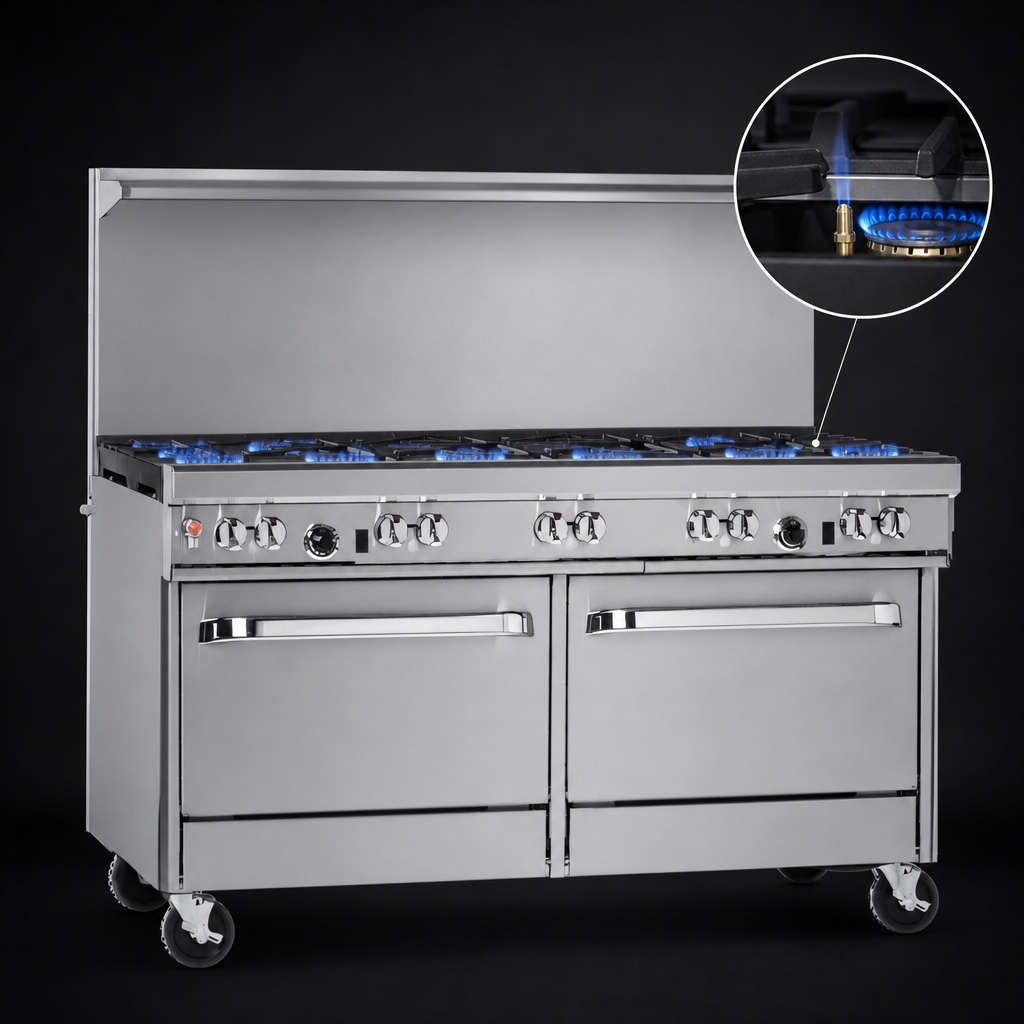

  • Standing pilots on all open burners for instant lighting.
Oven Details
  • Porcelain-enameled cavity – 14"H × 26"W × 26.5"D; accepts full-size sheet pans both directions.
  • One chrome rack per oven; two rack positions.
  • Spring-assisted, counter-weighted doors for effortless opening.
Built to Last
  • Stainless-steel front, sides, 4" front rail and 22-1/2" flue riser shelf.
  • Four removable cast-iron top grates; rear sections hold 14" stock pots.
  • Two full-width pull-out crumb trays for quick cleanup.
  • 6" stainless adjustable legs (casters optional).
  • One-year parts & labor warranty backed by Southbend’s nationwide service network.
At-a-Glance Specifications
Model Ultimate 460DD – 60" Restaurant Range
Overall Width 60-3/4" / 1543 mm
Overall Depth 34" / 864 mm
Cooking Surface Depth 27" / 686 mm
Cooking Height 37" / 940 mm
Open-Top BTU 311,000 BTU/hr
Oven BTU (each) 45,000 BTU/hr
Total BTU 401,000 BTU/hr (natural gas)
Gas Connection ¾" NPT, rear
Required Inlet Pressure Natural 7" W.C.  |  LP 11" W.C.
Electrical None – battery spark ignition
Shipping Weight Approx. 1,075 lb / 488 kg
Certifications CSA, NSF
What’s Included
  • (1) chrome oven rack per cavity
  • Integrated 22-1/2" flue riser with storage shelf
  • Factory pressure regulator & installation manual
Important: Commercial installation only. Use oversized (>12") cookware on rear burners to avoid heat damage to the front rail. Consult local codes and Southbend installation guidelines for non-quarry tile floors. Warranty is void if improperly installed or mis-used.

Ask about Middleby Equipment Financing for low monthly payments.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

60.75in

Depth

34.0in

Shipping Weight

1075.0lbs

Top

(9) open burners

Base

(2) standard ovens

Vent

backriser with hi-shelf

Exterior Finish

stainless steel front & sides

Specifications

Ultimate Restaurant Range, gas, 60", (3) non-clog burners front right, (2) pyromax burners rear right, (4) star/sauté burners left, standing pilot, (2) standard ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 401,000 BTU, CSA, NSF
