Southbend (Middleby) 4603DD-5L Ultimate Gas Ranges
Description

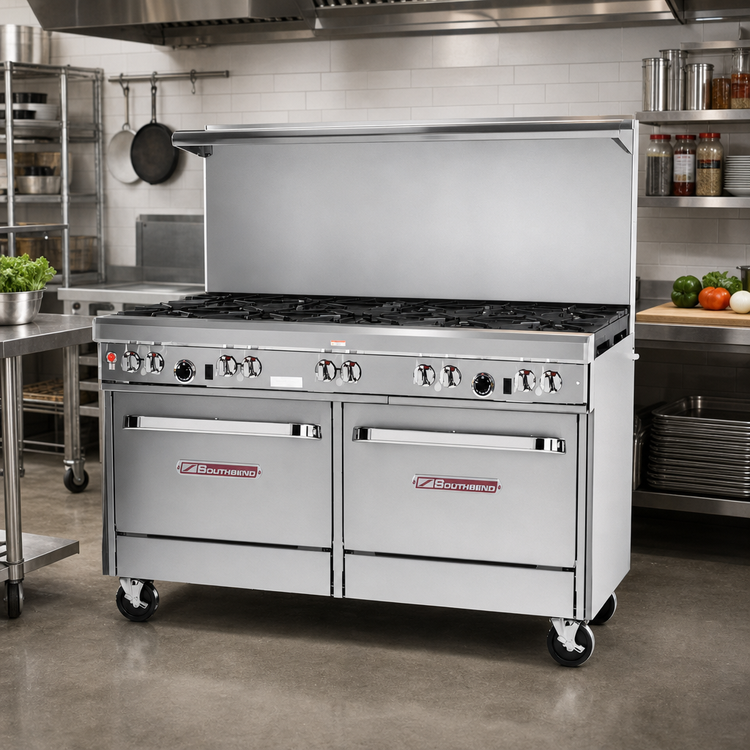

Southbend “Ultimate” 60" Gas Restaurant Range
Model 460-DD | 401,000 BTU | CSA & NSF CertifiedBuilt for the busiest kitchens, the Southbend Ultimate Series combines unmatched power, rugged stainless-steel construction and the flexibility chefs crave. This 60-inch model delivers 9 high-performance open-top burners plus two full-size standard ovens in one rock-solid station—ready to sauté, simmer or sear all day long.
Why You’ll Love It
- 401,000 total BTU for rapid recovery and maximum throughput.

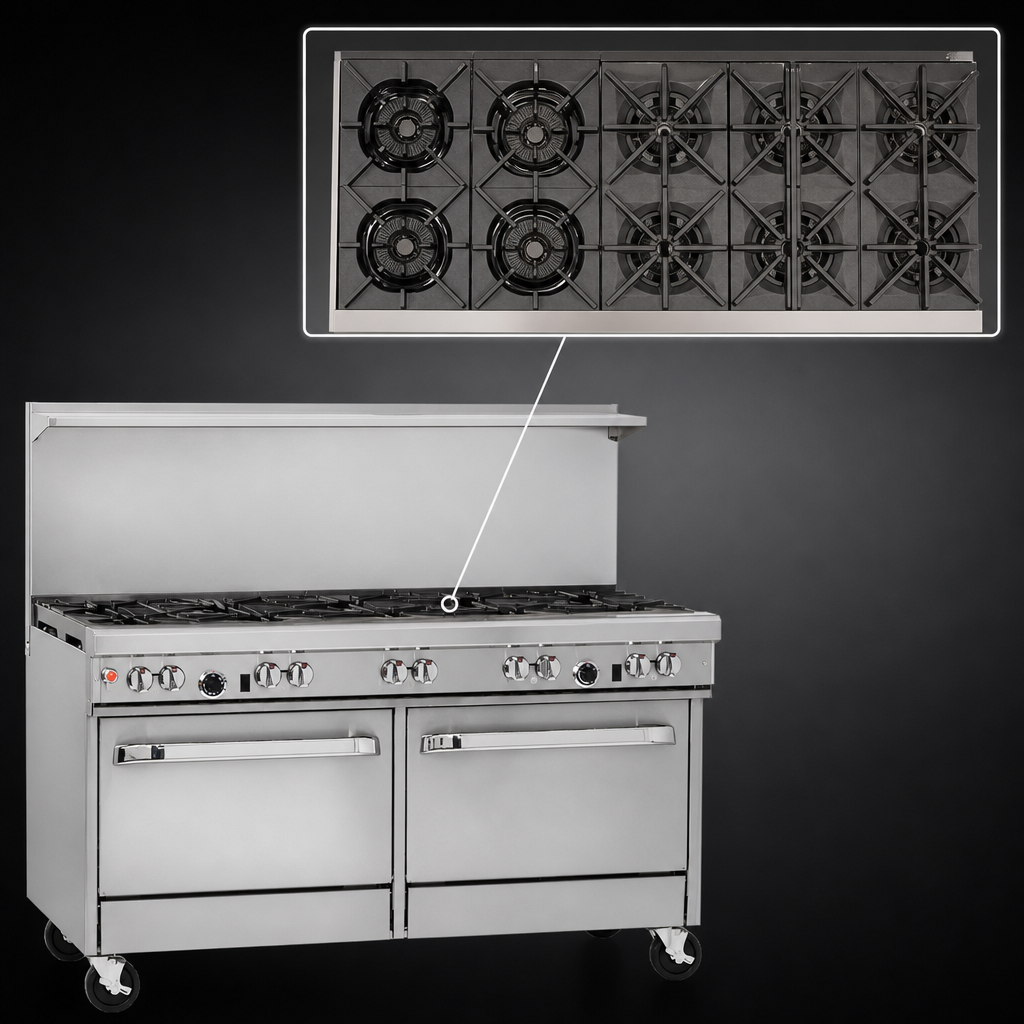

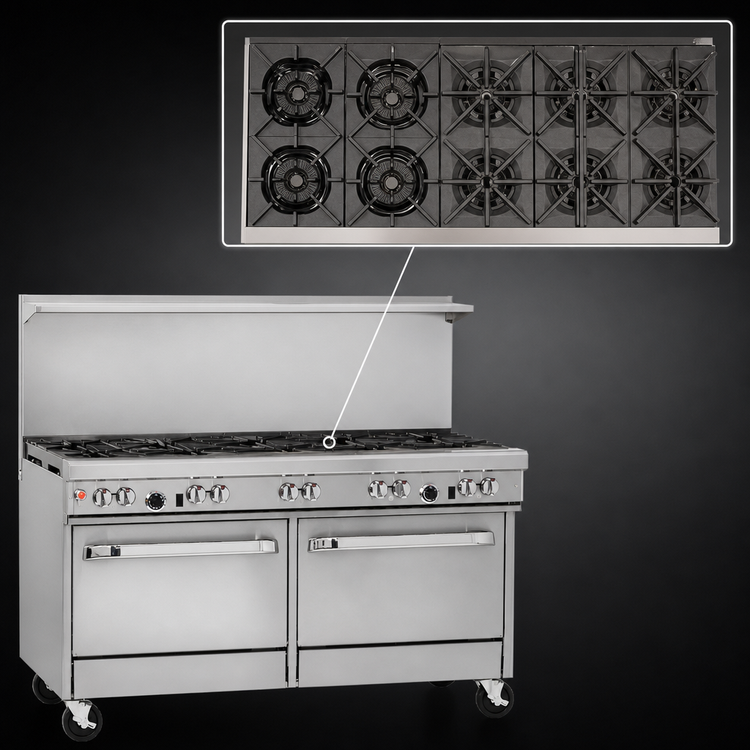

- Purpose-built burner layout:
• 3 × 33 K BTU non-clog burners (front left)
• 2 × 40 K BTU Pyromax™ power burners (rear left)
• 4 × 33 K BTU cast-iron star/sauté burners (right side) - Standing pilots on all open tops for instant lighting.

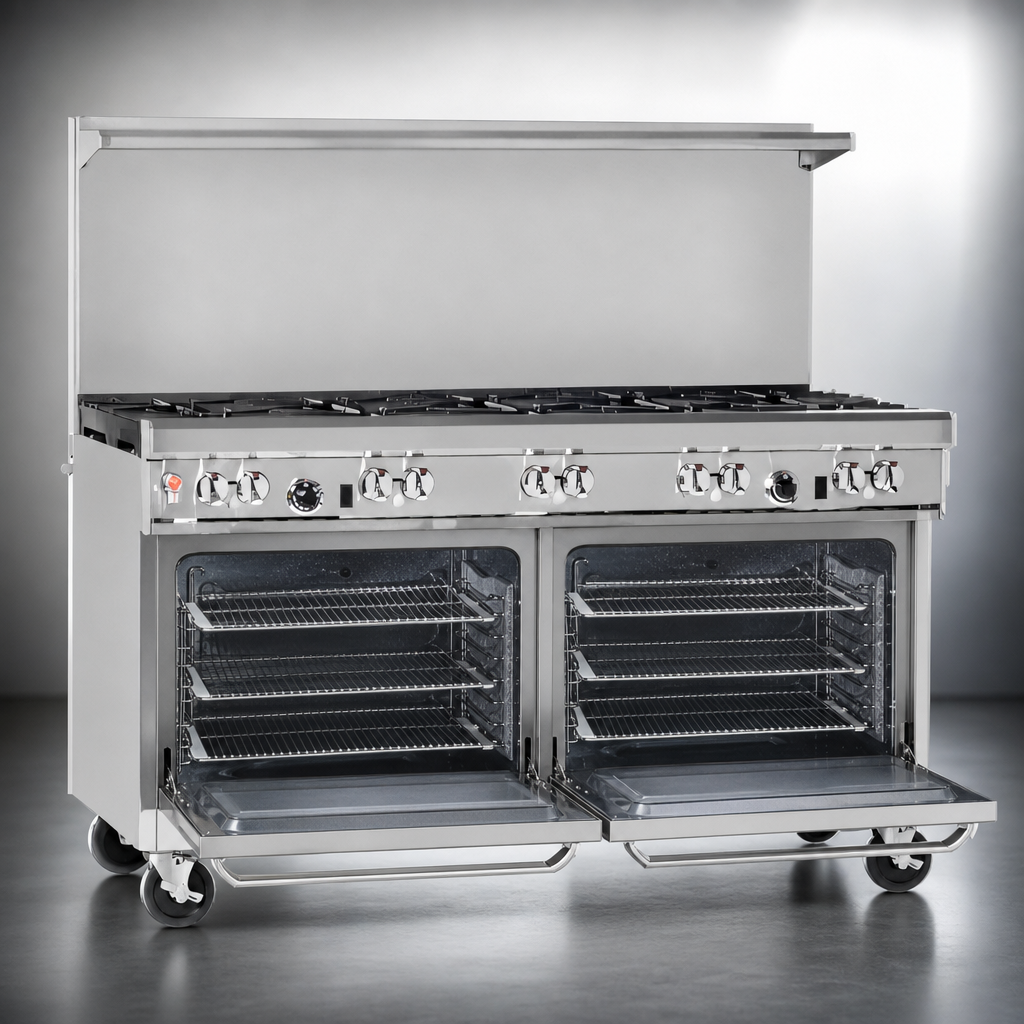

- Dual 45 K BTU standard ovens with battery-spark ignition—no external power required.
- Full stainless front, sides, 4" front rail & shelf plus 6" adjustable legs for easy cleaning and rock-solid stability.
- 22.5" flue riser with heavy-duty shelf for sheet pans, spices or cookware.
- Front-mounted manual gas shut-off and factory-installed regulator simplify installation.
- One removable cast-iron grate section per 12" plus extra-deep rear sections to hold 14" stock pots.
- 1-year parts & labor warranty backed by Southbend’s nationwide service network.
Technical Specifications
| Overall width | 60 3⁄4 in (1543 mm) |
|---|---|
| Overall depth | 34 in (864 mm) |
| Cooking surface height | 37 in (940 mm) |
| Burners | 3 × 33 K non-clog, 2 × 40 K Pyromax™, 4 × 33 K star/sauté |
| Ovens | 2 × 45 K BTU standard ovens (battery spark ignition) |
| Total input | 401,000 BTU/hr (Natural gas) |
| Gas connection | 3⁄4" NPT (left rear) |
| Min. inlet pressure | 7" W.C. Natural | 11" W.C. LP |
| Certifications | CSA, NSF – commercial use only |
| Warranty | 1-year limited parts & labor |
What’s in the Box
- Southbend Ultimate 60" gas range (assembled)
- (2) Oven racks – one per oven
- 22.5" flue riser with stainless shelf
- Factory pressure regulator
- Installation & operation manual
Popular Accessories (sold separately)
- Swivel casters (front locking)
- Extra oven racks
- Quick-disconnect gas hose (3–5 ft kits)
- 5" or 10" low-profile flue risers
- Shelf-mounted salamander or cheesemelter
- Install under a properly sized vent hood and follow all local codes.
- Limit pots larger than 12" to the rear burners to avoid heat damage to the front rail.
- This appliance is intended for commercial kitchens only—not for household use.
