Southbend (Middleby) 4603DD-4GR Ultimate Gas Ranges
Description
Southbend “Ultimate” 60" Gas Restaurant Range
2 Star/Sauté Burners • 48" Right-Side Griddle • Dual Standard OvensBuilt for high-volume kitchens that refuse to compromise on versatility or durability, the Southbend Ultimate Series 60" range delivers 236,000 BTU of precise, evenly distributed heat across powerful star burners, an expansive 48" griddle, and two full-size ovens— all wrapped in heavy-gauge stainless steel. From breakfast rush to dinner service, this single piece of equipment does it all.
Top-Line Highlights
- Two 33,000 BTU cast-iron star/sauté burners for fast, even pan work
- Oversized 48" smooth steel griddle (right side, 80,000 BTU) with manual controls & raised splash sides

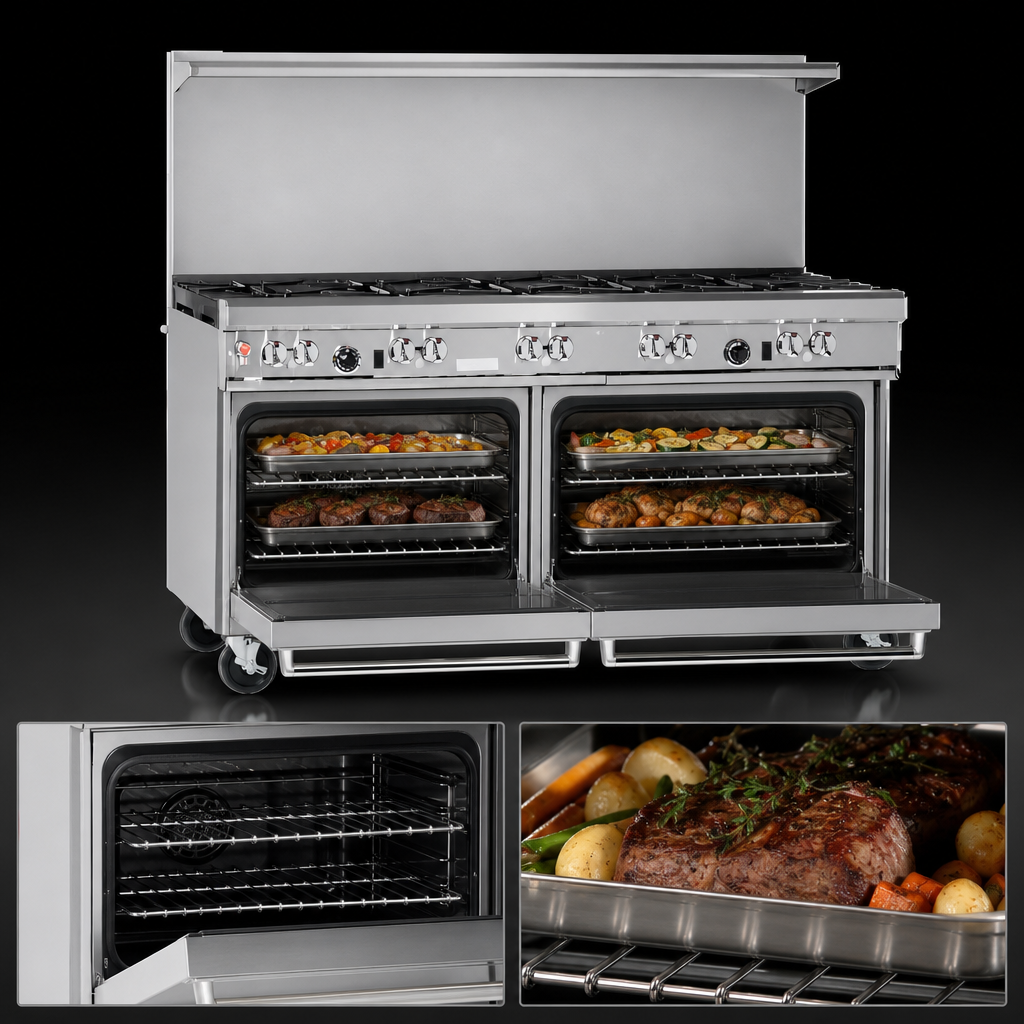

- (2) 45,000 BTU standard ovens with snap-action thermostat 175 °F – 550 °F & battery-spark ignition
- 22½" flue riser with integrated stainless utility shelf—ideal for plates & smallwares
- Front-mounted gas shut-off plus factory-installed ¾" regulator for quick install & safe service
- Standing pilots for open-top burners; no external power required
- Includes one heavy-duty rack per oven (two positions)
Built to Last
- All-stainless front, sides, 4" front rail, high-shelf & 6" adjustable legs
- 27" deep cooking surface accepts up to 14" stock pots on rear grate
- Fully porcelain-enamel oven interiors with coved corners for easy clean-up
- Spring-assisted, counter-balanced oven doors rated for years of heavy use
- Two removable one-piece drip trays keep the cook-top clear of grease
Safety & Certifications
- cCSAus, CSA Flame & CSA Star gas safety listings
- NSF listed for sanitation
- Meets ANSI Z21.69 when paired with optional quick-disconnect hose
Technical Specifications
| Overall width | 60 ¾" / 1543 mm |
|---|---|
| Overall depth | 34" / 864 mm |
| Cooking height | 37" / 940 mm |
| Cook-top configuration | (2) star burners + 48" right griddle |
| Total input | 236,000 BTU/hr (Natural gas) |
| Burners | 33,000 BTU each (x2) |
| Griddle | 80,000 BTU, 1" polished steel plate |
| Ovens | (2) 45,000 BTU standard ovens, 26" W × 26½" D × 14" H |
| Gas connection | ¾" NPT (female), left or right side opposite griddle |
| Minimum inlet pressure | 7" W.C. Natural / 11" W.C. LP |
| Electrical | None required – battery spark ignition |
| Shipping weight | Approx. 1,075 lb / 488 kg |
Warranty
Backed by Southbend’s limited 1-year parts & labor warranty.
Intended for commercial use only; see southbendnc.com/service-and-parts for full terms.
