Southbend (Middleby) 4603DD-3TR Ultimate Gas Ranges
Description

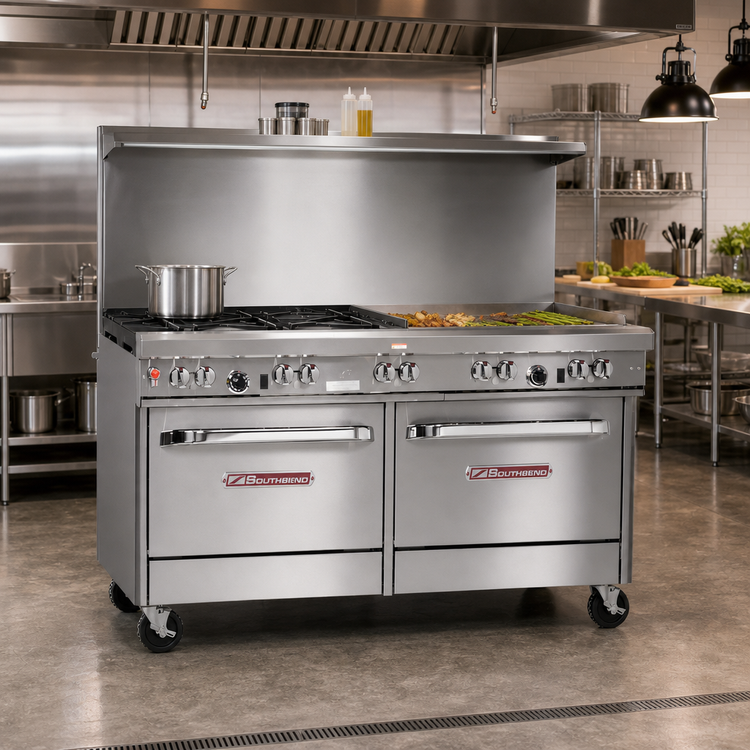

Southbend Ultimate 60" Gas Restaurant Range
4 Star/Sauté Burners • 36" Right-Side Thermostatic Griddle • Double Standard OvensBring unmatched versatility to the line with the Southbend Ultimate Series 60" range. This heavy-duty workhorse marries blistering open-top power with a precise thermostatic griddle and two full-size ovens so you can sauté, sear, grill, bake and roast from a single footprint.
Key Benefits

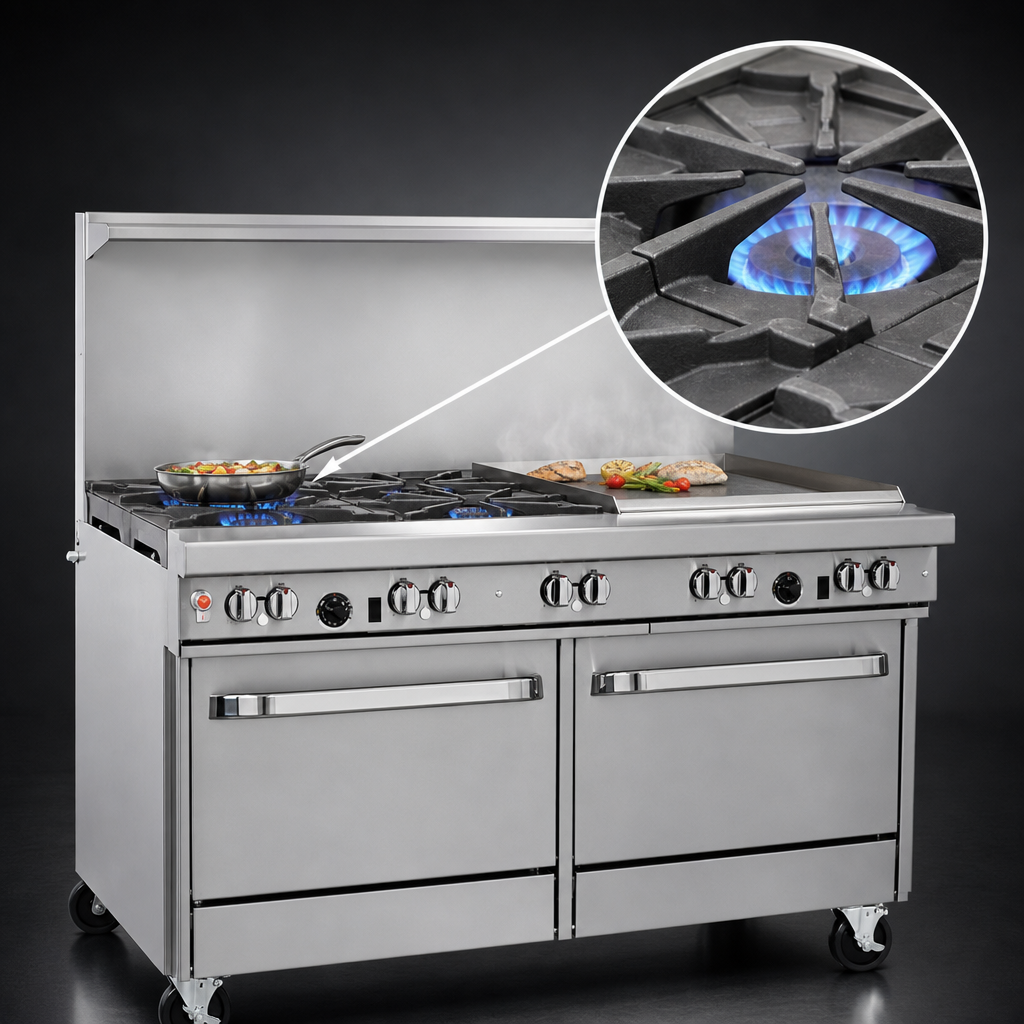

- (4) 33,000 BTU cast-iron star/sauté burners provide even, concentrated heat for rapid pan work.
- 36" polished ½" steel griddle (right side) is thermostatically controlled from 175 °F – 550 °F for exact temperature zoning.
- (2) 45,000 BTU standard ovens feature battery-spark ignition, porcelain enamel interiors and fit full-size sheet pans front-to-back or side-to-side.
- Removable cast-iron grates—rear positions accept up to 14" stock pots.
- 22½" flue riser with integrated shelf keeps plates, spices and pans within reach.
- All-stainless exterior, 4" landing rail and 6" adjustable legs simplify cleanup and stand up to daily abuse.
- Front-mounted manual gas shut-off and factory pressure regulator speed installation and service.
- Total input: 286,000 BTU; certified cCSAus, CSA Flame, CSA Star & NSF for commercial kitchens.
At-a-Glance Specs
| Model | Ultimate 60" – 4601DD configuration |
|---|---|
| Overall width | 60 3⁄4" / 1543 mm |
| Overall depth | 34" / 864 mm |
| Cooking surface height | 37" / 940 mm |
| Overall height (to flue) | 59 1⁄2" / 1511 mm |
| Open burners | (4) Star/sauté, 33,000 BTU each, standing pilots |
| Griddle | 36" W × 27" D × ½" thick, thermostatic, 96,000 BTU |
| Ovens | (2) Standard, 45,000 BTU each, 175 °F – 550 °F |
| Total input | 286,000 BTU/hr (Natural Gas) |
| Gas connection | 3/4" NPT, right rear (Nat. 7" W.C. / LP 11" W.C.) |
| Electrical | None required – battery spark ignition |
| Shipping weight | Approx. 1,075 lb / 488 kg |
| Warranty | 1-year limited parts & labor |
| Certifications | NSF, CSA Flame, CSA Star, cCSAus |
What’s Included
- (4) Removable cast-iron burner grates
- (2) Chrome-plated oven racks (one per oven)
- 22 ½" flue riser with utensil shelf
- Factory-installed pressure regulator
- 6" stainless steel adjustable legs
- User & installation manual
