Southbend (Middleby) 4603DD-3CR Ultimate Gas Ranges
Description
Ultimate™ 60" Gas Restaurant Range
4 Star/Sauté Burners • 36" Right-Side Charbroiler • Dual Standard OvensDesigned for the busiest professional kitchens, the Southbend Ultimate™ Series combines heavy-duty construction with the flexibility chefs need every day. Four high-performance star burners sit next to a full 36" charbroiler, all above two spacious standard ovens—delivering a total 318,000 BTU of cooking power in one rugged 60" platform.
Why You’ll Love It

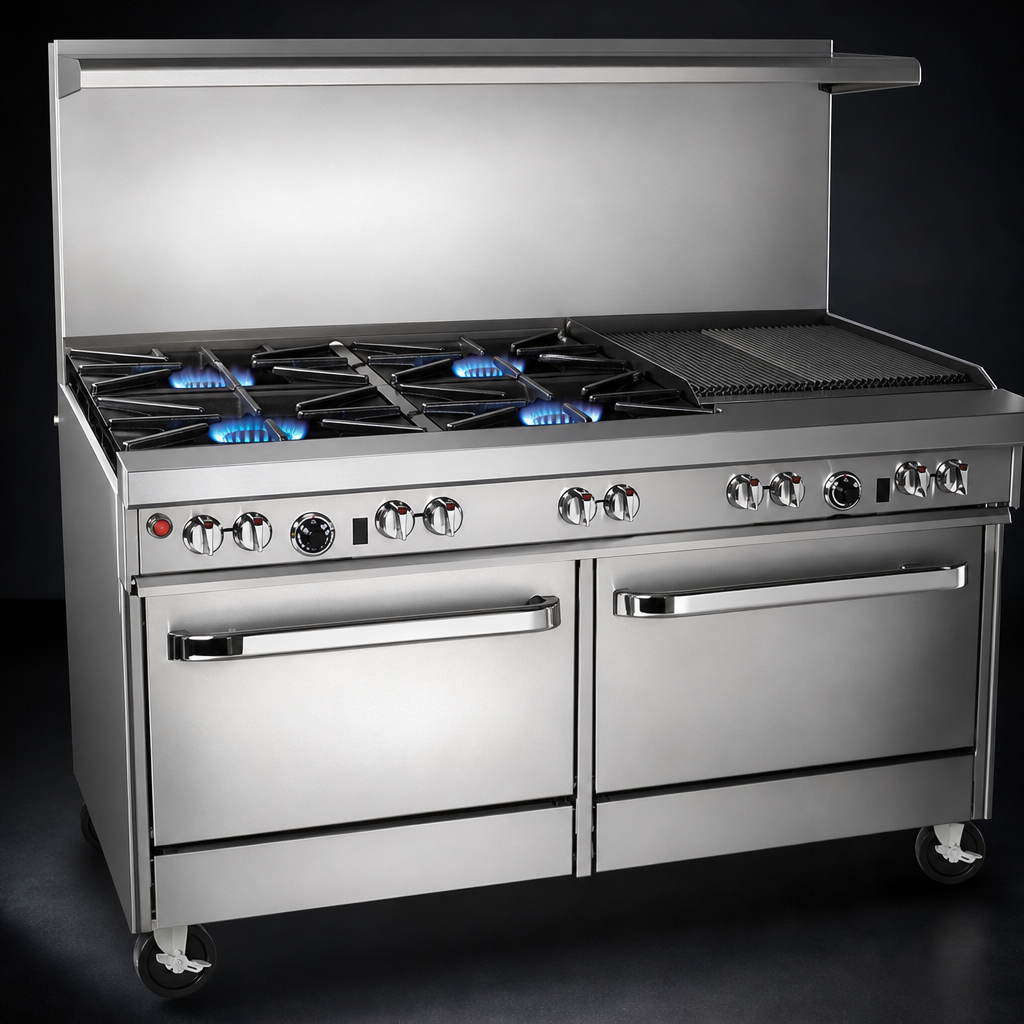

- 4 × 33,000 BTU Star/Sauté Burners – cast-iron, clog-free design for even flame distribution.

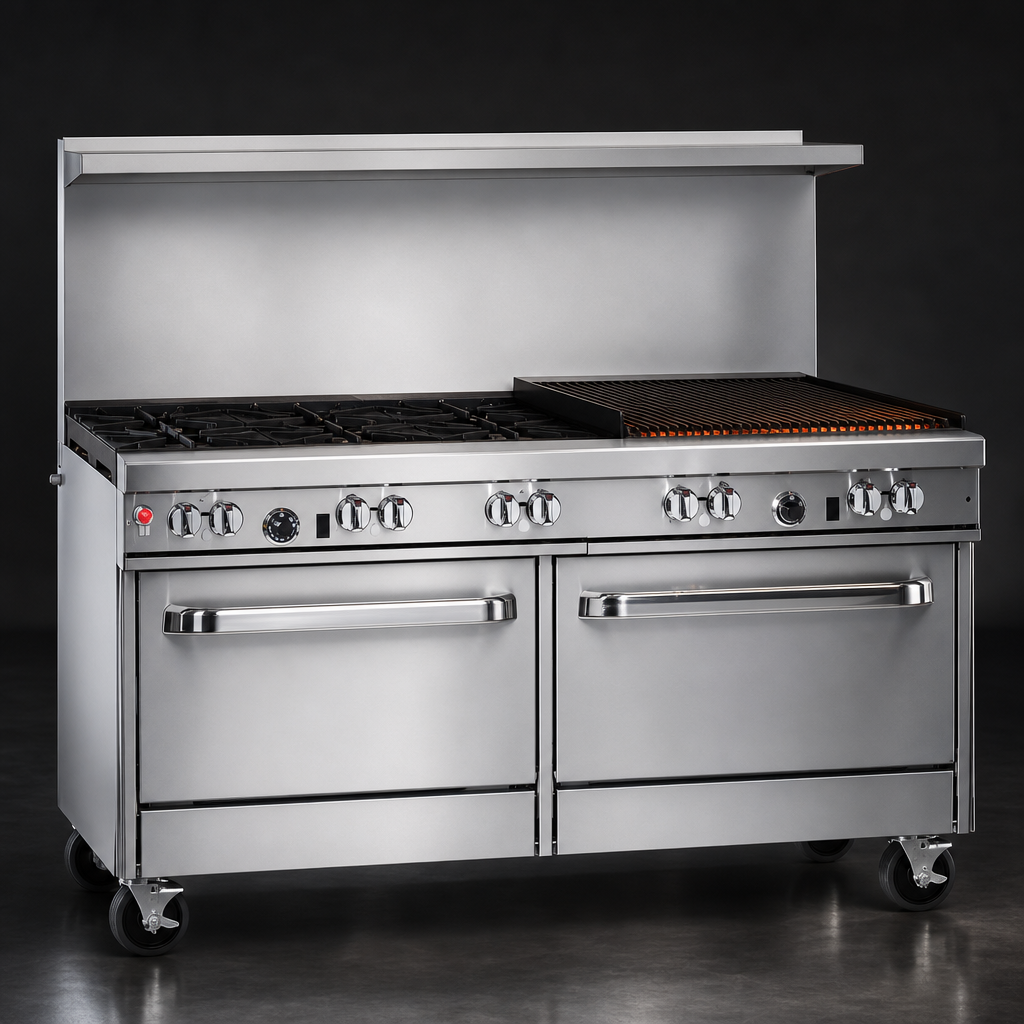

- 36" Charbroiler (right side) – 96,000 BTU NAT, cast grates with standing pilots for instant readiness.
- Two 45,000 BTU Standard Ovens – battery spark ignition, porcelain interiors & one rack each.
- 22-1/2" Flue Riser with Integrated Shelf – keep plates, spices or smallwares within reach.
- Stainless Steel All Around – front, sides, shelf & 6" adjustable legs resist corrosion and clean fast.
- Front-Mounted Gas Shut-Off & Factory Regulator for quick, safe maintenance.
- CSA & NSF Listed – built for code-compliant installation in any commercial kitchen.
- 1-Year Parts & Labor Warranty backed by Southbend’s national service network.
At-A-Glance Specs
| Model | 460DD-Star/Char |
|---|---|
| Overall Width | 60-3/4" (1543 mm) |
| Overall Depth | 34" (864 mm) |
| Cooking Surface Height | 37" (940 mm) |
| Flue Riser Height | 22-1/2" with heavy-duty shelf |
| Total BTU Input | 318,000 BTU/hr (Natural Gas) |
| Top Configuration | 4 × Star burners (33k BTU ea.) + 36" charbroiler (96k BTU) |
| Oven BTU / Capacity | 2 × 45k BTU; 14"H × 26"W × 26-1/2"D – full-size pans fit both ways |
| Gas Connection | 3/4" NPT, 7" W.C. minimum (Natural) |
| Ignition | Standing pilots (burners/charbroiler) • Battery spark (ovens) |
| Shipping Weight | Approx. 1,075 lb (488 kg) |
Included With Your Range
- Two oven racks (one per oven, two-position rails)
- Factory-installed pressure regulator
- Adjustable 6" stainless steel legs
- User & installation manual
Popular Add-Ons (Sold Separately)
- Swivel casters with front locks
- Extra oven racks
- 10" or 5" flue risers
- Quick-disconnect gas hose assemblies
- Shelves, salamander or cheesemelter mounts
• Install on quarry tile, cement, or natural-stone flooring, or contact the factory for alternatives.
• Keep oversized cookware (12" Ø +) on the rear grates to avoid overheating the front rail.
• Never cover the charbroiler with a sheet pan while burners are on—damage is not warranty-covered.
