Southbend (Middleby) 4603DC-7L Ultimate Gas Ranges
$10,838.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) 4603DC-7L Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4603DC-7L Ultimate Gas Ranges
$10,838.00
Unit price
/
Unavailable
Description

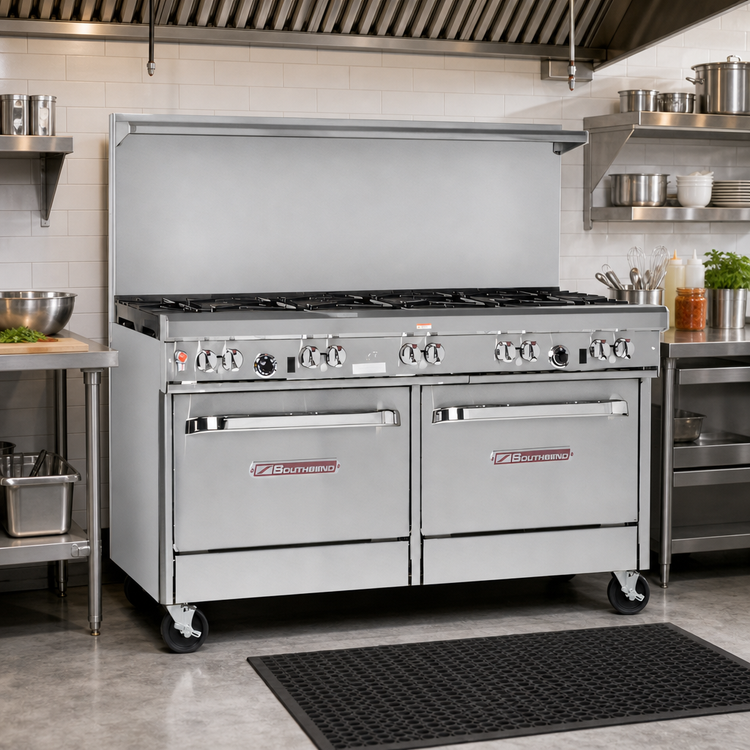

Southbend Ultimate 60" Gas Restaurant Range
4 Star/Sauté Burners • 4 Pyromax Burners • Standard Oven & Cabinet Base • 337,000 BTUBuilt for kitchens that refuse to compromise, the Southbend Ultimate 60" range delivers blistering output, rock-solid durability, and the flexibility to handle sauté pans, stock pots, and everything in between—all in one rugged, stainless-steel chassis.
Key advantages
-

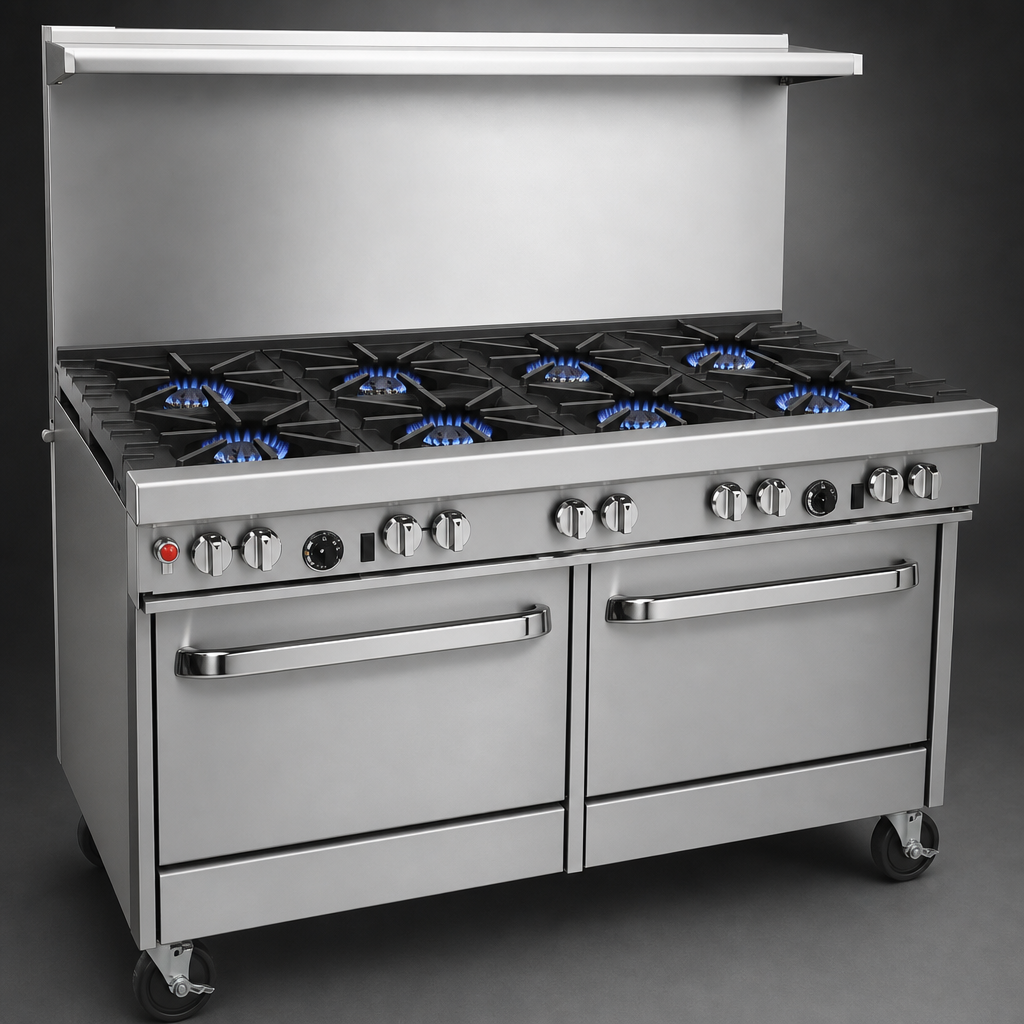

Eight open burners, two performance profiles –
• 4 high-efficiency 33,000 BTU star/sauté burners for fast, even heat
• 4 patented Pyromax™ 40,000 BTU power burners (left side) built for heavy stock-pot duty - 27"-deep cooking surface accepts up to a 14" stock pot on the rear grates.
- 45,000 BTU standard oven with battery-spark ignition; 175-550 °F thermostat and one rack (2 positions).
- Right-hand stainless cabinet base adds convenient, ventilated storage.
- 22 ½" heavy-duty flue riser with integrated overshelf keeps plating essentials within reach.
- Front-mounted manual gas shut-off and factory-installed regulator simplify installation and service.
- All-stainless front, sides, shelf and 4" front rail; 6" adjustable stainless legs included.
- CSA & NSF listed for safe, worry-free operation in any commercial kitchen.
Performance you can measure
| Total Input (Natural Gas) | 337,000 BTU/hr |
|---|---|
| Burner Configuration | (4) 33,000 BTU star/sauté + (4) 40,000 BTU Pyromax |
| Oven Output / Type | 45,000 BTU standard oven, battery-spark ignition |
| Cooking Surface | 60 ¾" W × 27" D cast-iron grates |
| Overall Dimensions | 60 ¾" W × 34" D × 59 ½" H (to top of flue) |
| Work Height | 37" to cooking surface |
| Gas Connection | ¾" NPT, right-rear (factory can relocate when optional tops are specified) |
| Inlet Pressure | Natural 7" WC • LP 11" WC |
| Construction | Stainless steel front, sides, shelf & legs; porcelain-enameled oven interior |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see warranty statement) |
What’s included
- (8) removable cast-iron grate tops with two full-width drip trays
- (1) oven rack with two-position side rails
- (1) 22 ½" flue riser with storage shelf
- Factory-installed pressure regulator & front gas shut-off
Popular add-ons (sold separately)
- Stainless cabinet doors for base
- Swivel casters (front locking)
- Quick-disconnect gas hose kits (3–5 ft)
- Extra oven racks
- 10" or 5" flue risers, salamander/cheesemelter mounts & more
For commercial use only.
Southbend recommends installing the range under a properly ventilated hood and limiting oversized cookware (12" +) to the rear grates to avoid excessive front-rail heat.
Southbend recommends installing the range under a properly ventilated hood and limiting oversized cookware (12" +) to the rear grates to avoid excessive front-rail heat.
Need help with budgeting? Ask us about fast, fixed-payment equipment financing through Middleby Finance.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, CSA
Height
59.5in
Width
60.75in
Depth
34.0in
Shipping Weight
1075.0lbs
Top
(8) open burners
Vent
backriser with hi-shelf
Exterior Finish
stainless steel front & sides
Base
(1) standard oven, (1) cabinet
Specifications
Ultimate Restaurant Range, gas, 60", (4) star/sauté burners, (4) pyromax burners left, standing pilot, (1) standard oven with battery spark ignition, (1) cabinet base, includes (1) rack, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 337,000 BTU, CSA, NSF
