Southbend (Middleby) 4603DC-6R Ultimate Gas Ranges

Southbend “Ultimate” 60" Restaurant Range – 7-Burner / Std. Oven & Cabinet Base

Built for kitchens that run hard from open to close, the Southbend Ultimate Range combines powerful open-top performance with a rock-solid oven platform – all wrapped in heavy-gauge stainless steel. This 60" configuration blends high-output Pyromax burners with precision star/­sauté burners, giving chefs instant, even heat for every technique from rapid stock reduction to delicate pan sauces.

Why You’ll Love It

• Seven open burners, purpose-built: (4) 33,000 BTU star/­sauté burners on the left, (3) 33,000 BTU star/­sauté burners front-right for even flame coverage, plus (2) 40,000 BTU Pyromax power burners in the rear-right for woks, stockpots or blazing heat recovery.
• 356,000 BTU total output – muscle through the rush without losing sizzle.

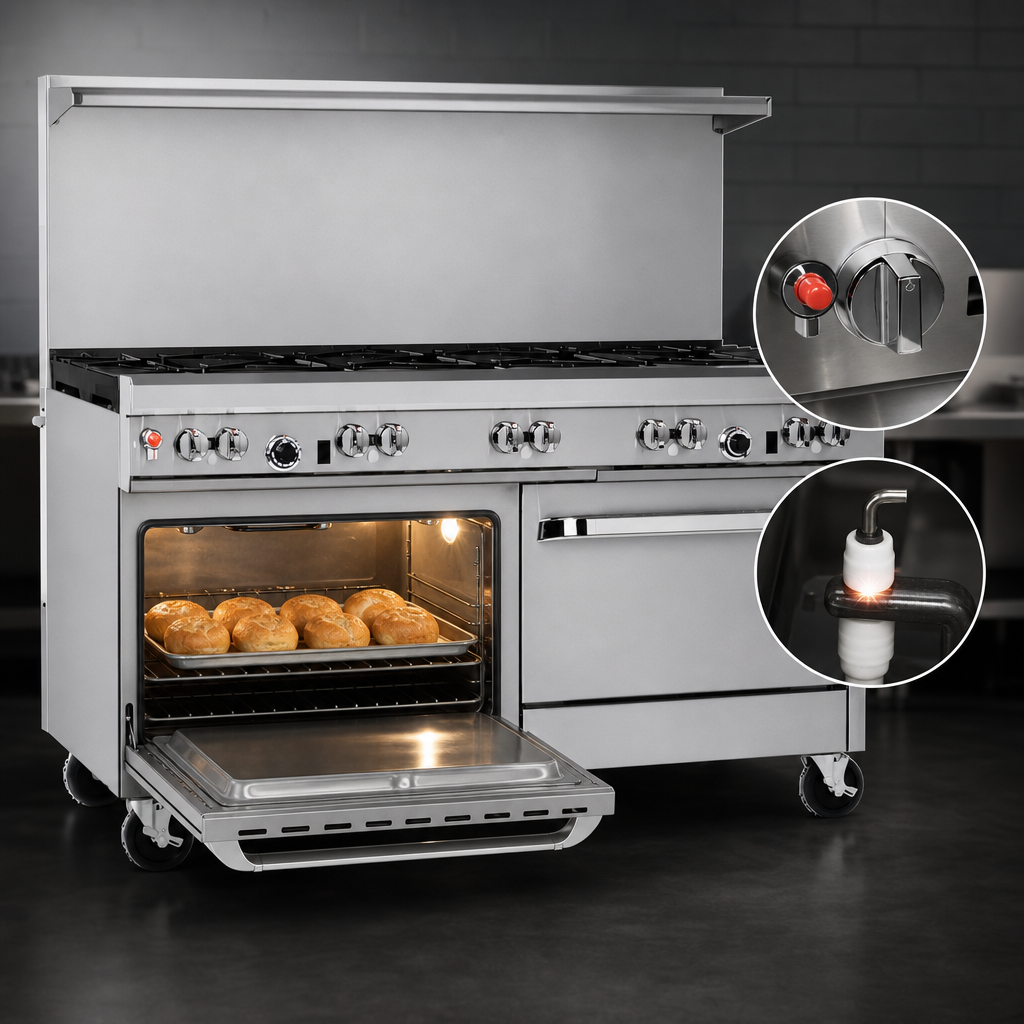

• Standard oven + cabinet: 45,000 BTU bake/roast cavity with battery-spark ignition below the left section; full-width cabinet base on the right keeps hotel pans, lids and smallwares at arm’s reach (optional doors available).
• 22½" flue riser with integrated shelf – perfect for small pans, spices or plating trays while freeing up prep space.
• All-stainless exterior (front, sides, shelf & 6" adjustable legs) stands up to daily scrubbing and harsh detergents.
• Front-mounted main gas shut-off for quick, one-handed safety control.
• Modular grate system: four removable cast-iron tops accommodate up to a 14" stock pot on the rear.
• Factory-installed regulator and standing pilots on open burners for reliable lighting.
• 1-year parts & labor warranty backed by Southbend’s national service network.

Technical Specifications

What’s Included

• 22.5" flue riser with heavy-duty shelf
• (1) chrome oven rack, 2-position side rails
• Factory pressure regulator & battery-spark ignition kit
• Stainless 6" legs with locking collar feet
• Owner’s manual & start-up checklist

Common Upgrades (Sold Separately)

• Flue risers: 5" or 10" low-profile versions
• Stainless cabinet doors or open-base drawers
• All-swivel casters (front two locking)
• Rear step-up burner kit or additional Pyromax sets
• Salamander / cheesemelter mounting frames

Need flexible financing? Ask about Middleby’s Culinary Finance program for low, fixed monthly payments.
