Southbend (Middleby) 4603DC-5R Ultimate Gas Ranges
Description

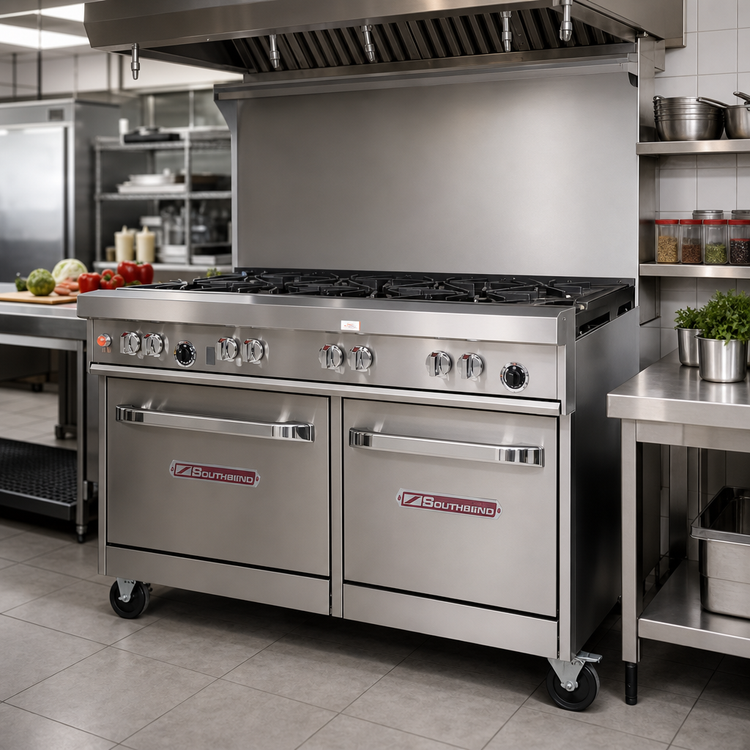

Southbend Ultimate 60" Gas Restaurant Range – Mixed Top, Standard Oven & Cabinet Base
Model series 460 – configuration “DC” (Standard Oven + Cabinet) | 356,000 BTU | Natural GasPurpose–built for the high-volume commercial kitchen, the Southbend Ultimate 60" range delivers unrivaled power, flexibility and durability. A unique nine-burner layout pairs ultra-high-output Pyromax™ ports with Southbend’s patented clog-free cast-iron burners, giving chefs immediate access to gentle sauté heat and roaring wok fire on the same deck. A full-size 45,000 BTU oven and stainless cabinet base maximize productivity and storage, while the 22½" flue riser shelf keeps smallwares close at hand.
Why This Range Rocks
- 356,000 BTU total – serious firepower for searing, boiling and finishing.

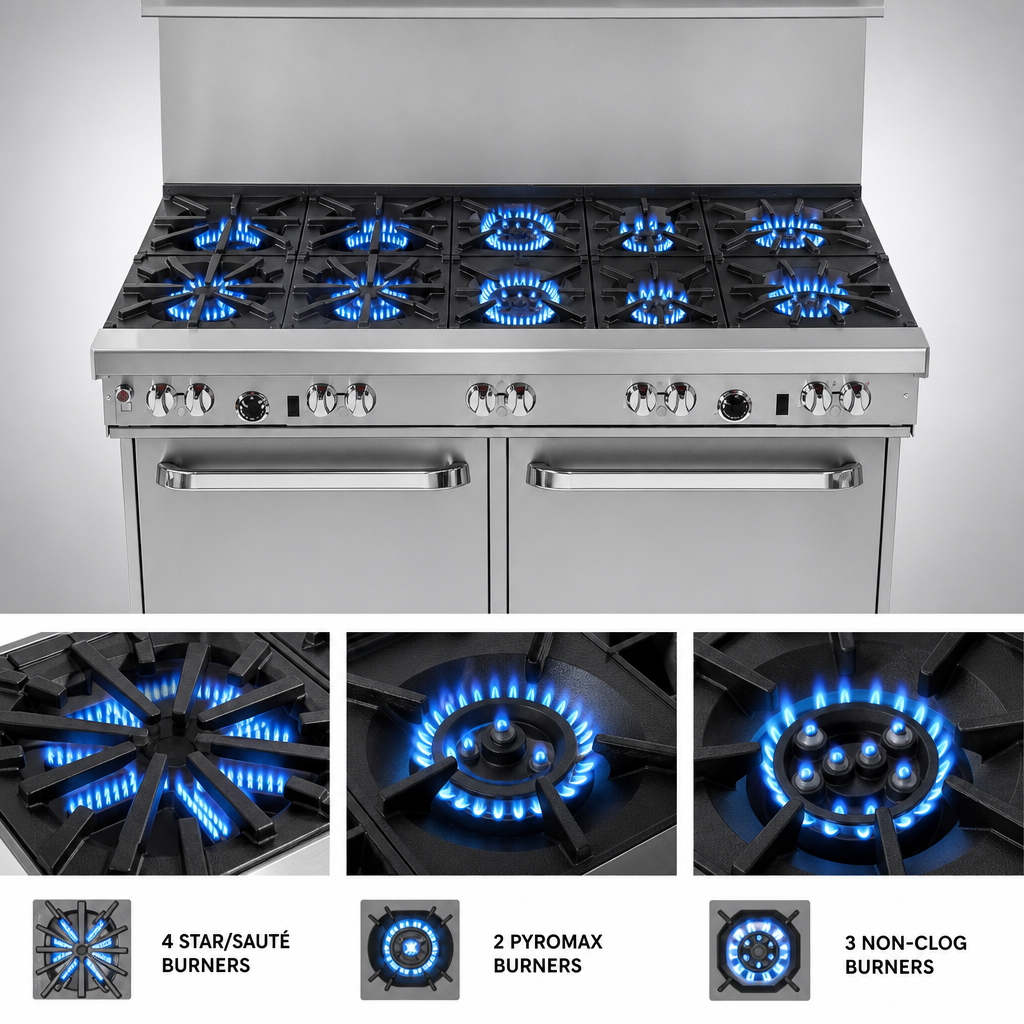

- Mixed top layout:
- 3 × 33,000 BTU non-clog open burners (front right)
- 2 × 40,000 BTU Pyromax™ high-output burners (rear right)
- 4 × 33,000 BTU cast-iron star/sauté burners (left bank)
- Heavy-duty cast-iron grates and drip trays lift out for fast cleaning.
- Full-size standard oven (45,000 BTU) with battery-spark ignition—no electric hook-up needed.
- Stainless cabinet base on the right keeps sheet pans, stock pots or smallwares organized (doors available at no charge).
- 22½" flue riser shelf adds convenient plating or utensil space without sacrificing hood capture.
- 4" deep stainless front rail and front-mounted gas shut-off for safe, ergonomic operation.
- 6" adjustable stainless legs level easily on uneven floors (caster kit optional).
- Factory-installed ¾" regulator; CSA & NSF listed for commercial use.
Technical Specifications
| Overall width | 60.75" (1543 mm) |
|---|---|
| Overall depth | 34" (864 mm) |
| Cook surface depth | 27" (686 mm) |
| Cooking height | 37" (940 mm) |
| Height to top of flue | 59.5" (1511 mm) |
| Total BTU input | 356,000 BTU/hr (Natural Gas) |
| Burners | 3 × 33 k, 2 × 40 k, 4 × 33 k |
| Oven type / input | Standard, 45,000 BTU, battery spark |
| Oven interior (WxDxH) | 26" × 26.5" × 14" – fits full-size sheet pans both ways |
| Racks supplied / positions | 1 rack / 2 positions |
| Second base | Stainless cabinet with open storage (doors optional) |
| Gas connection | ¾" NPT, min inlet 7" W.C. (NAT) – regulator included |
| Electrical | None required (battery ignition only) |
| Certifications | CSA, NSF |
| Warranty | 1 year parts & labor (see details below) |
Peace-of-Mind Warranty
Southbend backs the Ultimate series with a one-year, on-site parts & labor warranty, serviced by factory-authorized technicians nationwide. (Consumable items such as oven lights and door gaskets carry a 90-day warranty.)
