Southbend (Middleby) 4603DC-4TR Ultimate Gas Ranges
Southbend (Middleby) 4603DC-4TR Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4603DC-4TR Ultimate Gas Ranges
Description

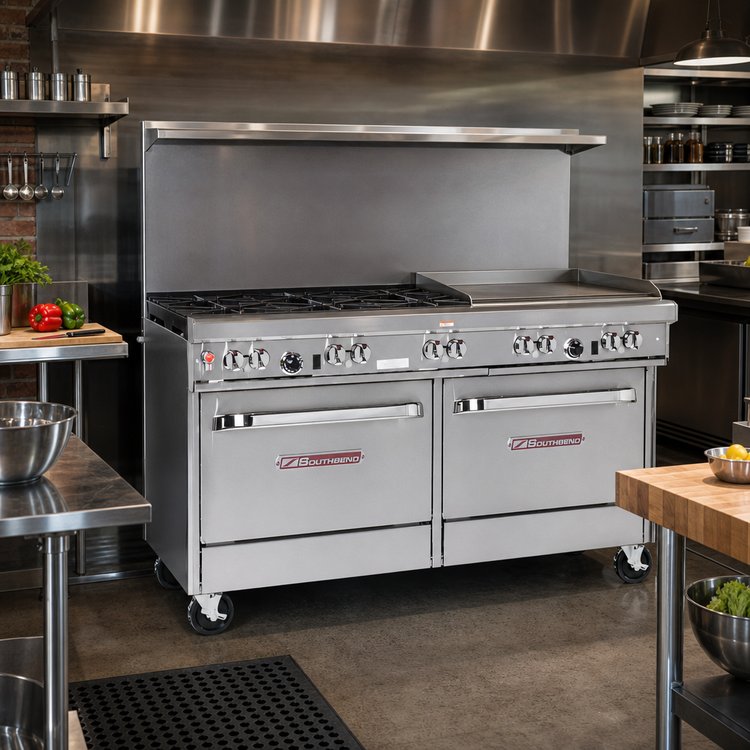

Southbend “Ultimate” 60" Gas Restaurant Range
2 Star Burners • 48" Thermostatic Griddle (Right) • Standard Oven + Cabinet BaseBuilt for high-volume kitchens that refuse to compromise, the Southbend Ultimate Series blends raw power, precision controls and bullet-proof construction into one versatile 60" platform. From lightning-fast sauté work on the left-side star burners to consistent, edge-to-edge grilling on the right-side 1" steel griddle, every inch is engineered to keep tickets moving.
Key Performance Features
- (2) 33,000 BTU star/sauté burners w/ standing pilots & removable cast-iron grates.
- Right-side 48" thermostatic griddle – 1" polished steel plate delivers even temps for breakfast, burgers or searing proteins (96,000 BTU).
- 45,000 BTU standard oven with battery-spark ignition; porcelain interior (14" H × 26" W × 26.5" D) and 1 rack (2 positions).
- Full-width stainless cabinet base provides convenient sheet-pan storage; doors available at no charge.
- 22½" flue riser with heavy-duty shelf for warming plates or smallwares.
- 4" welded front rail keeps pans secure; front-mounted manual shut-off valve for quick service.
- 6" stainless, adjustable legs standard (casters optional).
- Total input: 191,000 BTU/hr; factory pressure regulator & ¾" rear gas connection (natural gas).
- Rugged all-stainless exterior (front, sides, shelf) stands up to daily abuse and wipes clean fast.
- Certified cCSAus, CSA Flame, CSA Star & NSF for nationwide code compliance.
At-a-Glance Specs
| Cooking surface height | 37" |
|---|---|
| Overall width | 60 ¾" |
| Overall depth | 34" |
| Height w/ flue riser | ≈ 59 ½" |
| Burners | 2 star burners @ 33,000 BTU each |
| Griddle plate | 48" W × 27" D × 1" T (thermostatic) |
| Oven interior | 14" H × 26" W × 26.5" D (porcelain) |
| Cabinet base | Stainless, open (doors optional) |
| Total BTU | 191,000 BTU/hr (Natural Gas) |
| Gas connection | ¾" NPT (7" W.C. min. inlet pressure) |
| Warranty | 1-year parts & labor, factory installed regulator included |
Included With Your Range
- (1) Oven rack
- Factory-installed gas pressure regulator
- User & installation manual
Need financing? Ask about Middleby Equipment Financing for fast credit decisions and fixed monthly payments.
