Southbend (Middleby) 4603DC-3GR Ultimate Gas Ranges
Description
Southbend Ultimate 60" Gas Restaurant Range
4 Star/Sauté Burners • 36" Right-Side Griddle • Standard Oven & Cabinet BaseEngineered for high-volume kitchens that refuse to compromise, the Ultimate Series delivers heavy-duty performance, fast recovery and rock-solid durability. With 241,000 BTU of total input, this 60" model combines blistering burner heat, even-heating griddle capacity and a full-size oven—all wrapped in easy-to-clean stainless steel.
Key Highlights
- Four (4) 33,000 BTU cast-iron star/saute burners with standing pilots

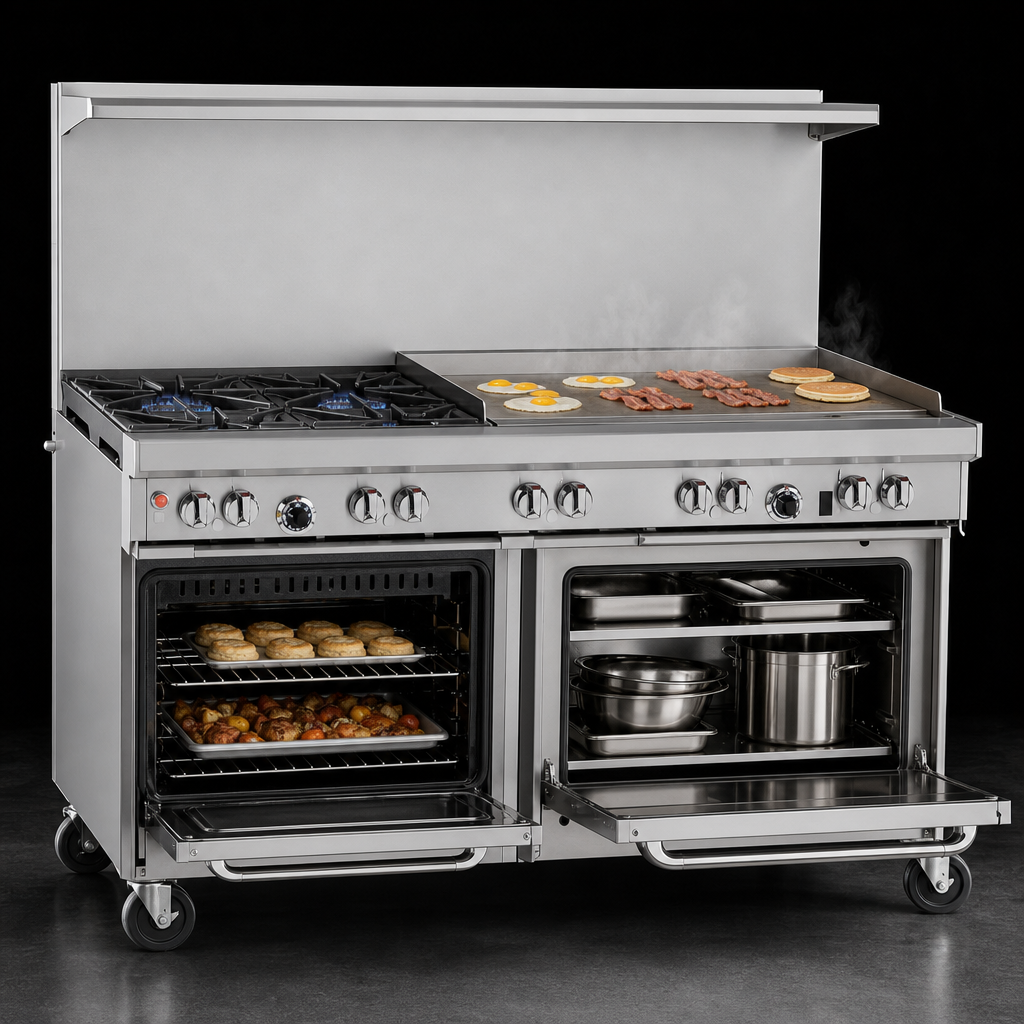

- 36" x 1/2" polished steel right-side griddle (manual control) – 64,000 BTU
- 45,000 BTU standard oven with battery-spark ignition & 175 – 550 °F thermostat
- Full stainless cabinet base keeps sheet pans and smallwares at hand
- 22-1/2" flue riser with integrated heavy-duty shelf for warming plates & spices
- Removable cast-iron grates; rear positions accept up to 14" stock pots
- Front-mounted 4" stainless rail plus manual shut-off for entire range
- Factory-installed 3/4" regulator & pressure test connection
- 6" stainless steel adjustable legs (casters optional)
- Total input: 241,000 BTU/hr
Technical Specifications
| Model | Ultimate 60" (Southbend 460 Series) |
|---|---|
| Overall width | 60 ¾" / 1543 mm |
| Depth (front ➜ back) | 34" / 864 mm |
| Working height | 37" cooking surface |
| Height w/ riser | 59 ½" |
| Open burners | 4 × 33,000 BTU star burners |
| Griddle | 36" right, ½" plate, 64,000 BTU |
| Oven | Standard (14"H × 26"W × 26 ½"D), 45,000 BTU, includes 1 rack / 2 positions |
| Base | Stainless cabinet storage (doors optional at no charge) |
| Gas connection | 3/4" NPT (rear, opposite griddle side) – Natural 7" W.C. / LP 11" W.C. |
| Total BTU input | 241,000 BTU/hr |
| Certifications | cCSAus, CSA-Flame, CSA-Star, NSF |
| Warranty | 1-year limited parts & labor |
What’s Included
- (1) Chrome oven rack
- Pressure regulator (factory installed)
- User, installation & service manuals
Southbend’s Ultimate Series is intended for commercial use only. Oversized cookware should be confined to rear burners to prevent rail damage. Refer to the included warranty sheet for complete terms and conditions.
