Southbend (Middleby) 4603DC-2RR Ultimate Gas Ranges
Southbend (Middleby) 4603DC-2RR Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4603DC-2RR Ultimate Gas Ranges
Description

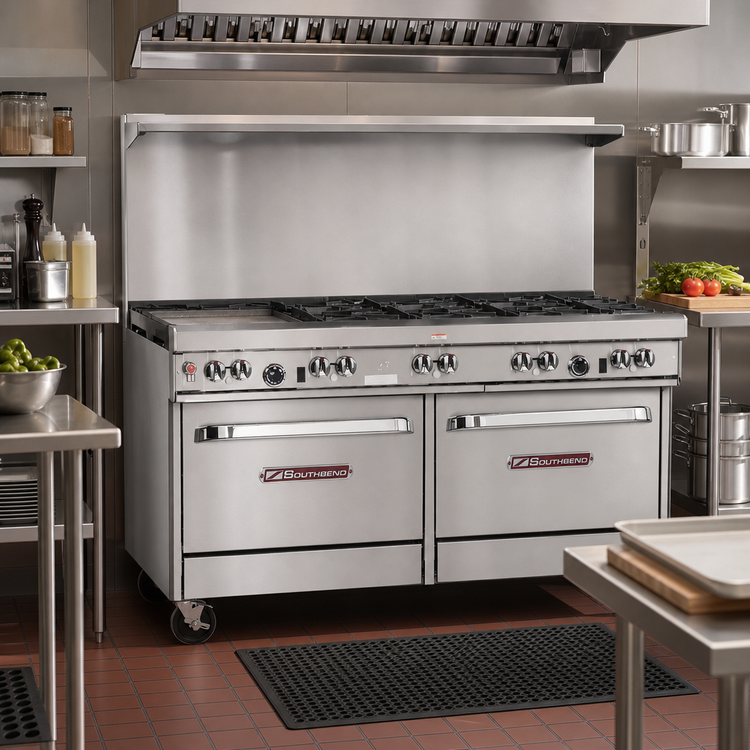

Southbend Ultimate 60" Restaurant Range – Star/Sauté Burners & Raised Griddle-Broiler
Natural Gas • 276,500 BTU • Model 460DD-UGBBuilt for kitchens that never slow down, the Southbend Ultimate packs six high-output star burners, a 24" raised griddle with broiler, and a full-size oven into just five feet of line space. Stainless steel construction, front-mounted controls, and a one-year parts & labor warranty make this the last range you’ll need for years to come.
Key Features
- Six patented clog-free cast-iron star/sauté burners, 33,000 BTU each for a blazing 198,000 BTU of open-top power.

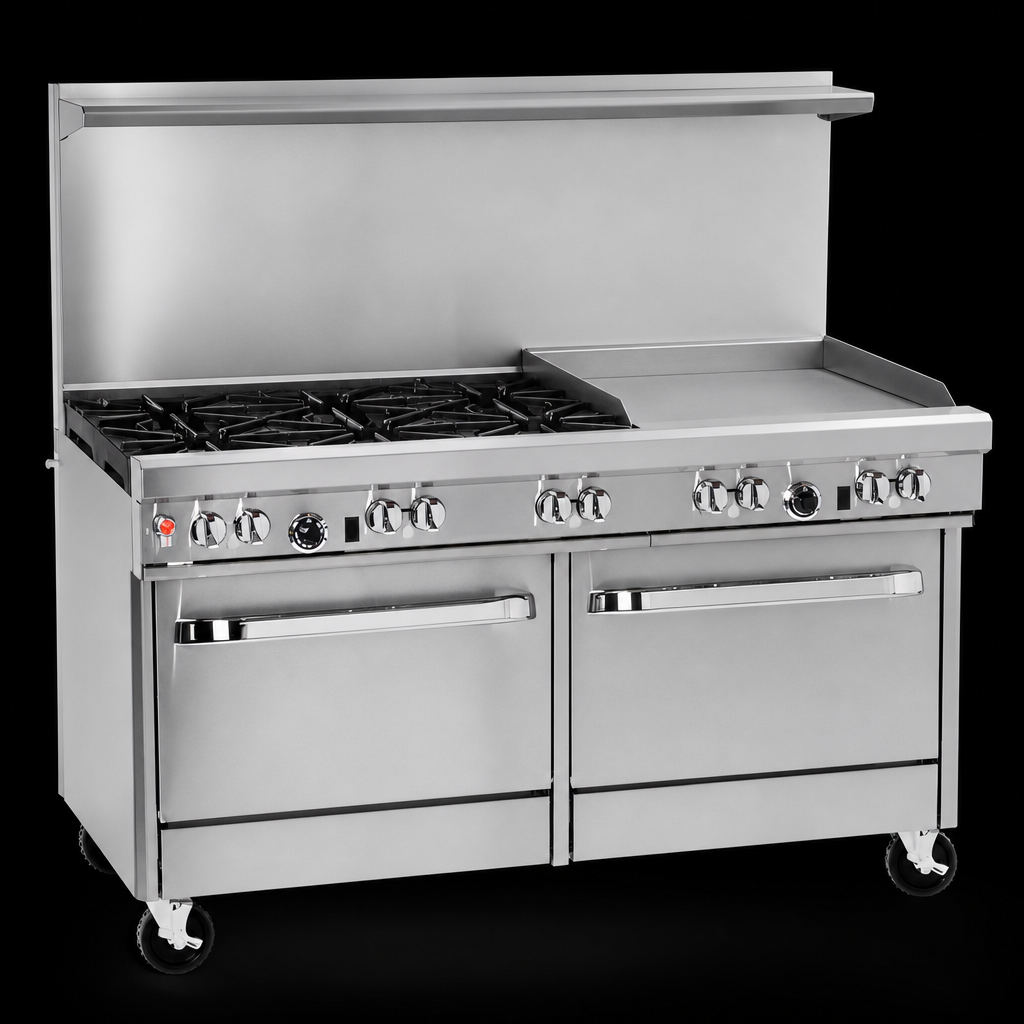

- 24" smooth steel raised griddle (manual control) with 64,000 BTU under-fired broiler—ideal for searing, finishing & flash broiling.
- 45,000 BTU standard oven with battery-spark ignition and porcelain-enameled cavity for effortless wipe-down.
- Right-side stainless cabinet base keeps sheet pans and small-wares within arm’s reach.
- 22.5" flue riser with heavy-duty shelf creates extra plating or pan-warming space.
- Front ¾" manual shut-off valve and factory-installed regulator simplify installation and service.
- 6" stainless adjustable legs standard; optional casters available.
- NSF-listed and cCSAus, CSA-Flame & CSA-Star certified for gas safety and sanitation.
- One-year limited parts & labor warranty backed by Southbend’s nationwide service network.
Performance Specs
| Overall width | 60 3⁄4 in (1543 mm) |
|---|---|
| Depth (with flue) | 34 in (864 mm) |
| Cooking surface height | 37 in (940 mm) |
| Open burners | 6 × 33,000 BTU star/sauté (198,000 BTU total) |
| Raised griddle / broiler | 24" plate, 64,000 BTU |
| Standard oven | 45,000 BTU • 14 H × 26 W × 26.5 D in interior (full-size pans fit both ways) |
| Total gas input | 276,500 BTU / hr |
| Gas connection | ¾" NPT (left rear; moves to opposite side when griddle is on left) |
| Required inlet pressure | Natural Gas – 7" W.C. |
| Clearances to combustibles | 10" sides & rear (charbroiler units only) • 0" sides & rear for all other tops & bases |
| Certifications | NSF • cCSAus • CSA-Flame • CSA-Star |
| Warranty | 1-year parts & labor (details) |
What’s in the Box
- One heavy-duty chrome oven rack (additional racks available)
- 22.5" stainless flue riser with integrated shelf
- Factory pressure regulator & installation hardware
- User, installation & warranty documentation
Preserve cash flow with fixed monthly payments—ask us about Middleby Equipment Financing.
