Southbend (Middleby) 4603CC Ultimate Gas Ranges
Southbend (Middleby) 4603CC Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4603CC Ultimate Gas Ranges
Description

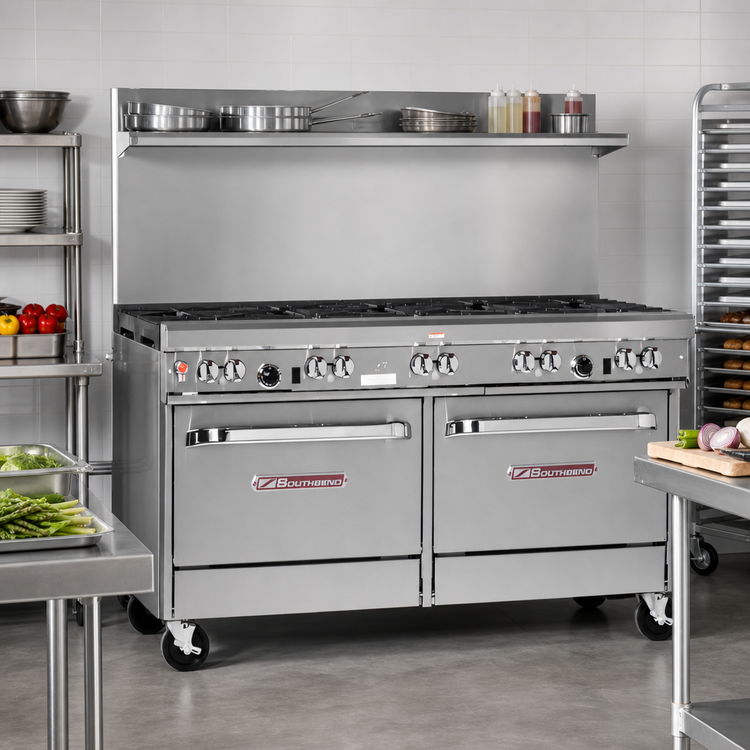

Ultimate 60" Gas Restaurant Range – 10 Star/Sauté Burners, Dual Cabinet Base
Southbend Ultimate Series • Model 460 DDBuilt for the busiest commercial kitchens, the Southbend Ultimate 60" Range delivers a powerful 330,000 BTU punch across ten patented star burners while giving you the rugged durability chefs have trusted since 1898.
Top Reasons Chefs Choose the Ultimate Range

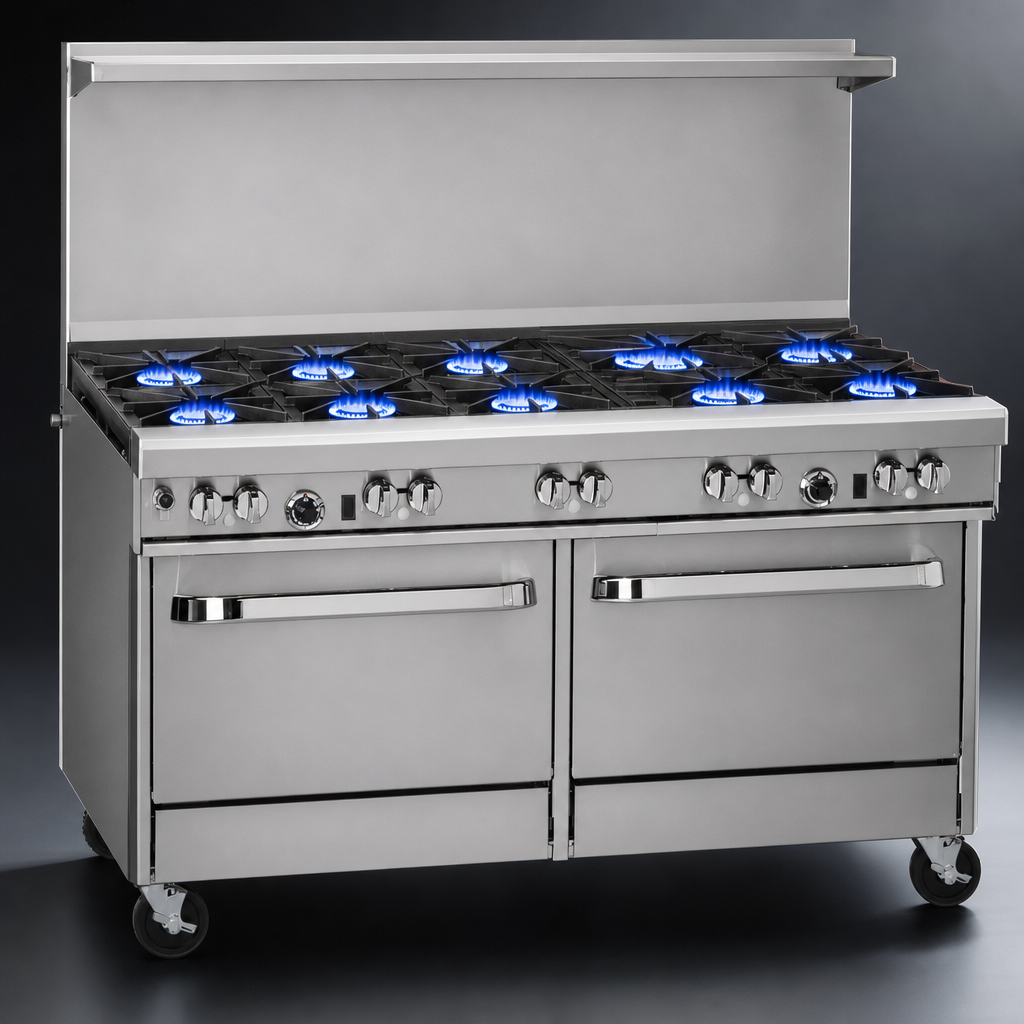

- Ten lifetime-clog-free, one-piece cast-iron star burners (33,000 BTU EA) for even, edge-to-center flame distribution.

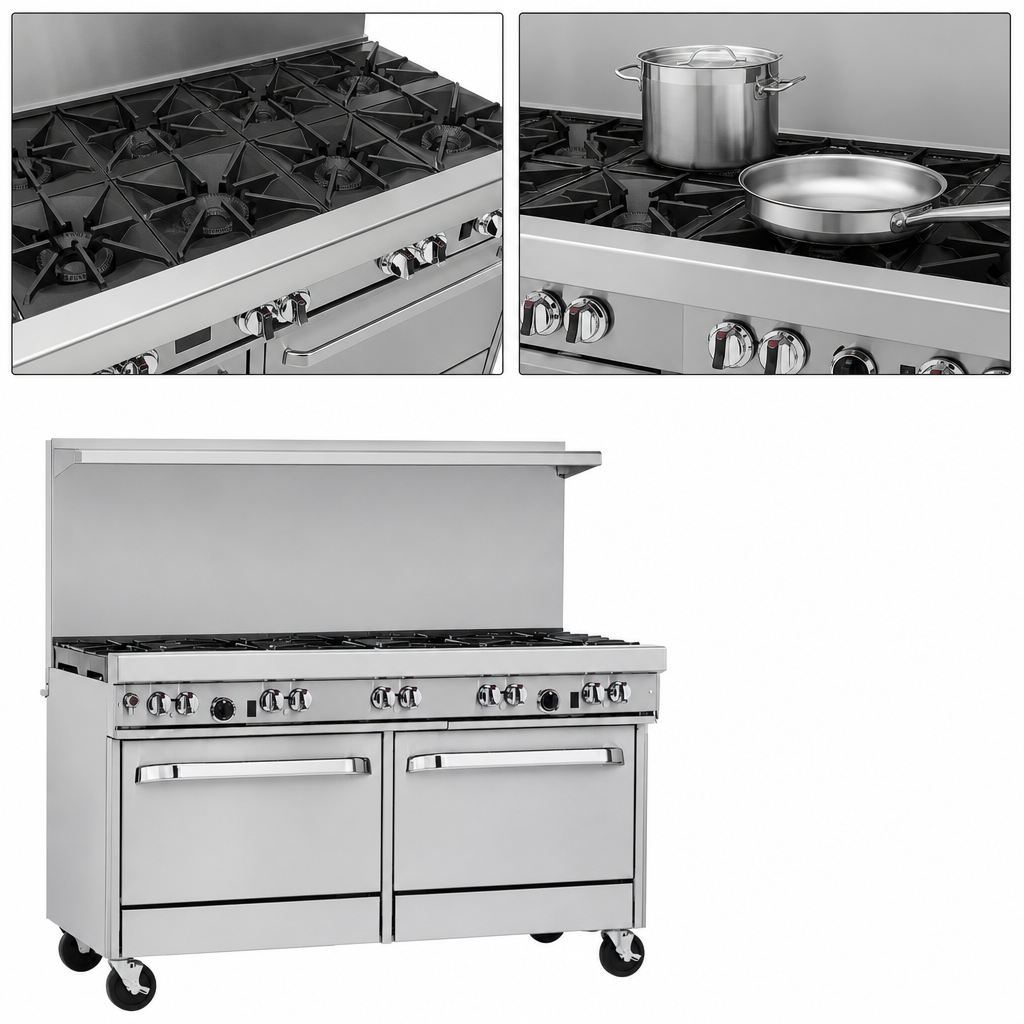

- Expansive 27"-deep cooking surface with four removable cast-iron grates that accommodate up to 14" stock pots.
- Stainless steel front, sides, 4" front rail & 22.5" flue riser shelf—easy to clean and built to withstand daily abuse.
- Front-mounted shut-off valve and factory-installed ¾" regulator for quick, technician-friendly installations.
- Two open stainless cabinets provide high-capacity pan and tool storage; optional doors available at no charge.
- 6" adjustable stainless steel legs—level the unit on any kitchen floor.
- Standing pilots for instant ignition; battery-spark upgrade available.
- CSA & NSF listed for gas safety and sanitation compliance.
- Backed by Southbend’s 1-year parts & labor warranty.
At-a-Glance Specifications
| Cooking width | 60 ¾" (1543 mm) |
|---|---|
| Total BTU | 330,000 BTU/hr (NAT) • 240,000 BTU/hr (LP) |
| Burners | 10 × 33,000 BTU star/sauté, cast-iron |
| Base type | Dual stainless cabinet (open), 26" W × 26 ½" D storage each |
| Cooking surface depth | 27" |
| Cook-top height | 37" |
| Overall height (with riser) | ≈ 59 ½" |
| Gas connection | ¾" NPT, left rear (7" W.C. NAT • 11" W.C. LP) |
| Construction | Stainless front/sides/shelf, cast-iron grates & burners |
| Certifications | CSA Flame, CSA Sanitation, NSF |
| Warranty | 1-year parts & labor |
Popular Factory Options
- 5" or 10" low-profile flue riser
- Flame-failure safety system
- Rear step-up or split-burner configurations
- Hot-top plates, griddle or charbroiler sections
- Swivel casters with front locks
- Battery spark ignition for open tops
Contact us for pricing and lead times on factory-installed options.
Simple Installation & Service
- Ships fully assembled with regulator—just connect gas and level the legs.
- Front service panel and removable drip trays speed daily cleaning.
- Southbend’s nationwide authorized service network keeps downtime to a minimum.
