Southbend (Middleby) 4603CC-7L Ultimate Gas Ranges
Description

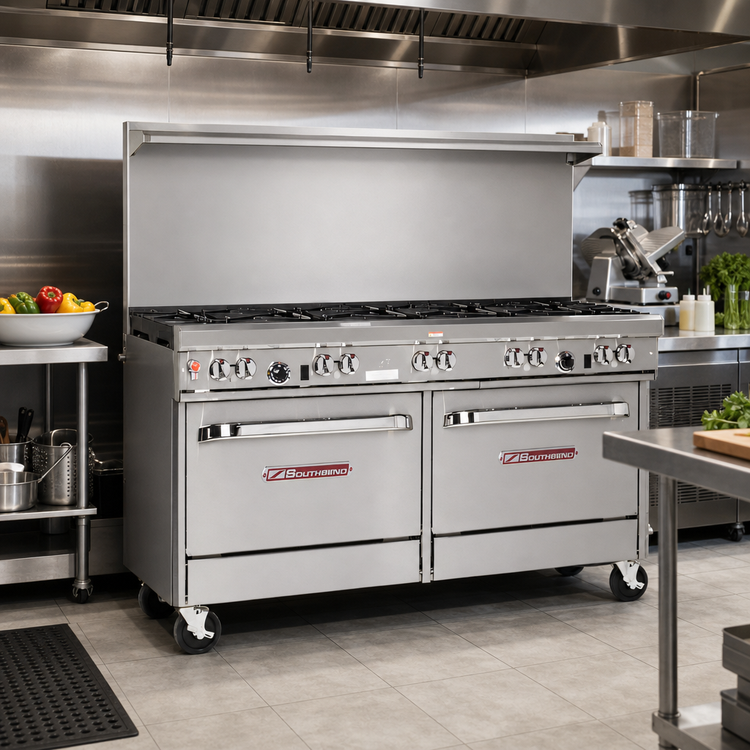

Southbend Ultimate 60" Gas Restaurant Range
4 Star/Sauté + 4 Pyromax Burners • Double Cabinet Base • 292,000 BTUWhen every ticket counts, Southbend’s Ultimate Series delivers. This 60-inch gas range pairs lightning-fast Pyromax power with the legendary control of star/sauté burners, all on an easy-to-clean stainless-steel chassis that’s built for round-the-clock service.
Why Kitchens Choose the Ultimate Range

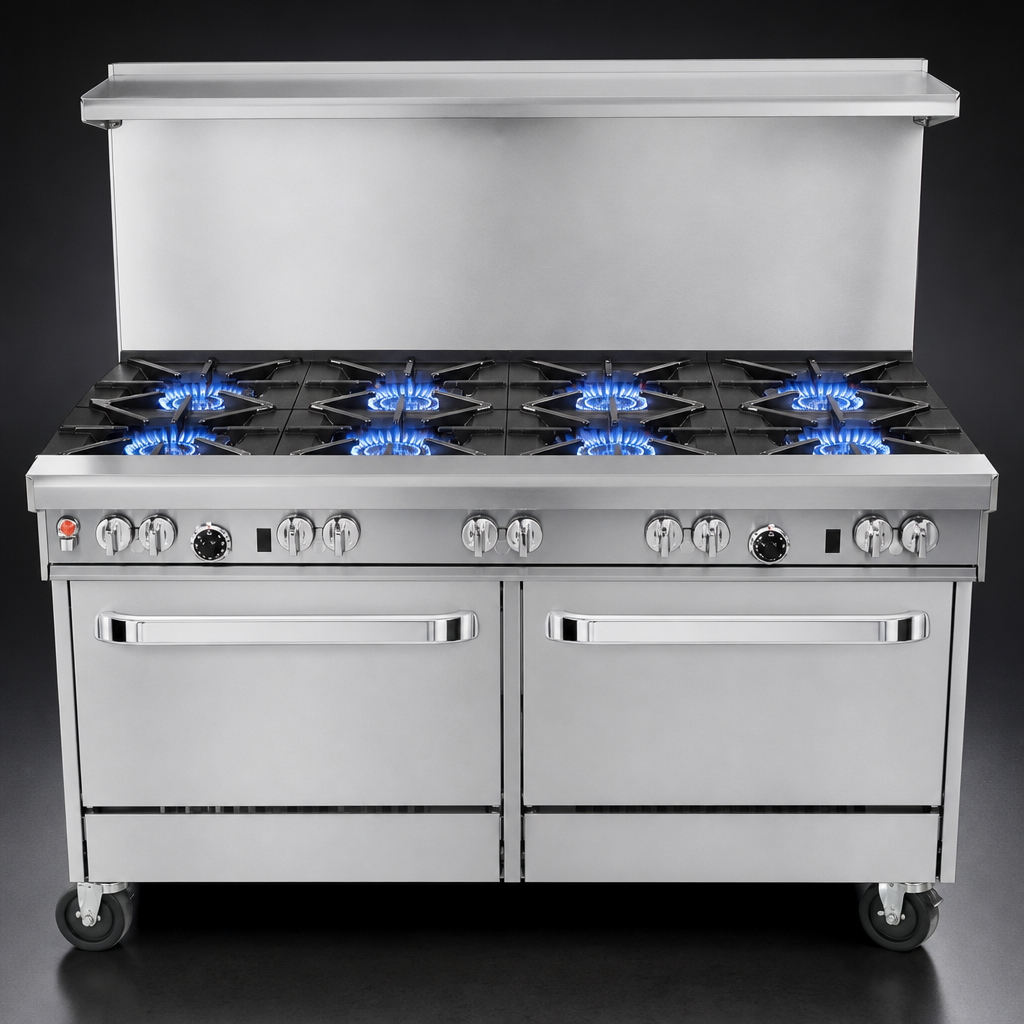

- Blistering Output – 292,000 BTU total. 40 kBTU Pyromax burners on the left tackle high-heat searing & stockpots, while 33 kBTU star/sauté burners give even, edge-to-edge flame for sautéing and pan work.
- Heavy-duty, clog-free cast iron burners. Patented three-piece Pyromax design with built-in drip ring for quick cleaning and maximum uptime.
- Full-width, 27" deep cook surface. Removable cast-iron grates accept up to 14" stock pots in the rear row.

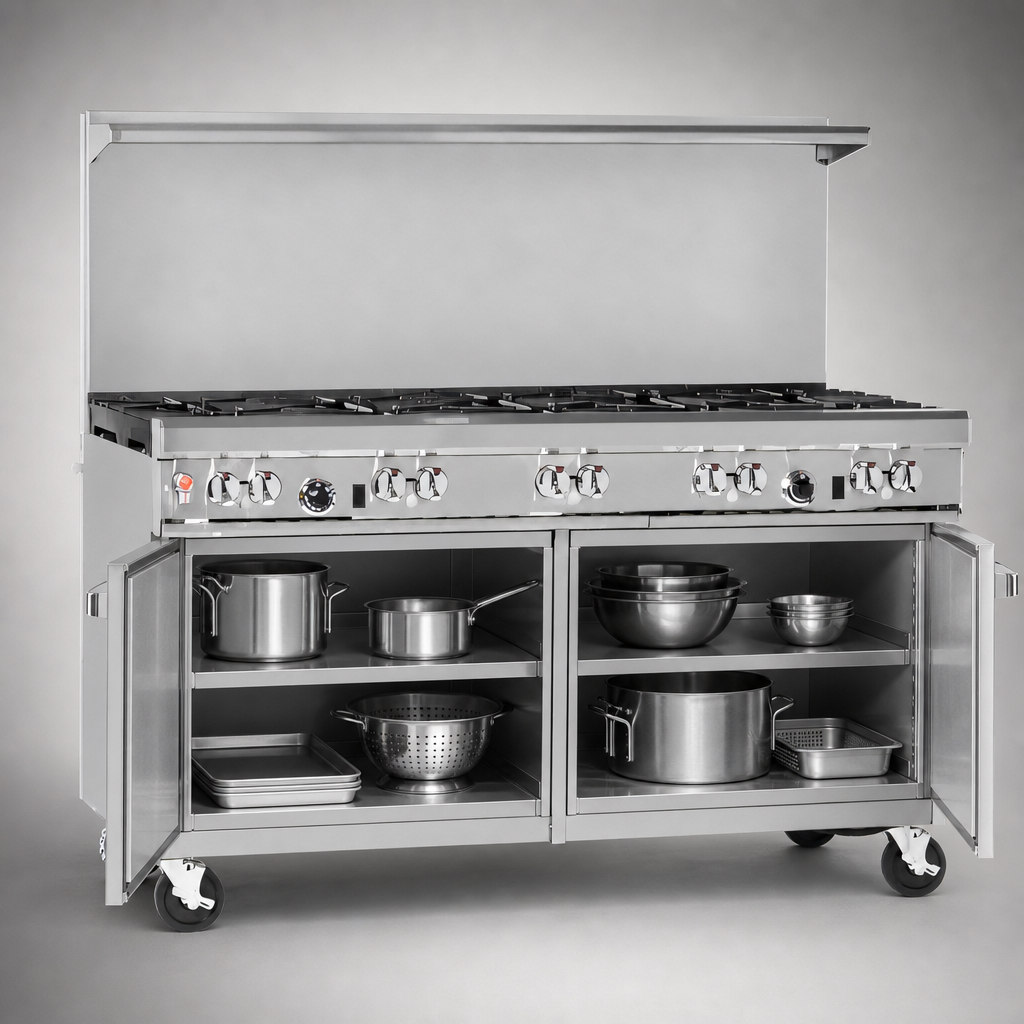

- Double stainless cabinet bases. Keep hotel pans, sheet trays and smallwares right where you cook; optional doors available at no charge.
- Front-mounted manual gas shut-off for fast, one-touch safety control of the entire range.
- 22.5" flue riser with integrated shelf adds convenient staging for spices, pans or plating.
- Built for the long haul. Stainless front, sides & shelf, 6" adjustable legs, battery-spark ignition and standing pilots on open burners.
- Certified to CSA & NSF standards and backed by a 1-year parts & labor warranty.
At-a-Glance Specs
| Model | Ultimate 60" – Custom Burner Configuration (460-CC style) |
|---|---|
| External Width | 60 3⁄4" (1543 mm) |
| Depth | 34" (864 mm) |
| Cooking-surface Height | 37" (940 mm) |
| Overall Height (with riser) | ~59 1⁄2" |
| Burners | (4) 33 kBTU Star/Sauté • (4) 40 kBTU Pyromax |
| Total BTU Input | 292,000 BTU/hr (Natural or LP – factory configured) |
| Gas Connection | 3/4" NPT (left or right, factory located) |
| Cook-top Grates | 4 removable, cast iron sections |
| Base | Two open stainless storage cabinets |
| Flue Riser | 22 1⁄2" with heavy-duty shelf |
| Clearances | 0" sides & rear to non-combustible, 10" to combustible |
| Approvals | CSA, NSF |
| Warranty | 1 year parts & labor (see full policy) |
Need a custom setup? Additional griddles, charbroilers, oven bases and flame-failure safety systems are available by special order.
Southbend Peace-of-Mind Warranty
All Ultimate Series ranges include a 1-year limited parts & labor warranty handled nationwide by Southbend-authorized technicians. Visit southbendnc.com/service-and-parts for full terms.
