Southbend (Middleby) 4603CC-6R Ultimate Gas Ranges
Description
Ultimate Series 60" Gas Restaurant Range
Model 460 • 311,000 BTU • Split-Top Power ConfigurationDesigned for chefs who refuse to compromise on speed or consistency, the Southbend Ultimate Series 60" range puts seven 33,000 BTU star/sauté burners together with two 40,000 BTU Pyromax™ power burners. Whether you are reducing a sauce, flash-searing proteins, or boiling stock in a 14" pot, every position on the cooktop hits full strength without stealing heat from its neighbor.
Why You’ll Love It
- Unmatched throughput – 311 k total BTU, instantly available via standing pilots.
- Chef-friendly layout – split top keeps the two Pyromax burners at the rear right so large stock pots stay clear of your sauté line.
- Lifetime-clog-free star burners deliver even flame distribution for perfect pan coverage.
- All-stainless exterior (front, sides, 4" rail & shelf) wipes clean fast and stands up to daily punishment.
- Front-mounted main gas shut-off for instant service safety.
- Dual cabinet base stores sheet pans, hotel pans and smallwares right where you need them.
- Factory regulator & battery spark ignition already installed—just connect and cook.
- CSA & NSF listed for peace of mind plus a 1-year parts & labor warranty.
Burner Configuration
- Left Section (Front & Rear): 4 × Star/Sauté burners @ 33,000 BTU each
- Right Front Section: 3 × Star/Sauté burners @ 33,000 BTU each
- Right Rear Section: 2 × Pyromax™ high-output burners @ 40,000 BTU each
- Total Output: 311,000 BTU/hr (Natural Gas)
Technical Specs
| Exterior Width | 60 3⁄4 in (1543 mm) |
|---|---|
| Cooktop Depth | 27 in cooking surface on a 34 in overall depth |
| Cooktop Height | 37 in to burner grates |
| Flue Riser | 22 1⁄2 in riser with heavy-duty storage shelf |
| Base | 2 × stainless steel cabinets with adjustable 6 in legs |
| Gas Connection | ¾ in female NPT (factory regulator included) |

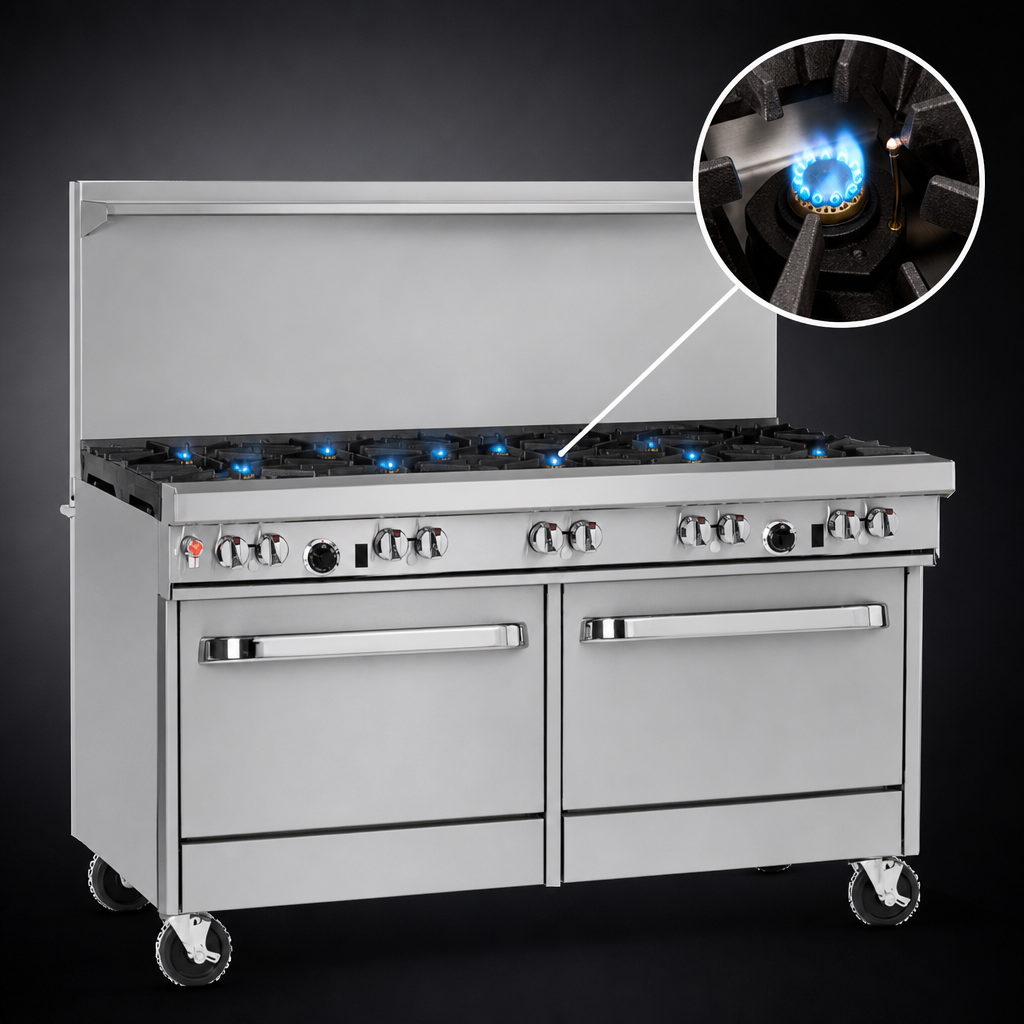

| Ignition | Standing pilots (open tops) + battery spark for optional bases |
| Construction | Stainless steel front, sides, rail, shelf and drip trays; removable cast-iron grates |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see Southbend limited warranty) |
Need flexible payments? Ask us about Middleby equipment financing and turn this range into an easy monthly expense.
