Southbend (Middleby) 4603CC-6L Ultimate Gas Ranges
Description
Southbend Ultimate 60" Gas Restaurant Range – 7 Star/Sauté & 2 Pyromax Burners, Cabinet Base
Model 60" Series • 311,000 BTU • CSA & NSF CertifiedBuilt for kitchens that refuse to compromise, the Southbend Ultimate 60" range delivers extreme burner power, rock-solid construction, and chef-friendly ergonomics—all in a low-maintenance stainless package that keeps crews productive and menus limitless.
Performance & Construction Highlights
- Heavy-duty 60 3⁄4" wide restaurant range with a 37" high cooking surface

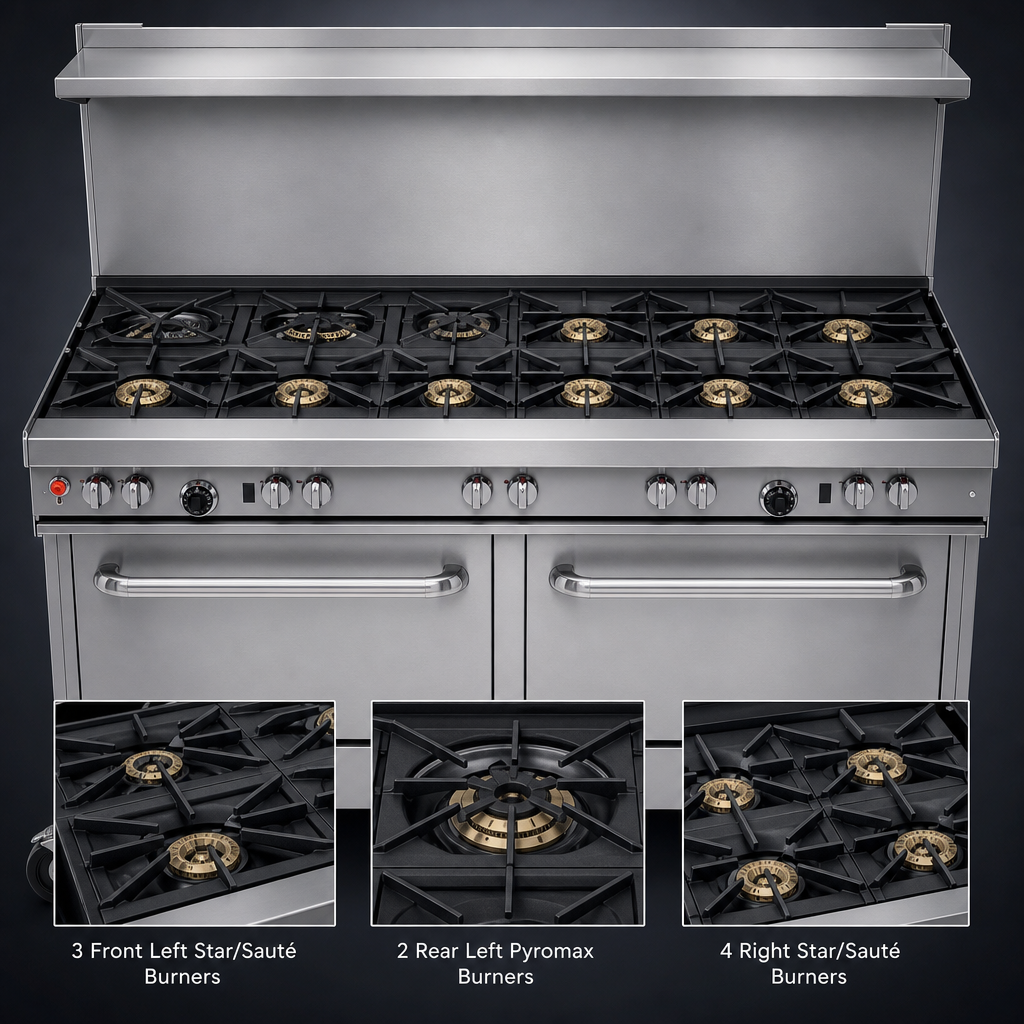

- High-efficiency burner layout (total 311,000 BTU):
- Front-left: 3 × 33,000 BTU cast-iron star/saute burners
- Rear-left: 2 × 40,000 BTU Pyromax™ high-output burners
- Right bank: 4 × 33,000 BTU cast-iron star/saute burners

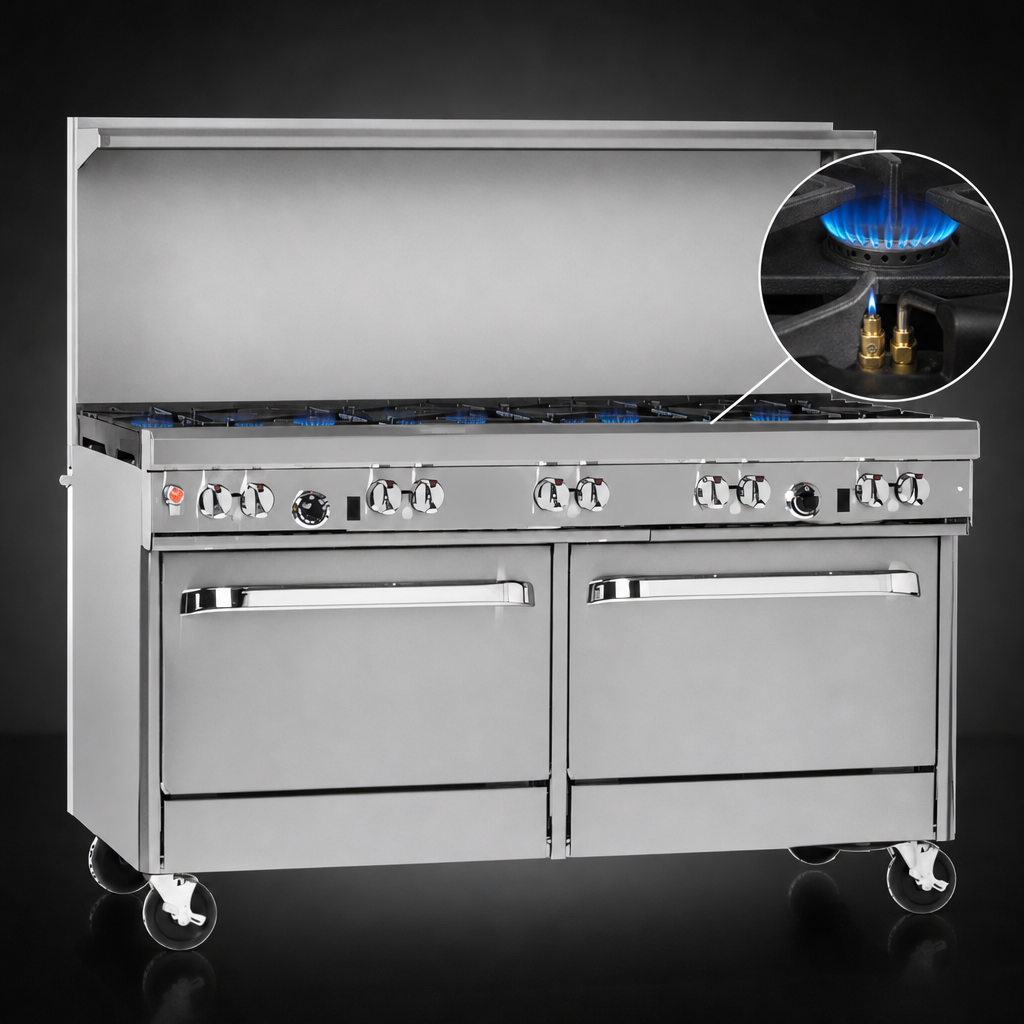

- Standing pilot ignition with front-located manual gas shut-off for the entire range
- Four removable cast-iron grate tops—rear section supports up to a 14" stock pot
- Stainless steel front, sides, 4" front rail, flue riser & shelf for rugged, easy-clean durability
- 22 1⁄2" flue riser with heavy-duty integrated shelf—ideal for pans & smallwares staging
- Two full-width stainless cabinet bases keep frequently used tools at arm’s reach
(optional no-charge doors available) - 6" adjustable stainless legs standard; field-install casters available
- Factory-installed 3⁄4" pressure regulator
- One-year limited parts & labor warranty backed by Southbend’s nationwide service network
Specifications
| Overall width | 60 3⁄4" (1543 mm) |
|---|---|
| Depth (front to back) | 34" (864 mm) |
| Cooking surface height | 37" (940 mm) |
| Flue riser height | 22 1⁄2" to shelf |
| Total BTU input | 311,000 BTU/hr (Natural Gas) |
| Burner rating | Star/Sauté 33,000 BTU • Pyromax 40,000 BTU |
| Gas connection | 3⁄4" NPT (rear, left or right side depending on burner layout) |
| Required inlet pressure | Natural Gas 7" W.C. (minimum) |
| Electrical | None – no power required |
| Certifications | CSA, NSF |
Install under a properly sized vent hood. For combustible floors, 6" legs (or casters) are required. Minimum clearance to combustibles: 10" sides & rear.
Warranty
Southbend covers this range with a one-year parts & labor warranty. Service is performed exclusively by authorized Southbend agencies for worry-free ownership.
