Southbend (Middleby) 4603CC-5R Ultimate Gas Ranges
Description

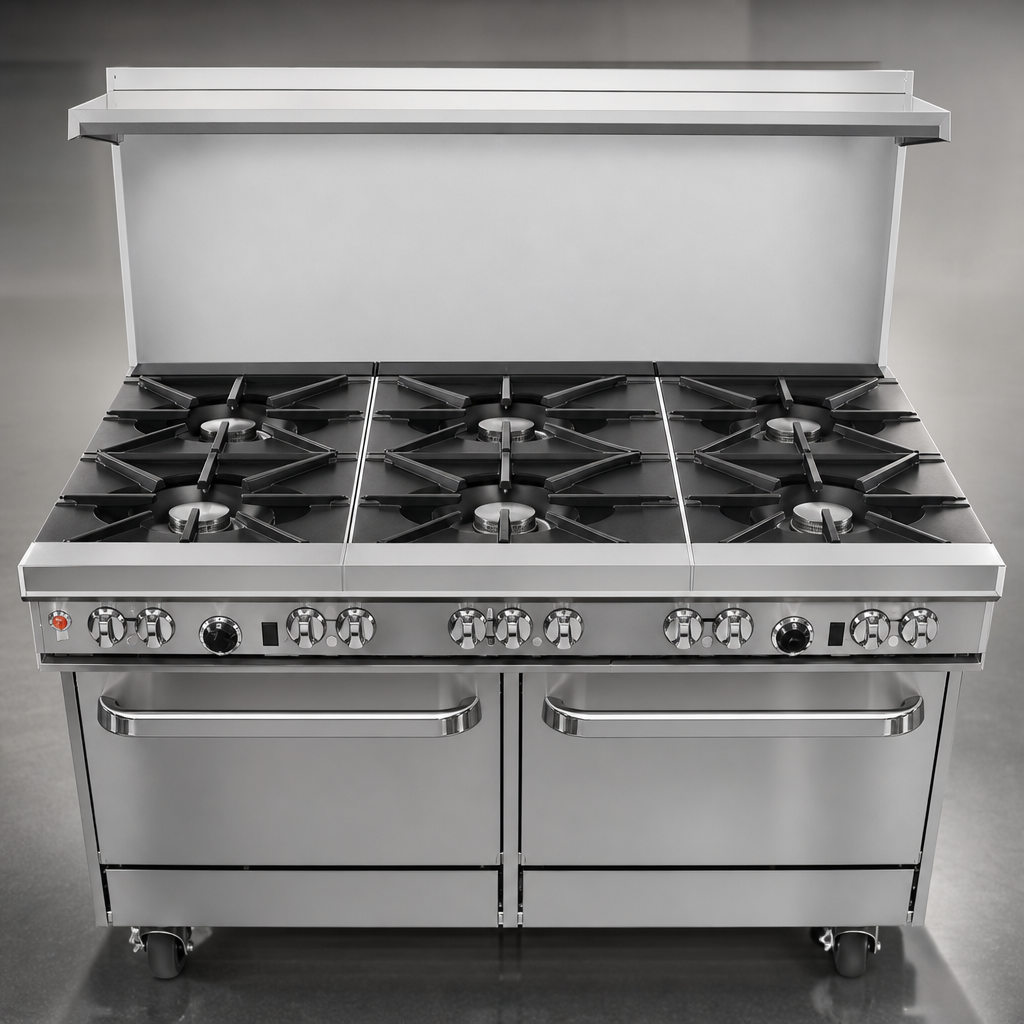

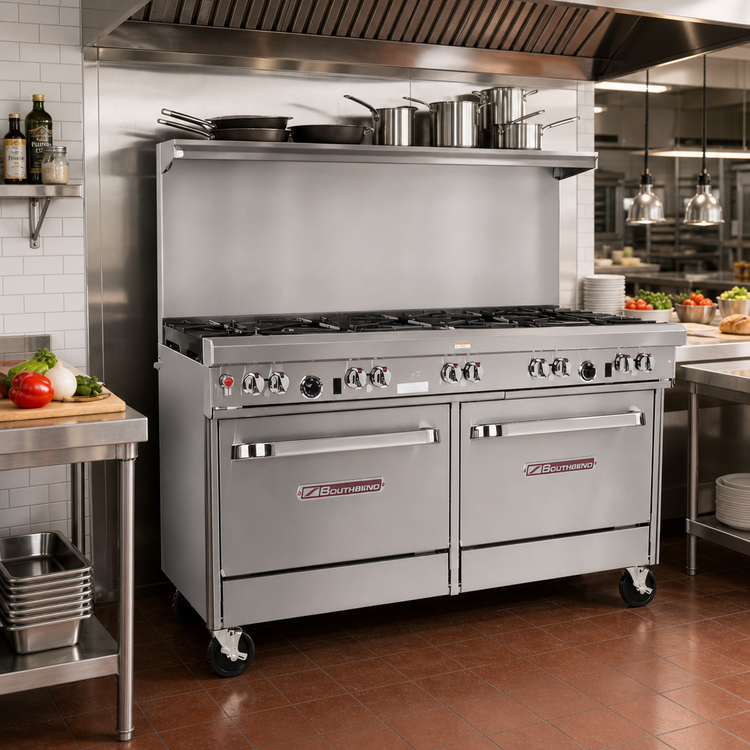

Southbend Ultimate 60" Gas Restaurant Range
3 Non-Clog • 2 Pyromax • 4 Star Burners | 311,000 BTU | Cabinet BaseBuilt for operators that demand maximum fire-power and durability, the Southbend Ultimate 60" Range delivers a blistering 311,000 BTU across nine open burners while providing full-width storage below. This factory-configured model blends ultra-reliable non-clog, high-output Pyromax, and even-flame star burners—giving chefs the freedom to sauté, simmer, sear, and rapid-boil on one rugged platform.
Key Performance Features
- Custom burner suite: 3 × 33 K non-clog (front right), 2 × 40 K Pyromax (rear right), 4 × 33 K star/saute (left).
- Total output: 311,000 BTU—ready for peak-hour volume.
- One-piece cast-iron grates accept stock pots up to 14" on the rear section.
- 22-1/2" flue riser with heavy-duty stainless shelf keeps plates and spices within reach.
- Full stainless steel front, sides, riser shelf & 6" adjustable legs stand up to daily abuse.
- Dual stainless cabinet bases store sheet pans, hotel pans, or smallwares—no ovens to heat.
- Front-mounted manual gas shut-off and factory-installed regulator streamline service.
- Standing pilots—no electrical hook-up required for the cooktop.
- CSA & NSF certified for gas safety and sanitation compliance.

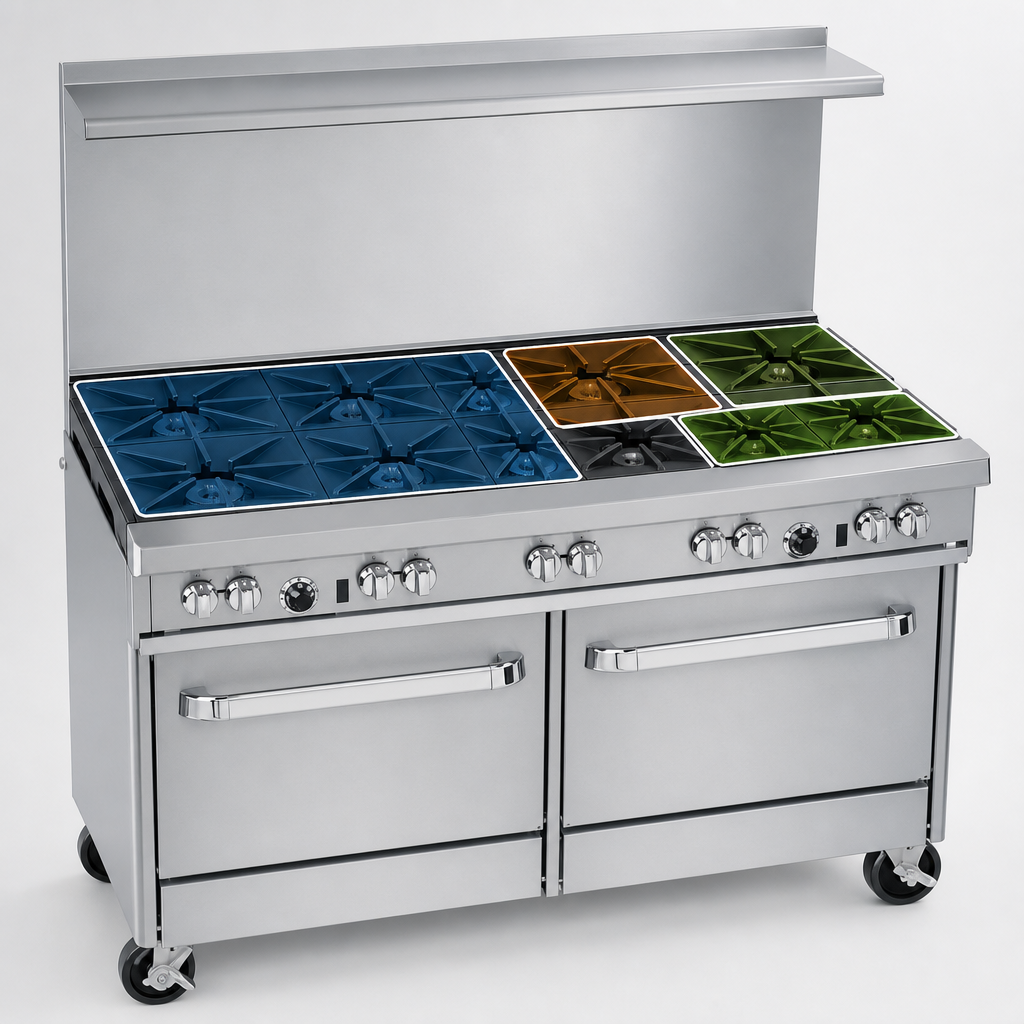

At-a-Glance Burner Layout
| Location | Burner Type | BTU / Burner | Qty | Subtotal BTU |
|---|---|---|---|---|
| Front-Right | Non-Clog Cast-Iron | 33,000 | 3 | 99,000 |
| Rear-Right | Pyromax High-Output | 40,000 | 2 | 80,000 |
| Left (Front & Rear) | Star / Sauté | 33,000 | 4 | 132,000 |
| Total | 311,000 BTU | |||
Construction & Utilities
- Overall size: 60-3/4" W × 34" D × 59-1/2" H (with riser); cooking surface height: 37".
- 27"-deep cooking surface with two full-width removable drip trays.
- 4" stainless plate rail protects controls and doubles as landing ledge.
- Gas: 3/4" rear connection; Natural Gas min. 7" W.C. (LP 11" W.C.).
- Factory-installed pressure regulator included.
Peace-of-Mind Warranty
Covered by Southbend’s 1-year parts & labor limited warranty. See manufacturer’s full warranty statement for terms and exclusions.
