Southbend (Middleby) 4603CC-5L Ultimate Gas Ranges
Description

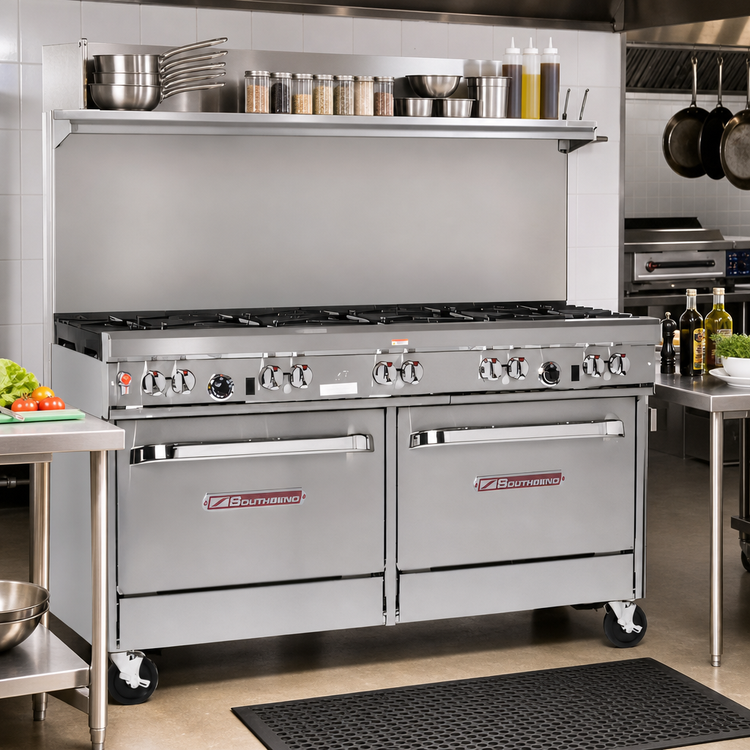

Southbend Ultimate 60" Gas Restaurant Range – 9-Burner, Dual-Cabinet Base
311,000 BTU | Model 460DD | CSA & NSF ListedHandle every ticket with confidence. The Ultimate Series combines Southbend’s legendary durability with a high-output, mixed-burner top that lets your line sear, sauté, simmer and power-boil at the same time—all in one rugged 60-inch footprint.

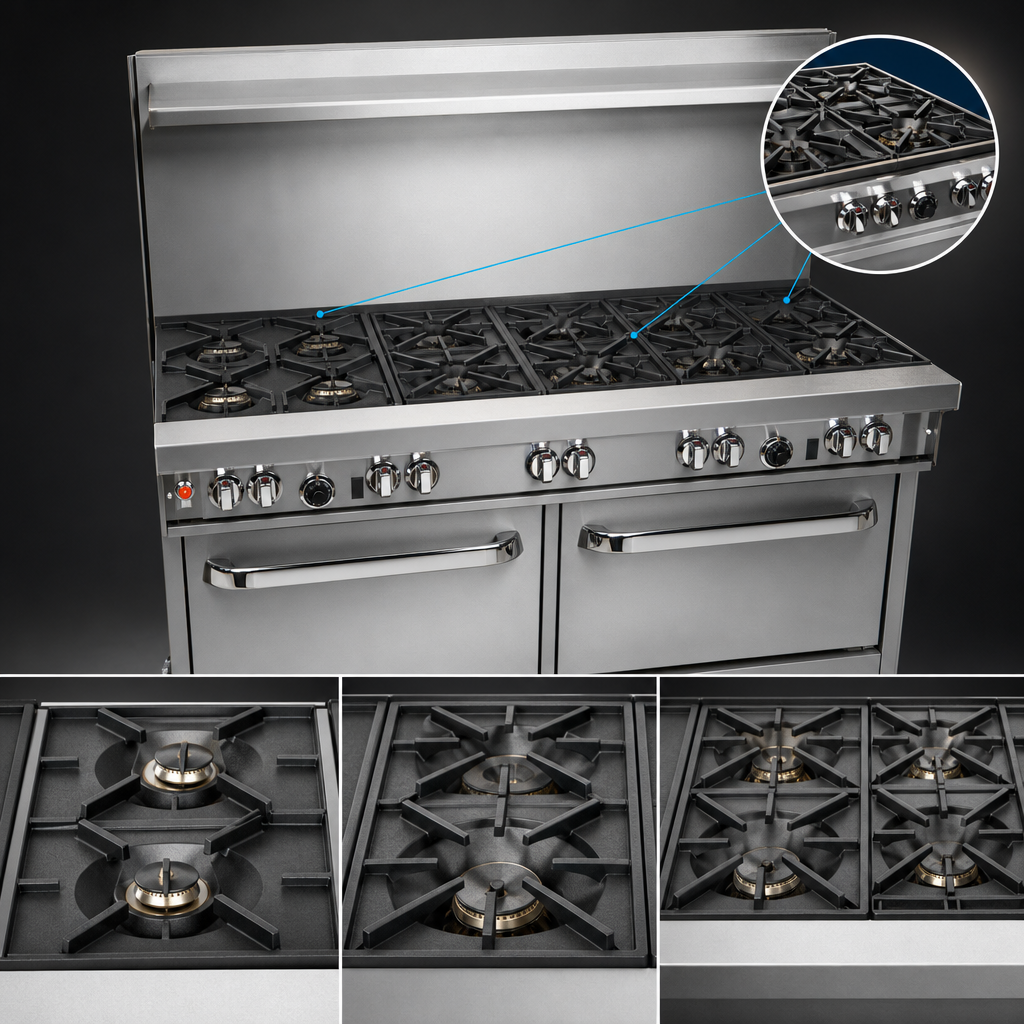

Top Configuration & Power
- Front-Left: (3) 33,000 BTU lifetime Non-Clog™ burners
- Rear-Left: (2) 40,000 BTU Pyromax® rapid-boil burners with built-in drip rings
- Right Side: (4) 33,000 BTU cast-iron Star/Sauté burners for even flame distribution
- Heavy-duty, removable cast-iron grates accept cookware up to 14" Ø

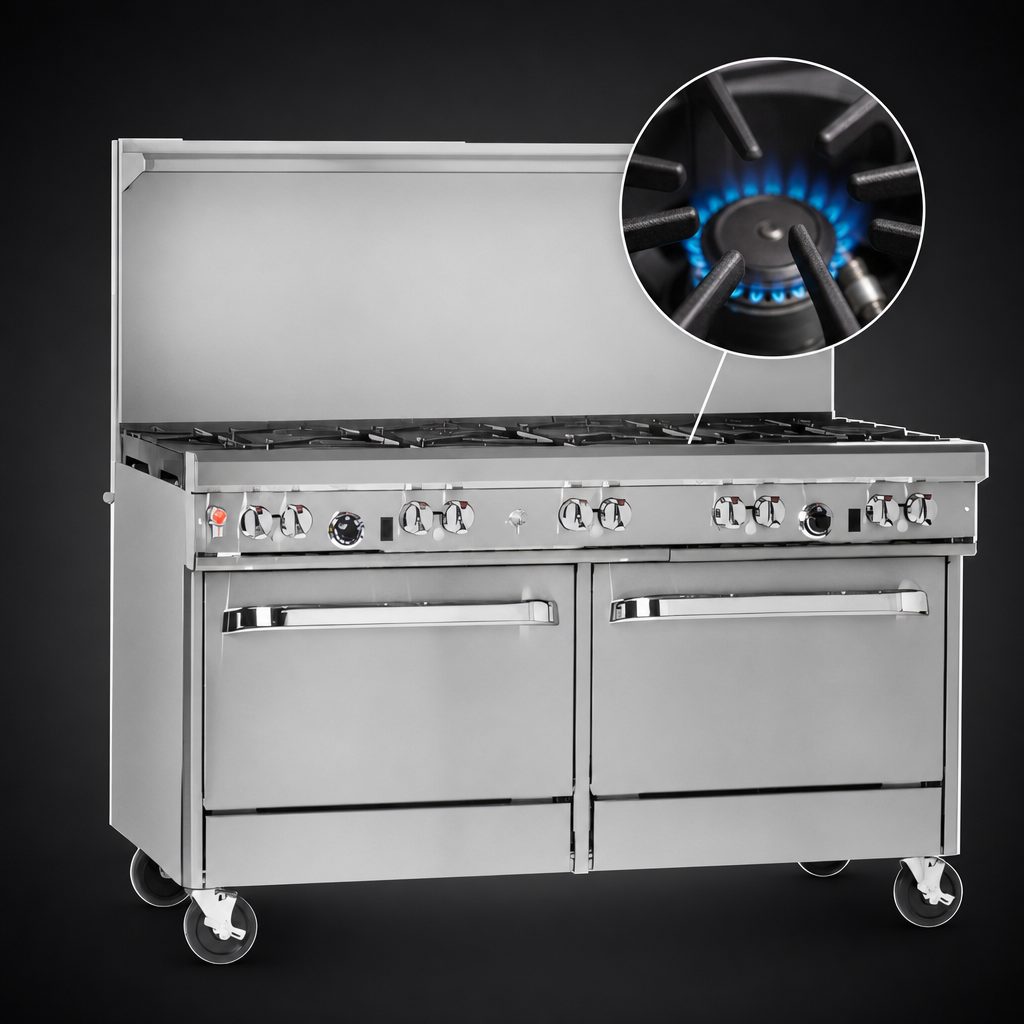

- Standing pilots for instant lighting plus front-mounted master gas shut-off
Built for the Busiest Kitchens
- All-stainless front, sides, 4" front rail and 22-1/2" flue riser with integrated shelf
- (2) full-width stainless cabinet bases keep hotel pans, lids and smallwares right on the line (doors included)
- 6" stainless steel adjustable legs; optional casters available
- Two removable one-piece drip trays speed nightly clean-up
- Factory-installed gas pressure regulator; 3/4" rear gas connection
Performance Specs
| Total Input | 311,000 BTU/hr (Natural Gas) |
|---|---|
| Burner Breakdown |
3 × 33 kBTU Non-Clog 2 × 40 kBTU Pyromax 4 × 33 kBTU Star/Sauté |
| Dimensions | 60.75" W × 34" D × 37" H cooking surface (≈59.5" overall to top of flue shelf) |
| Cooking Surface Depth | 27" |
| Gas Inlet | 3/4" NPT – 7" W.C. min. (Natural) |
| Certifications | CSA Flame, CSA Sanitation, NSF |
| Warranty | 1-year limited parts & labor |
Looking for a custom layout? The Ultimate Series can be ordered with griddles, charbroilers, or convection oven bases—contact us for a tailored quote.
