Southbend (Middleby) 4603CC-4TR Ultimate Gas Ranges
Description
Southbend “Ultimate” 60" Gas Restaurant Range
48" Thermostatic Griddle • 2 Star/Sauté Burners • Dual Stainless CabinetsBuilt for kitchens that demand relentless performance and rock-solid reliability, the Southbend Ultimate 60" Range (146,000 BTU) delivers a powerful mix of high-output star burners and a full-width thermostatic griddle — all wrapped in a heavy-gauge stainless body that is engineered for the busiest commercial lines.
Why This Range Rocks
- Ultimate versatility – 48" of griddle space for burgers, breakfast or searing, plus two 33 kBTU star burners for sauté and stock-pot work.
- Even heat every time – 1" polished steel griddle plate paired with precise thermostatic controls (snap-action) for consistent zone cooking.
- Rugged star burners – Cast-iron design spreads flame evenly across pan bottoms and is rated clog-free for life.
- Stainless storage base – Two full-width cabinets keep sheet pans, hotel pans and utensils right where you need them (doors available at no extra charge).
- Chef-friendly details – 4" deep front rail, front-mounted ¾" gas shut-off, and extra-wide drip trays for fast clean-up.
- Ready for real life – cCSAus, CSA Flame, CSA Star & NSF certifications plus a factory-installed regulator and 1-year parts & labor warranty.
At-a-Glance Specs
| Overall width | 60.75" / 1543 mm |
|---|---|
| Overall depth | 34" / 864 mm |
| Height to cooking surface | 37" / 940 mm (6" adjustable legs) |
| Flue riser | 22.5" high with heavy-duty shelf |
| Open burners | 2 × 33,000 BTU star/sauté (cast iron) |

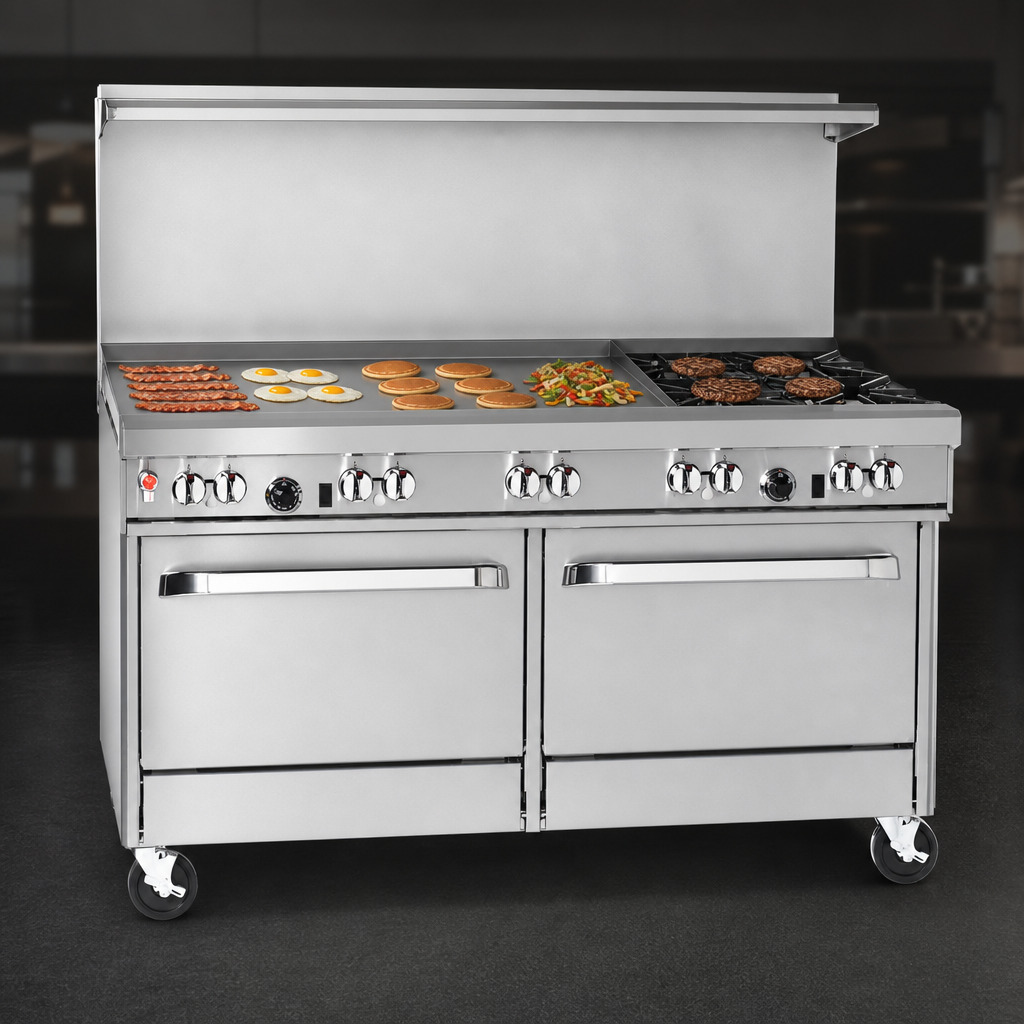

| Griddle | 48" W × 27" D, 1" thick polished steel, thermostatic |
| Cabinet base | 2 stainless cabinets, center-opening doors (no-charge option) |
| Total input | 146,000 BTU/hr (natural gas) |
| Gas connection | ¾" NPT, rear (7" W.C. minimum inlet pressure NG) |
| Construction | Stainless front, sides, shelf & rail; removable cast-iron grates; two-piece drip tray |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year limited parts & labor |
Popular Factory Options (sold separately)
- Swivel casters (front locking)
- ¾" quick-disconnect hose & restraining kit (3–5 ft)
- 10" or 5" flue riser (in place of 22.5")
- Cabinet doors (swing or hinged)
- Rear step-up burner set or hot-top plates
Peace-of-Mind Coverage
All Ultimate Series ranges include a one-year, on-site parts & labor warranty when serviced by an authorized Southbend agency. Commercial installation only.
