Southbend (Middleby) 4603CC-4GR Ultimate Gas Ranges
Description
Ultimate 60" Gas Restaurant Range – 48" Griddle Right & 2 Star Burners
Southbend 460 Series | cCSAus • CSA Flame • CSA Star • NSFBuilt to handle the punishing pace of high-volume kitchens, the Southbend Ultimate Range packs heavy-duty performance into a rugged, all-stainless chassis. A massive 48" griddle plate teams up with two 33,000 BTU star/sauté burners, giving chefs the versatility to sear, sauté, grill or toast – all on one 60" platform while dry-storage cabinets keep sheet pans and smallwares right where you need them.
Top reasons operators love it

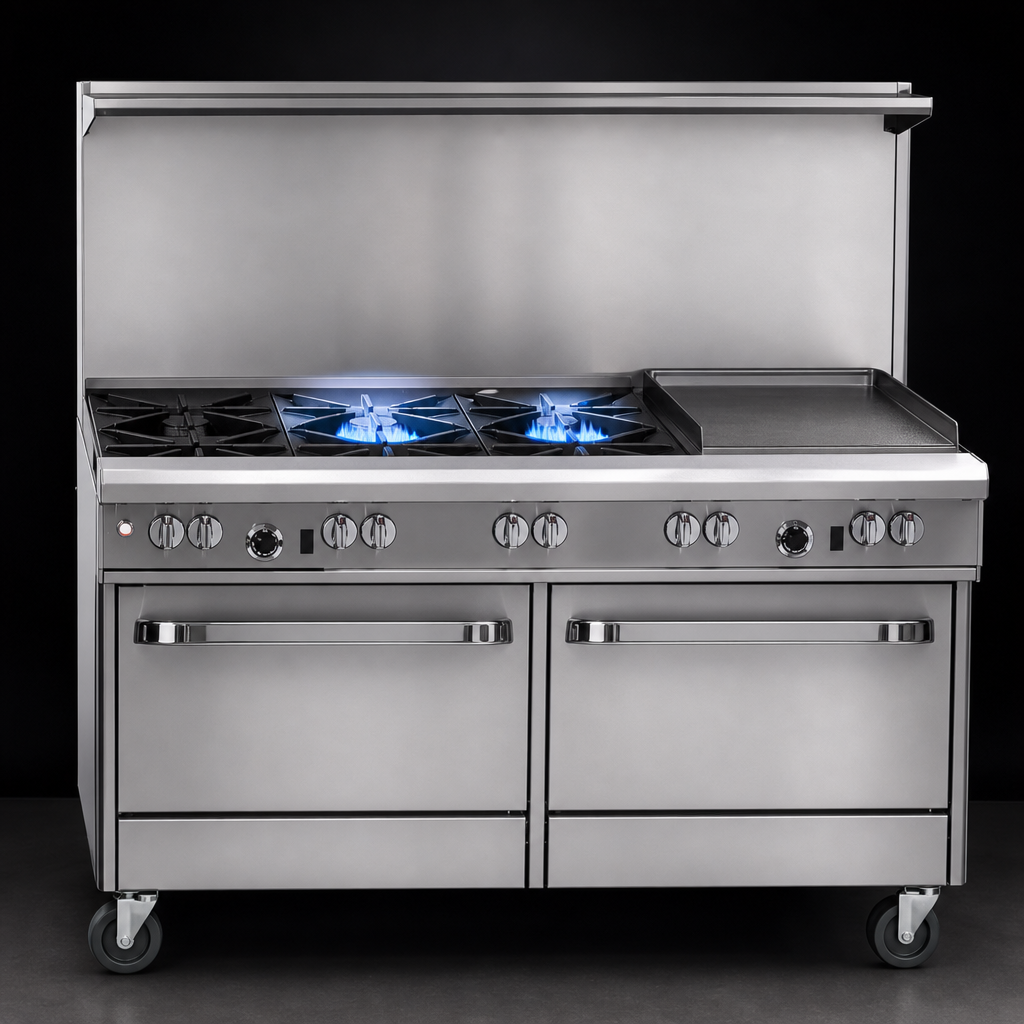

- 146,000 BTU total output – 2 × 33 k star burners + 80 k on the 48" griddle
- 1" thick, polished steel griddle plate for superior heat retention and easy clean-up
- Right-side griddle allows simultaneous sautéing on open top burners at left
- Two full stainless storage cabinets in the base (doors included at no charge)
- 22 ½" flue riser with integrated heavy-duty shelf for pans, seasonings or plating
- 4" deep stainless front rail doubles as a plating & prep landing
- Front-mounted manual gas shut-off and factory-installed pressure regulator
- Standing pilots on open burners for instant ignition; manual controls on griddle
- 6" stainless, adjustable legs standard (casters optional)
- One-year parts & labor warranty
At-a-glance specifications
| Model / Series | Ultimate 460 – Custom CG (Cabinet | Griddle) |
|---|---|
| Total BTU (Natural Gas) | 146,000 BTU/hr |
| Open Burners | 2 × 33,000 BTU cast-iron star/sauté burners, standing pilot |
| Griddle Plate | 48" W × 27" D × 1" thick, polished steel, manual valve control |
| Cooking Surface Height | 37" (to grates / griddle) |
| Overall Dimensions (W × D × H) | 60 ¾" × 34" × 59 ½" (to top of flue riser) |
| Base Configuration | Dual stainless cabinets with center-opening doors |
| Gas Connection | ¾" NPT female, 7" W.C. min. inlet pressure (Nat); factory regulator included |
| Construction | Stainless steel front, sides, 22 ½" flue shelf & front rail; removable cast-iron grates |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (commercial use) |
Minimum clearance from combustible surfaces: 10" rear & sides. Install under a properly sized, vented exhaust hood. Not for household use.
