Southbend (Middleby) 4603CC-3TR Ultimate Gas Ranges
Description

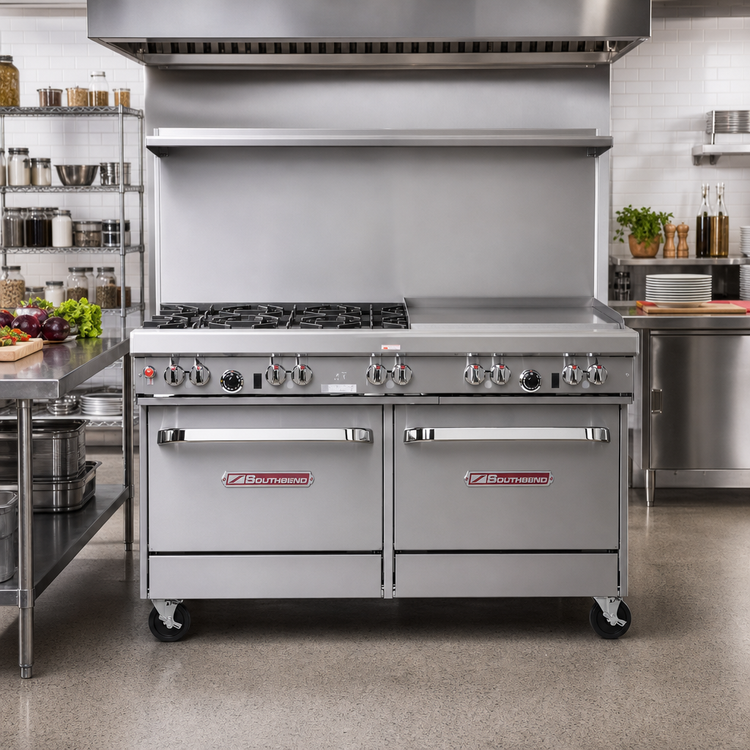

Southbend “Ultimate” 60" Restaurant Range – 4 Star/Sauté Burners & 36" Thermostatic Griddle
460 Series | Natural Gas | 196,000 BTUThe work-horse every high-volume kitchen craves. Southbend’s Ultimate 60" range marries four powerful star burners with a full 36" right-side thermostatic griddle, giving chefs unlimited versatility on a single, space-saving platform. Rugged stainless-steel construction, front-mounted gas shut-off, and a factory-installed regulator make installation fast and operation worry-free.
Why You’ll Love It

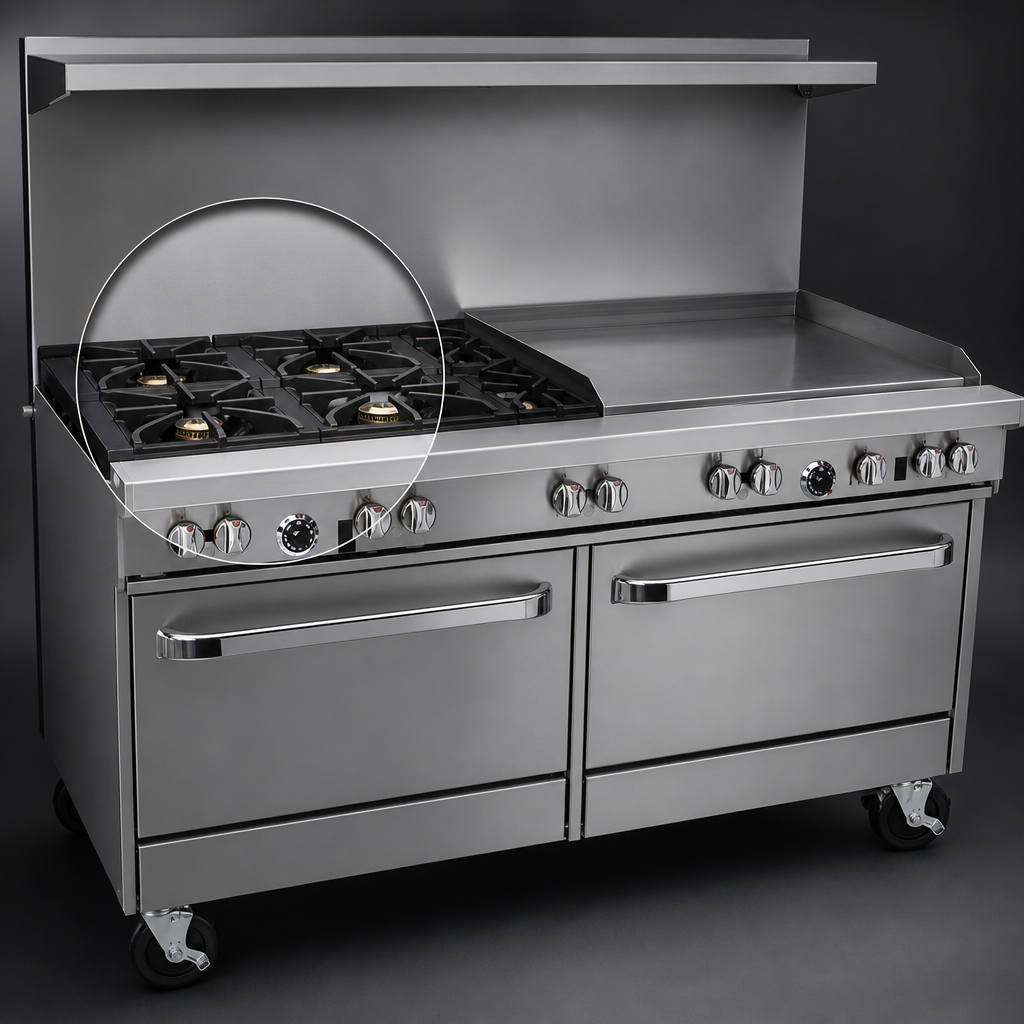

- All-purpose top. Four 33,000 BTU cast-iron star burners deliver even flame distribution for rapid sautéing, searing or stock production (rear grate fits 14" pots).

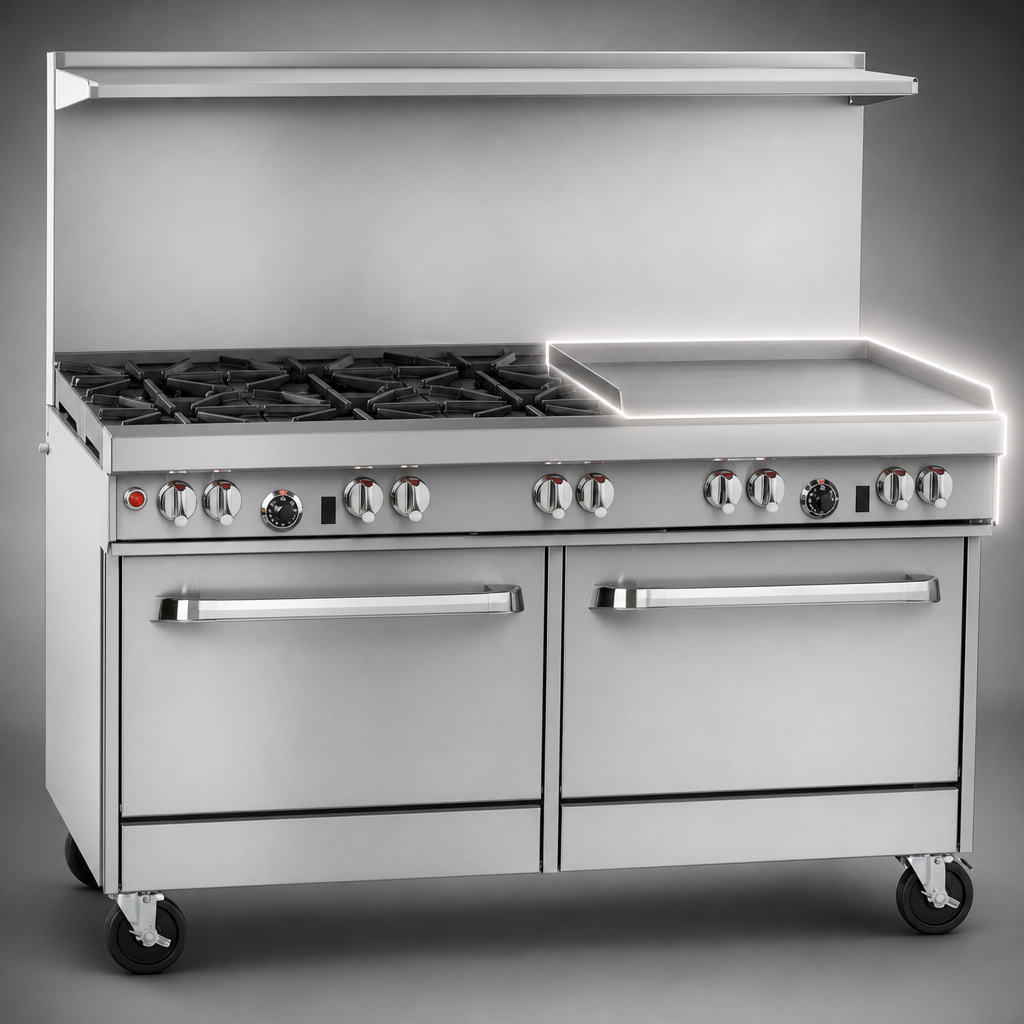

- Precision griddle. 36" wide, ½" thick polished-steel griddle plate with thermostatic controls for accurate zone cooking from breakfast to burgers.
- Storage where you need it. Two stainless cabinets keep sheet pans, smallwares and seasonings right at arm’s length. Doors available at no extra charge.
- Built for the long haul. Stainless front, sides, high-shelf and 4" front rail resist corrosion and wipe clean fast.
- Front manual gas shut-off and standing pilots for open burners simplify daily lighting and maintenance.
- Heavy-duty 22½" flue riser with integrated shelf—perfect for resting plates, seasoning pans or garnishes.
- Field-adjustable 6" stainless legs (casters optional) satisfy local code for combustible floors.
- Certifications that matter: cCSAus, CSA Flame, CSA Star & NSF listed for restaurant use.
At-a-Glance Specs
| Overall width | 60 3⁄4" |
|---|---|
| Overall depth | 34" |
| Cooking surface height | 37" |
| Flue riser height | 22 1⁄2" (with heavy-duty shelf) |
| Burners | 4 star/sauté, 33,000 BTU each |
| Griddle | 36" W × 27" D, ½" plate, thermostatic, 96,000 BTU |
| Total input | 196,000 BTU/hr (natural gas) |
| Gas connection | ¾" NPT, factory regulator set for 7" W.C. (NG) (LP kit available) |
| Base configuration | 2 stainless storage cabinets (doors optional, no-charge) |
| Shipping weight | Approx. 1,075 lb |
| Warranty | 1-Year parts & labor (see warranty tab for details) |
Install under a vented hood in accordance with local code. Minimum gas inlet pressure: 7" W.C. (NG) / 11" W.C. (LP).
Peace-of-Mind Warranty
Southbend backs every Ultimate series range with a one-year, on-site parts & labor warranty when serviced by an authorized Southbend agency.
